Installation

Provides the complete installation procedures and connection examples required for the device.

Fixing the bracket and the product

1. Secure the bracket tightly using the fixing screws at the location where the product will be mounted.



   Info

   • If installing the product on a concrete wall, drill a hole, insert a PVC anchor, and secure it with a fixing screw.

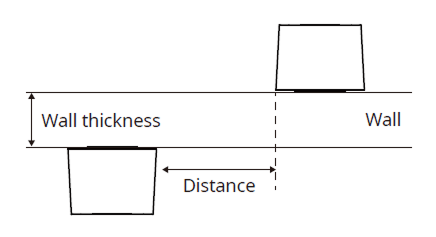

   • To avoid RF interference, a minimum separation distance must be maintained.



   Wall thickness	Distance
   100 mm	270 mm
   120 mm	250 mm
   150 mm	170 mm

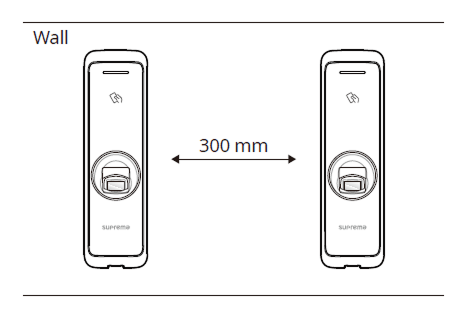

   • When using a mobile access card, install devices maintaining a minimum distance of 1 m between devices to avoid BLE interference.

   • Wireless electronic products must be used in the same manner as physical credentials and must transmit user data over short distances.

2. Mount the product on the fixed bracket.



3. Rotate the fixing screws to assemble the product with the bracket.



   Info

   When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

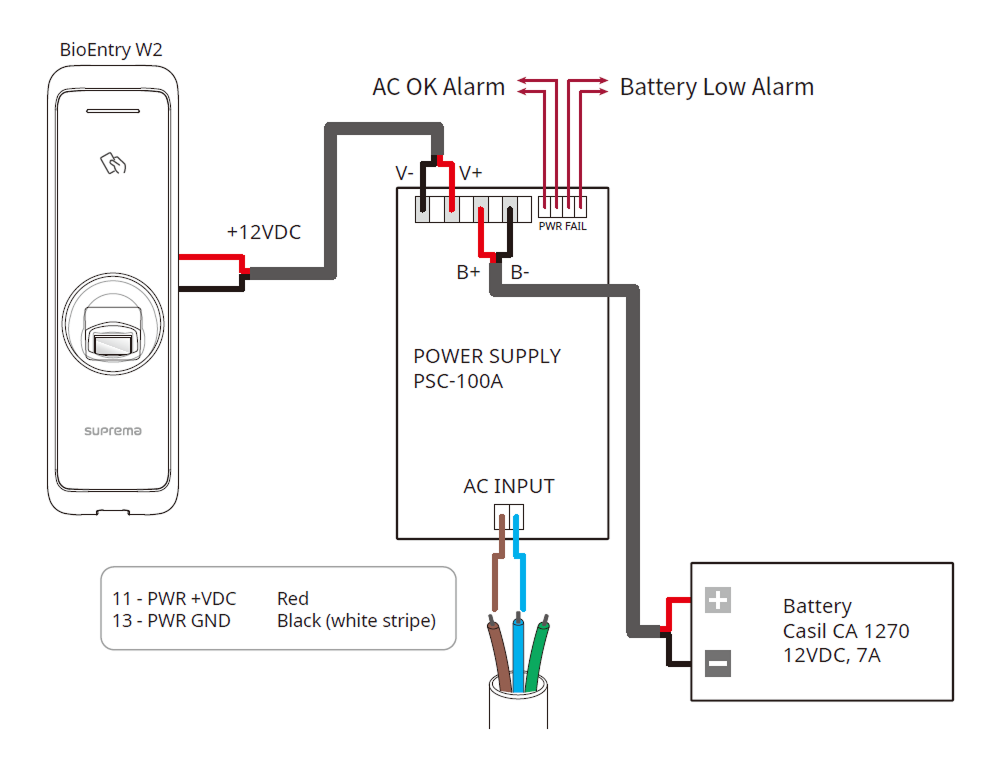

Power Supply Connection

Caution

• Listed Class 2 power unit shall be recommended to use.

• The power supply of the device must use an external 12VDC Listed Class 2 power supply or a UL294B PoE power supply.

• To satisfy ULC S319, connect the 'PSC-100A' power supply and the 'Casil CA 1270' battery.

• DO NOT connect the device to the DC power supply (or adapter) and PoE power supply at the same time.

• Use the IEC/EN 62368-1 approved power adapter that supports higher power consumption than the product. If you wish to connect and use another device to the power supply adapter, you should use an adapter with a current capacity which is the same or larger than the total power consumption required for the terminal and another device.

  • Refer to the Power in the product specifications for maximum current consumption specifications.

• Use a separate power supply for Secure I/O 2, the electric lock, and the product respectively. If connecting and using the power supply to these devices together, the devices may malfunction.

• DO NOT extend the length of power cable when using the power adapter.

• Alarm signals are transmitted via relay contacts through AC OK and battery low voltage status pins.

  Feature	Description	Relay status
  AC power confirmation	AC power is on	Short circuit
  	AC power is off	Open
  Battery low voltage status	When the battery voltage is below 11 V	Short circuit
  	When the battery voltage is above 11 V	Open

• An external power source is required to use the alarm signal feature. The maximum applied voltage is 30 V, and the maximum sink current is 1 A.

• PoE power must comply with National Electrical Code, ANSI / NFPA 70, Article 725.121, Class 2 and Class 3 circuit power requirements.

• 5e cable connections are the recommended minimum performance category. The performance category must match the transmission speed required at the installation site.

• The minimum conductor gauge that can be connected between PSE or power injector and PD is 26 AWG (0.13 mm2) for patch cables. For horizontal or riser cables, the minimum conductor gauge is 24 AWG (0.21 mm2).

• When providing power via PoE, UL294B or UL294 8th Edition must be complied with.

• Compliance with IEEE 802.3 (at or af) specifications does not count as part of this requirement.

Network Connection

TCP/IP

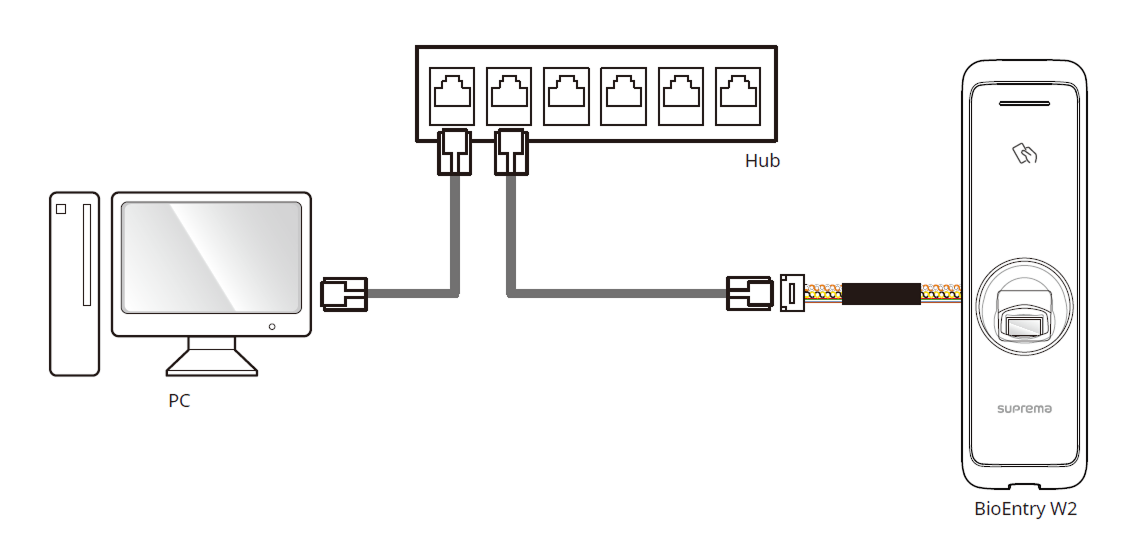

LAN connection (connecting to a hub)

You can connect the product to a hub using a general type CAT-5 cable.

Use a PSE hub to supply power via PoE.

LAN connection (connecting to a PC directly)

This device has an automatic MDI/MDIX function so that it can be connected to a PC directly using a normal straight type CAT-5 cable or a cross cable.

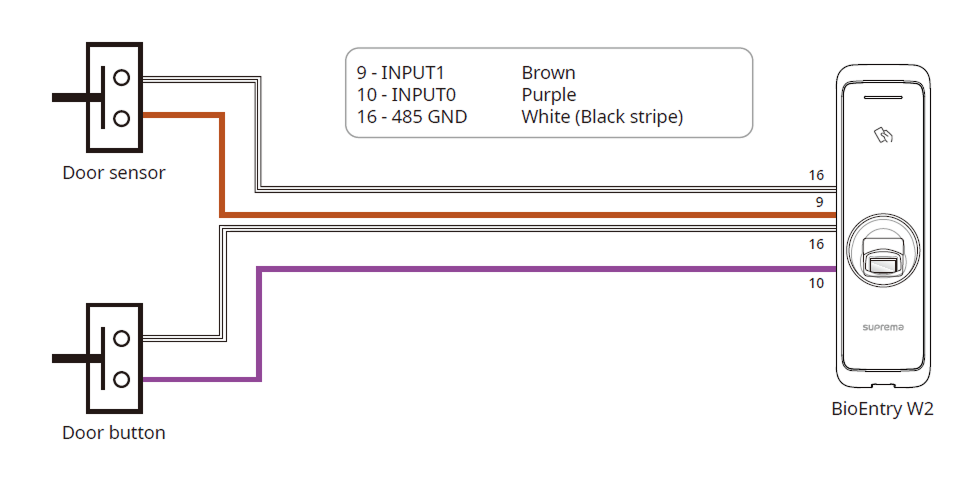

Input connection

Relay Connection

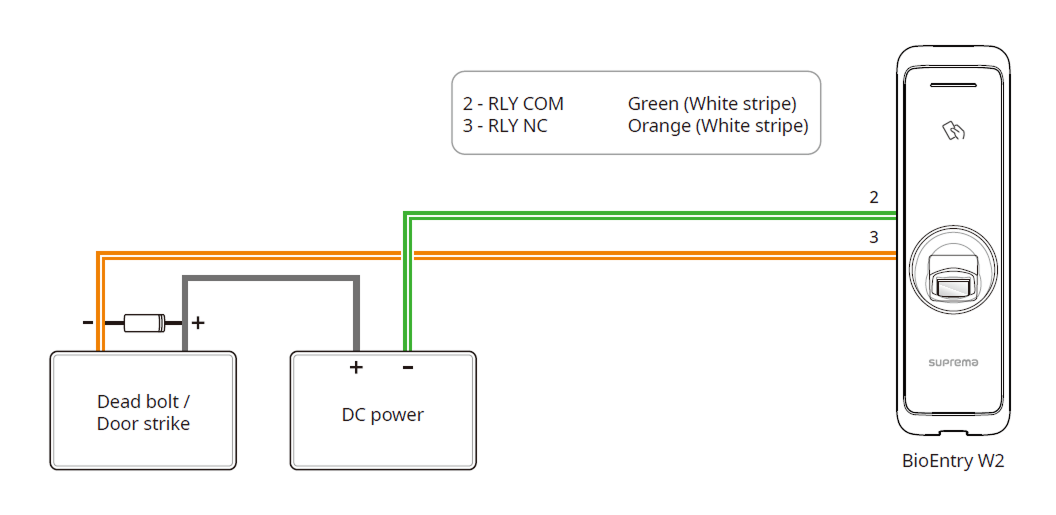

Fail Safe Lock

In order to use the Fail Safe Lock, connect N/C relay as shown in the figure below. There is normally a current flowing through the relay for the Fail Safe Lock. When the relay is activated, blocking the current flow, the door will open. If the power supply to the product is cut off due to a power failure or an external factor, the door will open.

Caution

• Install a diode at both sides of the door lock wire as shown in the figure to protect the relay from the reverse current, which occurs when the door lock operates.

• Use a separate power supply for the product and the door lock.

• Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended to use the internal relay of a reader to prevent any tampering attacks which can potentially trigger the door unlock. For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema’s Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door.

Info

Take caution of the installation direction of the diode. Install the diode close to the door lock.

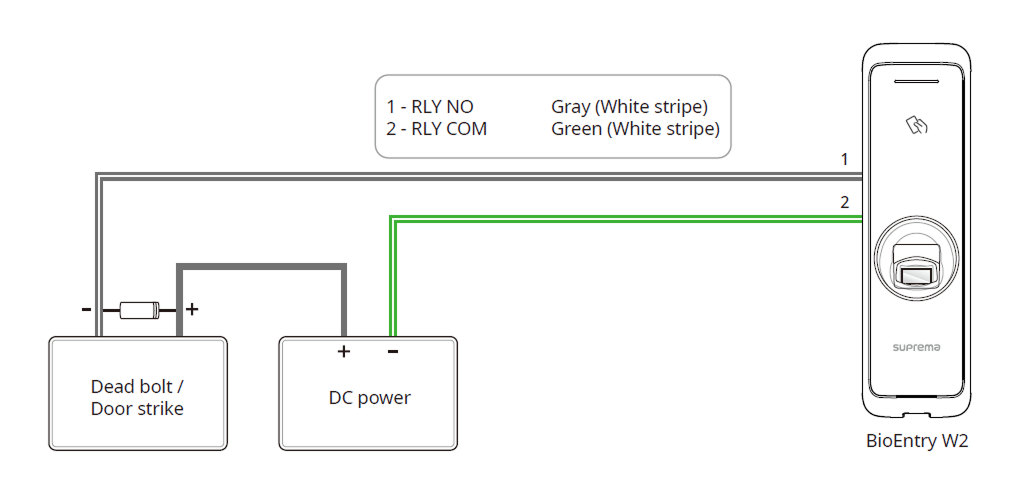

Fail Secure Lock

In order to use the Fail Secure Lock, connect N/O relay as shown in the figure below. There is normally no current flowing through the relay for the Fail Secure Lock. When the current flow is activated by the relay, the door will open. If the power supply to the product is cut off due to a power failure or an external factor, the door will lock.

Caution

• Install a diode at both sides of the door lock wire as shown in the figure to protect the relay from the reverse current, which occurs when the door lock operates.

• Use a separate power supply for the product and the door lock.

• Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended to use the internal relay of a reader to prevent any tampering attacks which can potentially trigger the door unlock. For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema’s Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door.

Info

Take caution of the installation direction of the diode. Install the diode close to the door lock.

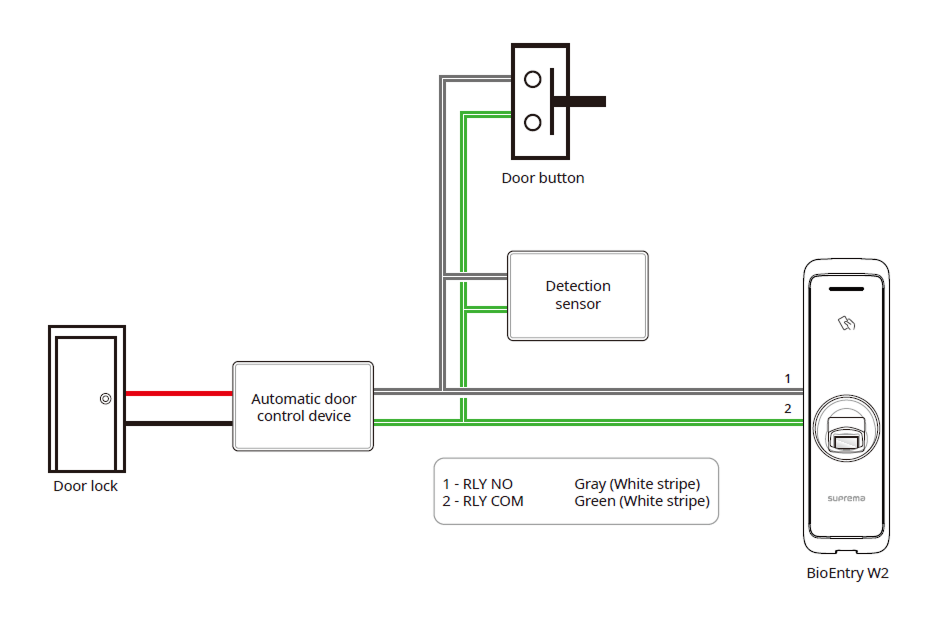

Automatic door connection

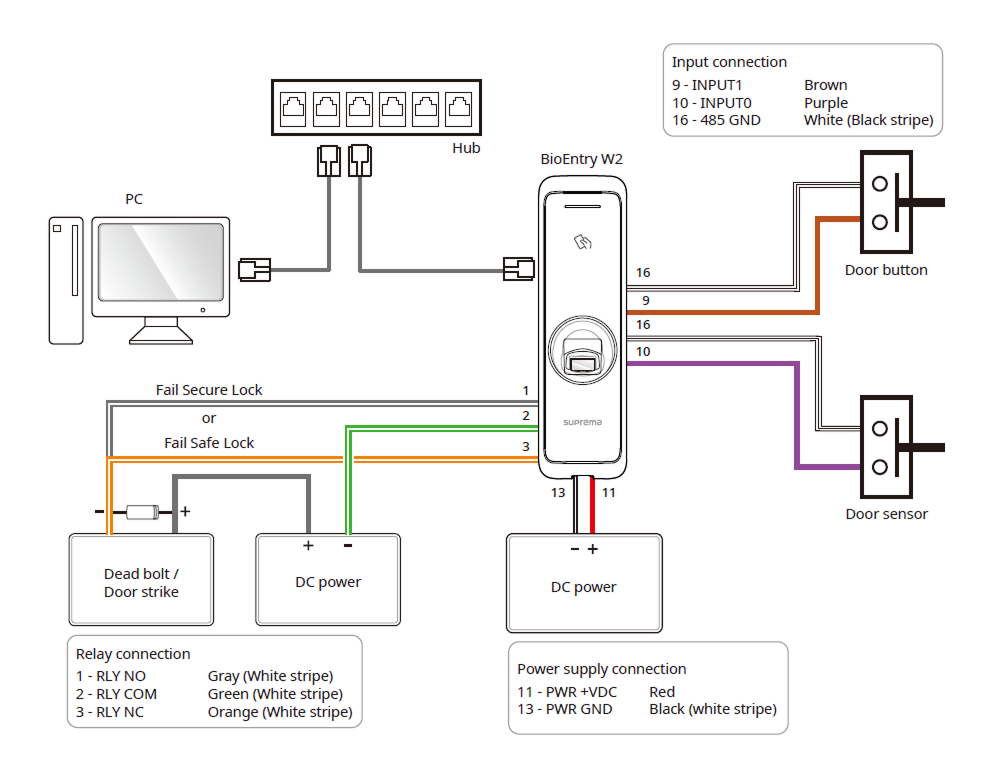

Connecting as a Standalone

The product can be connected to the door lock, door button, and door sensor directly without connecting a separate I/O device.

Caution

Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended to use the internal relay of a reader to prevent any tampering attacks which can potentially trigger the door unlock. For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema’s Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door.

Info

• The device can be used as a multi-door controller with the slave devices with the RS-485 cable. The slave devices are used as dummy readers and authentication is performed in the master device.

• If XPass or XPass 2 is connected to the master device, only card authentication can be used.

• The maximum number of slave devices available to connect varies according to the authentication method, number of users, and number of devices. Also note that the number of slave devices affects the authentication performance.

• Connect up to 31 slave devices to a master device. The bandwidth of RS-485 allows for up to 7 fingerprint authentication devices to be connected.

• For more information, contact the Suprema Technical Support Team.

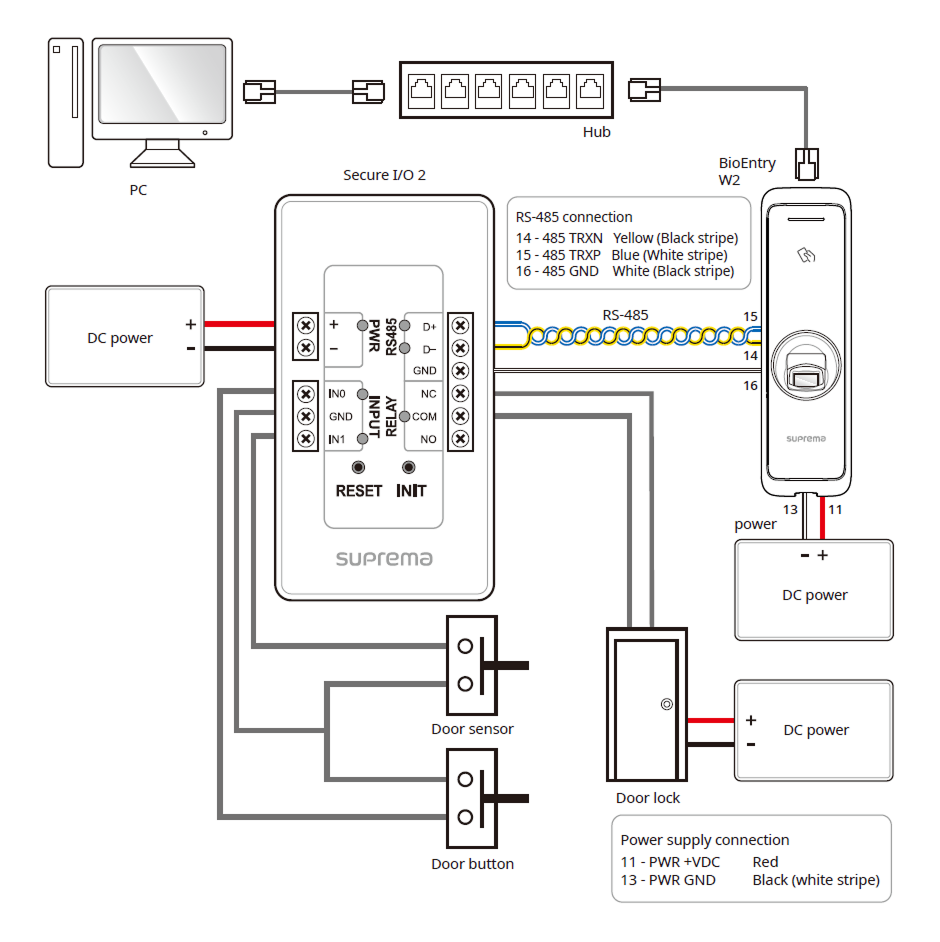

Connecting to Secure I/O 2

Secure I/O 2 is an I/O device, can be connected to the product with the RS-485 cable. Security can be maintained even if the connection between the product and Secure I/O 2 has been lost or the power supply to the product has been shut off due to external factors.

• Use an AWG24 twisted pair with a maximum length of 1.2 km for the RS-485 cable.

• It is recommended to use RS-485 cables with a characteristic impedance of 120 Ω.

• If connecting with a RS-485 daisy chain, connect the termination resistor (120 Ω) to both ends of the daisy chain connection. If connected to the middle line, the signal level becomes smaller and the communication performance will deteriorate. Make sure to connect it to both ends of the daisy chain connection.

Info

• The device can be used as a multi-door controller with the slave devices with the RS-485 cable. The slave devices are used as dummy readers and authentication is performed in the master device.

• If XPass or XPass 2 is connected to the master device, only card authentication can be used.

• The maximum number of slave devices available to connect varies according to the authentication method, number of users, and number of devices. Also note that the number of slave devices affects the authentication performance.

• Connect up to 31 slave devices to a master device. The bandwidth of RS-485 allows for up to 7 fingerprint authentication devices to be connected.

• For more information, contact the Suprema Technical Support Team.

Info

• This description of the Secure I/O 2 connection method has not been evaluated by UL294 standards.

Wiegand Connection

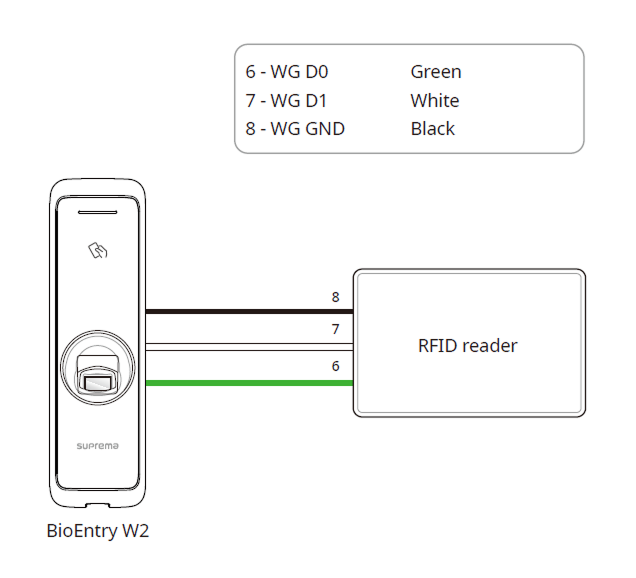

Used as a Wiegand input device.

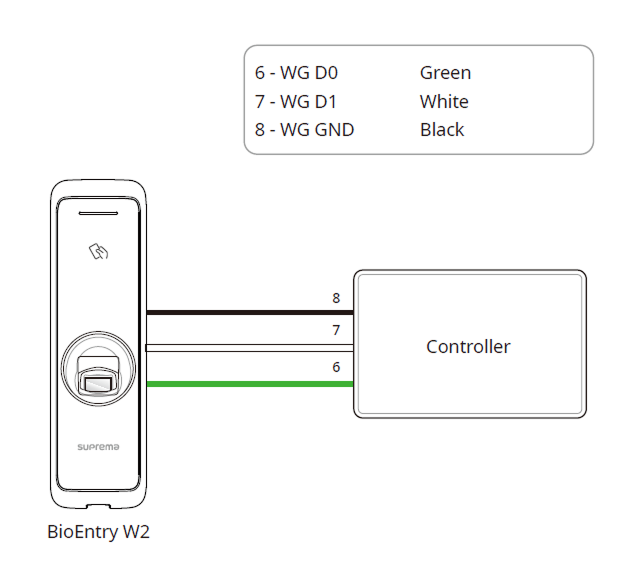

Used as a Wiegand output device.

Initialize Network Settings

Initialize the device's network settings.

1. Power on.

2. Press the reset button until the device automatically reboots.

3. Connect the device using the initialized network information.

   • TCP/IP Address: DHCP address assignment (if DHCP address assignment fails, will be set to 169.254.x.x).

   • Server Mode: Disable

   • RS-485: Default, 115200 bps

4. Change the TCP/IP or RS-485 information.

5. Check if the network information is correctly set after turning the power off and on.

Factory default

Delete all information stored on the device and initialize the settings.

1. Power on.

2. Quickly press the reset button three times.

3. Press the reset button once more when the device's LED blinks green.

Info

You can only use Factory Default when the root certificate is stored on the device.
