Getting Started

Provides initial procedures for getting started with the device.

Components

	Wall Bracket
Door Module	120 Ω Resistor

PVC Anchor x4	Fixing Screw x4	Spacer x4	Diode x4

Info

• Components may vary according to the installation environment.

Name and function of each part

Info

• Press the INIT button for more than 2 seconds after initializing the product linked to the device to connect it to another device.

• Press the RESET button to reboot the product.

• Refer to the LED status below when using Supervised Input.

  • Orange: Short Circuit

  • Red: Short

  • Green: On

  • Off: Off

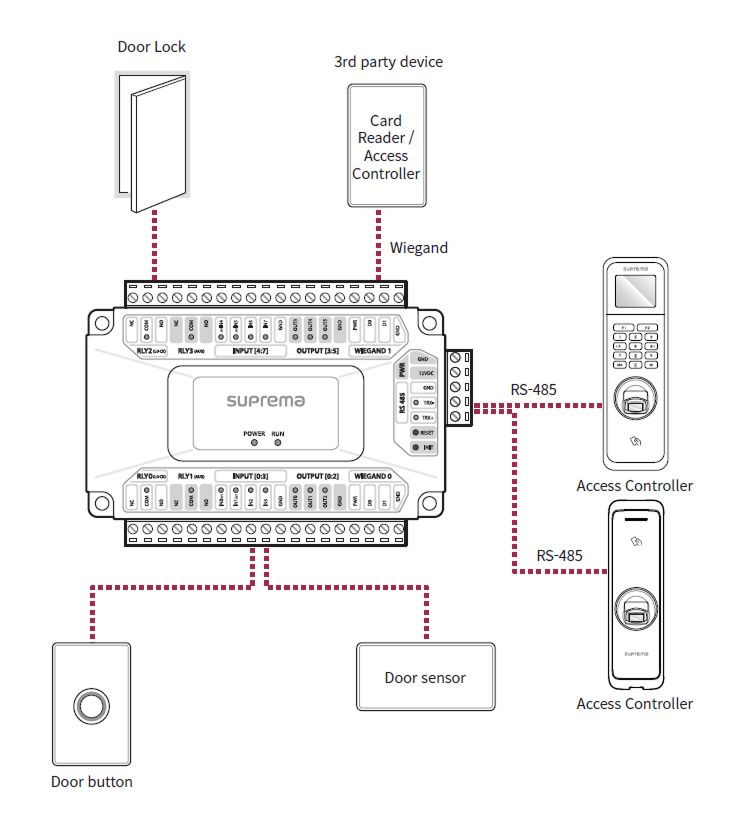

Installation example

This product supports various inputs and outputs as well as Wiegand connections, enhancing scalability with Suprema devices and third-party devices.

Supervised Input is also available, which can check for short circuit, short, On, and Off status.
