Getting Started
Provides initial procedures for getting started with the device.
Components
|
|
|
| FaceStation 2 | Wall Bracket | Drilling Template |
|
|
|
|
| Connection Cables | Diode | 120 Ω Resistor | Bracket Fixing Screw (Star Shaped) |
|
|
|
|
| PVC Anchor x4 | Fixing Screw x4 | Quick Guide | Open Source Software Guide |
- Components may vary according to the installation environment.
- When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

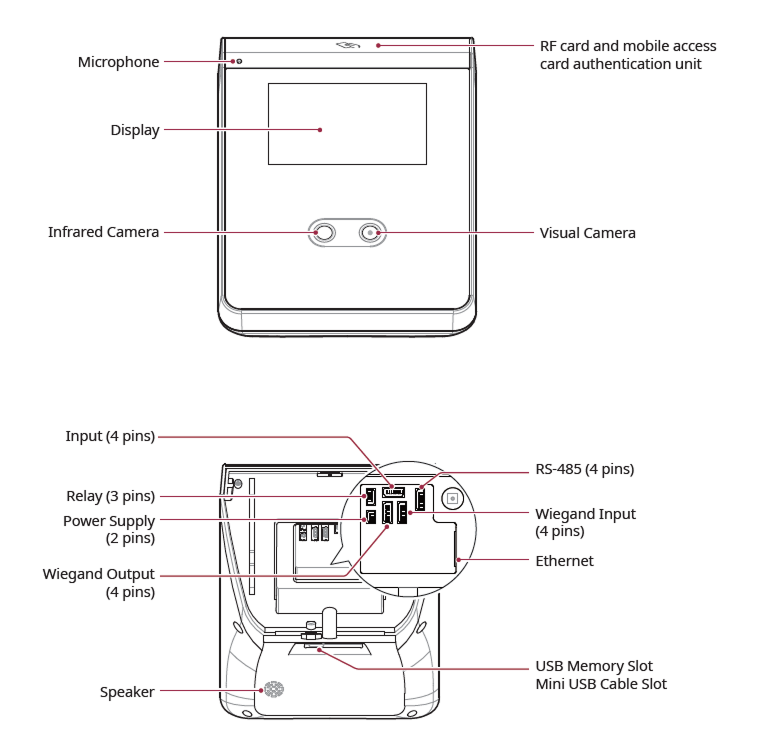

Name and function of each part
-
Microphone: Transmits the voice of the user when the interphone is connected.
- Covering or blocking the microphone may interfere with voice transmission.
-
Display: Provides a UI for operation.
-
Infrared Camera: Capture the infrared face image.
-
Visual Camera: Capture an actual face image.
-
RF card and mobile access card authentication unit: Part to scan a RFID card or mobile access card for entrance.
-
Speaker: Delivers sound.
-
USB Memory Slot: Connect the USB memory.
- The Suprema thermal camera (TCM10-FS2) cannot be used simultaneously with the USB memory.
-
Mini USB Cable Slot: Support coming soon.
-
Input (4-pin): Connect the input cable.
-
RS-485 (4-pin): Connect the RS-485 cable.
-
Relay (3-pin): Connect the Relay cable.
-
Power Supply (2-pin): Connects the power supply cable.
-
Ethernet: Connect the Ethernet cable.
-
Wiegand Input (4-pin): Connect the Wiegand Input cable.
-
Wiegand Output (4-pin): Connect the Wiegand Output cable.
Cables and connectors
Power
| Pin | Name | Color |
|---|---|---|
| 1 | PWR +VDC | Red (White stripe) |
| 2 | PWR GND | Black (White stripe) |
Relay
| Pin | Name | Color |
|---|---|---|
| 1 | RLY NO | White |
| 2 | RLY COM | Blue |
| 3 | RLY NC | Orange |
RS-485
| Pin | Name | Color |
|---|---|---|
| 1 | 485 TRXP | Blue |
| 2 | 485 TRXN | Yellow |
| 3 | 485 GND | Black |
| 4 | SH GND | Gray |
Input
| Pin | Name | Color |
|---|---|---|
| 1 | INPUT0 | Red |
| 2 | INPUT1 | Yellow |
| 3 | INPUT GND | Black |
| 4 | SH GND | Gray |
Wiegand Input and Output
| Pin | Name | Color |
|---|---|---|
| 1 | WG D0 | Green |
| 2 | WG D1 | White |
| 3 | WG GND | Black |
| 4 | SH GND | Gray |
Correct face enrollment and authentication method
Cautions for enrolling a faces
- Keep the distance between the device and your face at 40-80 cm when enrolling a face.
-
Do not change your face expression.
-
Do not wear masks, hats, or eye patches.
-
Do not enroll a face wearing a mask. It may increase the False Acceptance Rate (FAR) if both faces with and without a mask are enrolled.
-
Do not raise head up or lower head.
-
Do not wear thick makeup.
-
Do not close your eyes.
-
Make sure that both of your shoulders correctly appear on the screen.
-
Stand still and enroll your face by staring at the screen.
-
Be careful not to display two faces on the screen. Enroll one person at a time.
-
If you do not follow the instructions on the screen, the face enrollment may take longer or may fail.
Cautions for authenticating a face
-
Ensure that the face appears in the center of the device’s screen. When the guideline is displayed, follow the instructions shown on the screen to authenticate the face.
-
If a part of the face is covered with a hat, a mask, an eye patch, or sunglasses authentication may fail. Do not cover the face; allow the device to recognize both the eyebrows and the face.
-
Authenticate at a location 40~80 cm away from the device.
-
Make sure that both of your shoulders correctly appear on the screen. Authentication may fail if your shoulders are not at the same height. Stand still, and then authenticate your face.
