Getting Started
Provides initial procedures for getting started with the device.
Components
|
|
|
| FaceStation F2 (FSF2-ODB) | Wall Bracket (FSF2-ODB) | Drilling Template (FSF2-ODB) |
|
|
|
| FaceStation F2 (FSF2-DB, FSF2-AB) | Wall Bracket (FSF2-DB, FSF2-AB) | Drilling Template (FSF2-DB, FSF2-AB) |
|
|
|
| Cable Cover | Diode | 120 Ω Resistor |
|
|
|
| PVC Anchor x6 | Fixing Screw x6 | Bracket Fixing Screw (Star Shaped) |
|
|
|
| Connection Cables | Quick Guide | Open Source Software Guide |
- Components may vary according to the installation environment.
- When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

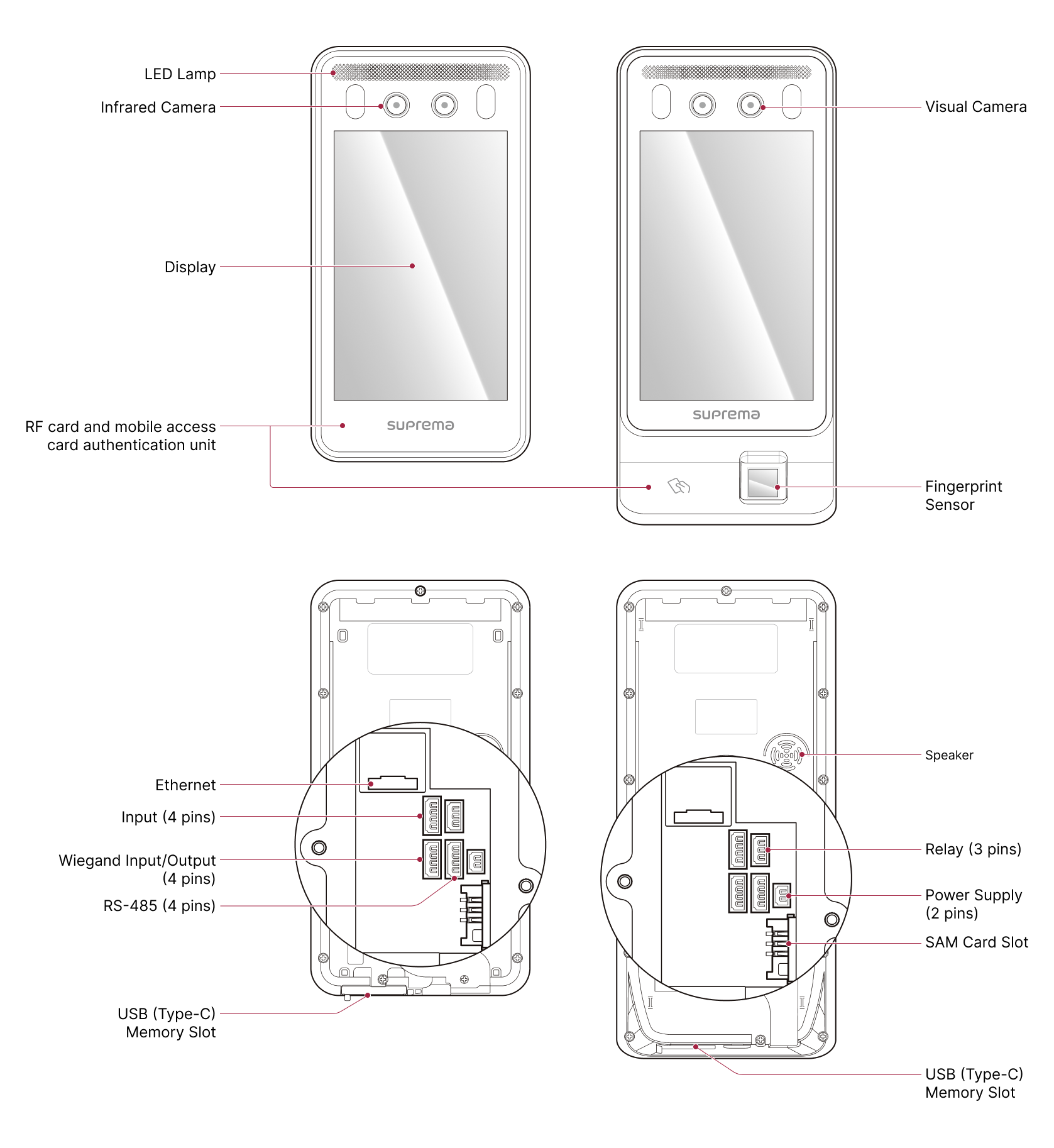

Name and function of each part
-
LED Lamp: The LED lamp turns on when it detects a user in the dark.
-
Infrared Camera: Capture the infrared face image.
-
Visual Camera: Capture an actual face image.
-
Display: Provides a UI for operation.
-
RF card and mobile access card authentication unit: Part to scan a RFID card or mobile access card for entrance.
-
Fingerprint Recognition Unit: FSF2-ODB The part that recognizes the fingerprint for access.
-
Ethernet: Connect the Ethernet cable.
-
Input (4-pin): Connect the input cable.
-
Wiegand Input/Output (4-pin): Connect the Wiegand Input/Output cable.
-
RS-485 (4-pin): Connect the RS-485 cable.
-
Speaker: Delivers sound.
-
Relay (3-pin): Connect the Relay cable.
-
Power Supply (2-pin): Connects the power supply cable.
-
SAM Card Slot: A SAM card can be used.
-
USB (Type-C) Memory Slot: Connects the USB memory.
Cables and connectors
Power
| Pin | Name | Color |
|---|---|---|
| 1 | PWR +VDC | Red (White stripe) |
| 2 | PWR GND | Black (White stripe) |
Relay
| Pin | Name | Color |
|---|---|---|
| 1 | RLY NO | White |
| 2 | RLY COM | Blue |
| 3 | RLY NC | Orange |
RS-485
| Pin | Name | Color |
|---|---|---|
| 1 | 485 TRXP | Blue |
| 2 | 485 TRXN | Yellow |
| 3 | 485 GND | Black |
| 4 | SH GND | Gray |
Input
| Pin | Name | Color |
|---|---|---|
| 1 | INPUT0 | Red |
| 2 | INPUT1 | Yellow |
| 3 | INPUT GND | Black |
| 4 | SH GND | Gray |
Wiegand Input and Output
| Pin | Name | Color |
|---|---|---|
| 1 | WG D0 | Green |
| 2 | WG D1 | White |
| 3 | WG GND | Black |
| 4 | SH GND | Gray |
Correct face enrollment and authentication method
Cautions for enrolling a faces
- Keep the distance between the device and your face at 60-100 cm when enrolling your face.
-
Do not change your face expression.
-
Do not wear masks, hats, or eye patches.
-
Do not enroll a face wearing a mask. It may increase the False Acceptance Rate (FAR) if both faces with and without a mask are enrolled.
-
Do not raise head up or lower head.
-
Do not wear thick makeup.
-
Do not close your eyes.
-
Make sure that both of your shoulders correctly appear on the screen.
-
Stand still and enroll your face by staring at the screen.
-
Be careful not to display two faces on the screen. Enroll one person at a time.
-
If you do not follow the instructions on the screen, the face enrollment may take longer or may fail.
Cautions for authenticating a face
-
Ensure that the face appears in the center of the device’s screen. When the guideline is displayed, follow the instructions shown on the screen to authenticate the face.
-
If a part of the face is covered with a hat, a mask, an eye patch, or sunglasses authentication may fail. Do not cover the face; allow the device to recognize both the eyebrows and the face.
-
Authenticate at a location 90~100 cm away from the device.
-
Make sure that both of your shoulders correctly appear on the screen. Authentication may fail if your shoulders are not at the same height. Stand still, and then authenticate your face.
Correct fingerprint input method FSF2-ODB
In order to improve the fingerprint authentication rate, enroll the fingerprint correctly. This product can authenticate fingerprints even if the user's fingerprint input angle and position change. If you enroll the fingerprint with attention to the following matters, the authentication rate can be improved.
Selecting a finger for fingerprint input
-
In preparation for the case that the fingerprint of a specific finger cannot be used, for example if the user is lifting a load with one hand or a finger gets hurt, up to 10 fingerprints for each user can be enrolled.
-
In the case of a user whose fingerprint cannot be recognized well, the authentication rate can be improved by enrolling the same finger twice repeatedly.
-
If a finger has a cut or the fingerprint is blurry, select another finger for the fingerprint.
-
It is recommended to use the index finger or the middle finger when scanning the fingerprint. The authentication rate can be reduced if it is difficult to place another finger at the center of fingerprint sensor accurately.
Fingerprint enroll method
- When the screen displays "Please input your fingerprint," place the finger you want to enroll on the fingerprint recognition unit and gently press it so that the fingerprint is authenticated well.
- When the re-input screen is displayed after a beep sound, scan the fingerprint of the enrolled finger again. (scan the fingerprint of a finger to be enrolled twice)
Cautions for fingerprint enrollment
When a fingerprint is recognized, it is compared with the initially enrolled fingerprint, so the initial fingerprint enroll is the most important. Pay attention to the following matters when enrolling the fingerprint.
-
Place the finger deep enough to contact with the sensor completely.
-
Place the center of the fingerprint in the center of the sensor.
-
If a finger has a cut or the fingerprint is blurry, select another finger for the fingerprint.
-
Scan the fingerprint correctly without moving according to the instruction on the screen.
-
If you make the finger upright so that the contact area with the sensor is decreased or the angle of finger is warped, fingerprint authentication may not be performed.
If fingerprint authentication does not work well
This product can authenticate fingerprints regardless of seasonal changes or changes in the condition of the fingers. However, the authentication rate may vary according to the external environment or fingerprint input method. If the fingerprint authentication cannot be done smoothly, it is recommended to take the following measures.
-
If the finger is smeared with water or sweat, dry off the finger and then scan the finger.
-
If the finger is too dry, blow your breath on the fingertips and then scan the finger.
-
If the finger has a cut, enroll the fingerprint of another finger.
-
Since the initially enrolled fingerprint is often not input correctly, please re-enroll the fingerprint according to the cautions for fingerprint enrollment.
