Getting Started

Provides initial procedures for getting started with the device.

Components

Secure I/O 2

Fixing Screws x2	Wall Bracket x2	120 Ω Resistor	Diode

Info

• Components may vary according to the installation environment.

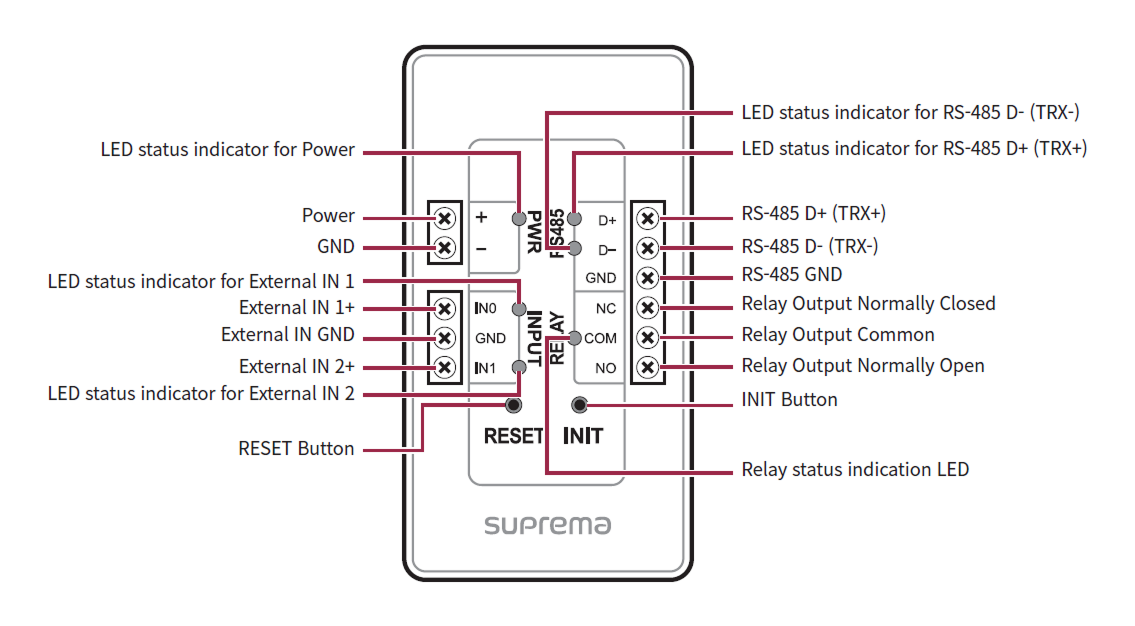

Name and function of each part

Info

• Press the INIT button for more than 2 seconds after initializing the product linked to the device to connect it to another device.

• Press the RESET button to reboot the product.

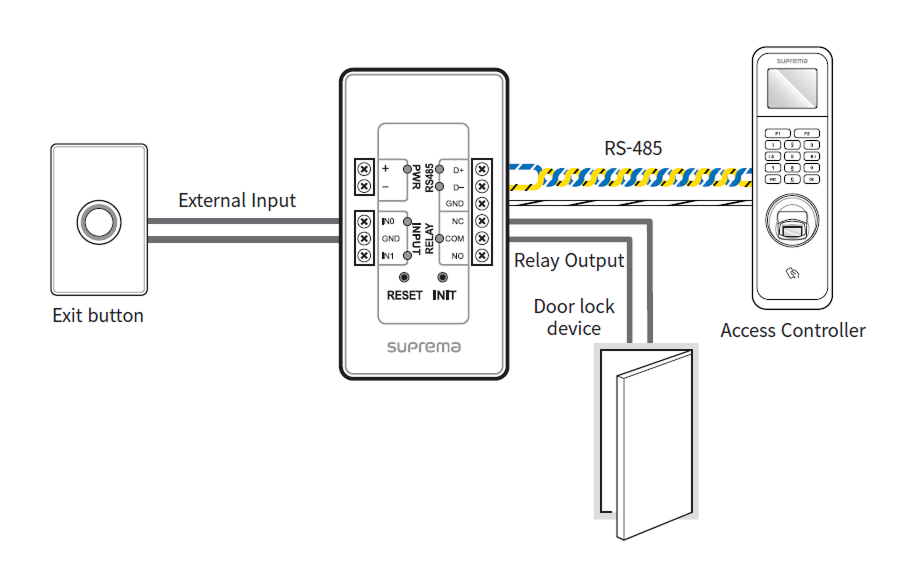

Installation example

This product connects via RS-485 and can be installed in various locations due to its compact size.

It can be installed in conjunction with a junction box or mounted onto an existing wall control box. It can also be installed behind the exit button.
