Accessing and Configuring the Web Server

This topic explains how to set a password and log in the first time you access the ViOnyx Web Server.

Accessing the Camera Web Server​

Info

  • Use a computer connected to the same network as the camera.

  • If the device does not get an IP address after a factory reset, it changes to the default IP address (https://192.168.1.100), so connect using that address.

  1. Contact Suprema Sales to request the installation package (VionyxTool.zip).

  2. Extract the installation file and run vionyx_tool.exe.

  3. Click Search for Cameras.

  4. In the list of discovered cameras, find the camera's serial number (DEVICE ID) and check the IP ADDRESS.

  5. Please launch the web browser.

  6. Enter the camera's IP ADDRESS including https:// in the address bar, then press Enter.

    Example: https://192.168.1.100/

  7. The ViOnyx Web Server page appears.

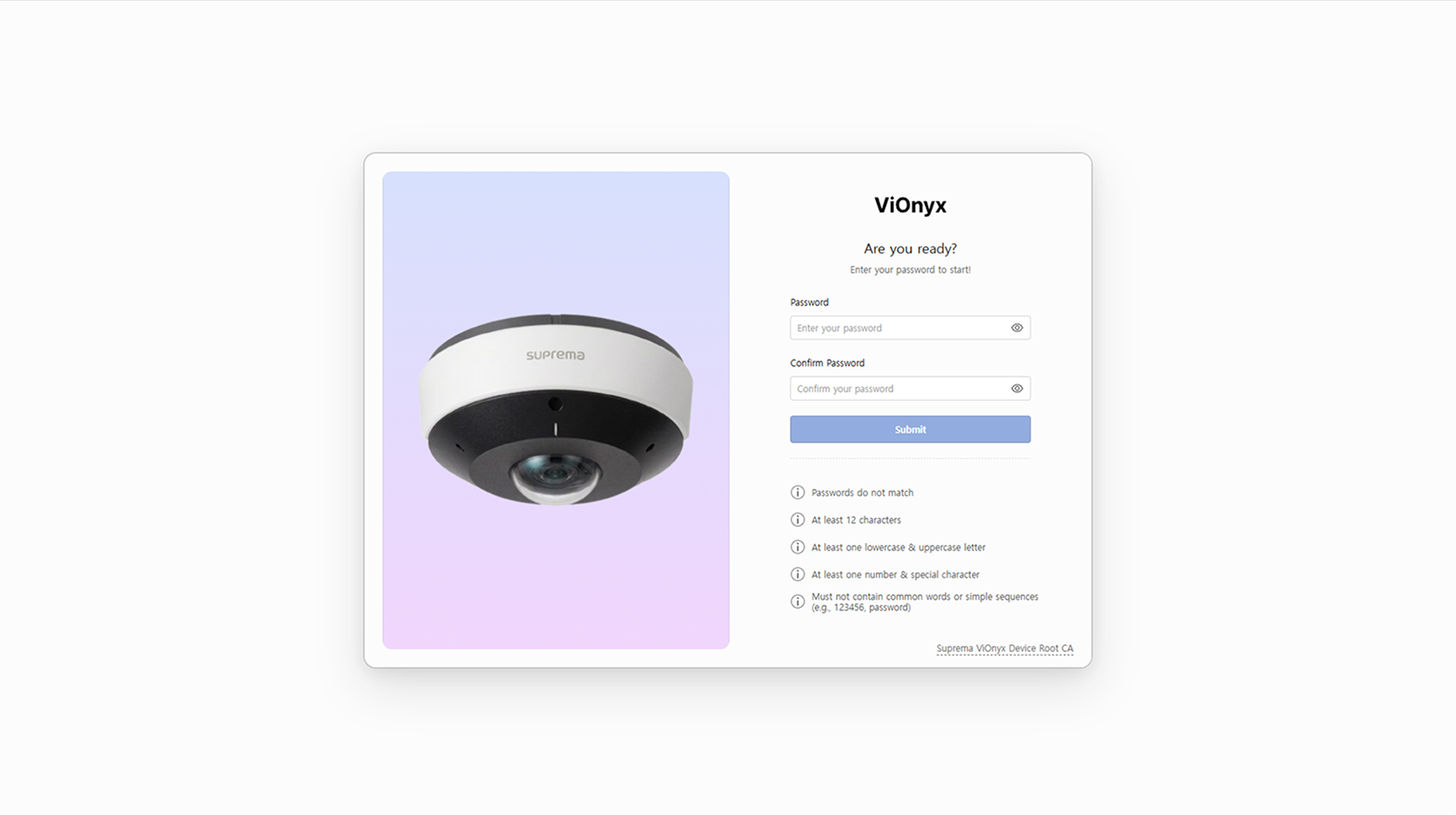

Set Password​

When you first access the ViOnyx Web Server, set a password.

  1. See Accessing the Camera Web Server, then open a web browser and go to the ViOnyx Web Server at https://IP_ADDRESS.

    Example: https://192.168.1.100/

  2. Enter the password in the Password field.

  3. Enter the same password again in the Confirm Password field.

  4. Make sure the password you entered meets all of the following requirements.

    Password requirements

    • Password confirmation: Values in the Password and Confirm Password fields must match exactly.

    • Length: Enter between 12 and 64 characters.

    • Character composition: Must include at least 1 of each of the following: English uppercase letters (A-Z), English lowercase letters (a-z), digits (0-9), and special characters (" ! @ # $ % ^ & * ( ) - _ = + [ ] { }).

      • Spaces, Hangul, and other Unicode characters are not allowed.

    • Security rules: To prevent security vulnerabilities, the following patterns are not allowed.

      • Consecutive sequences of 4 or more letters or numbers (e.g., abcd, 1234, 4321)

      • Identical characters or digits repeated 4 or more times (e.g., aaaa, 1111)

      • Contains the user ID (case-insensitive)

      • Common words or patterns that are easy to guess (e.g., password, qwerty)

  5. When all conditions are met, Submit becomes active. Click the button to finish setting your password.

Caution

Take care not to lose your password. If you lose your password, you will need to reset the camera.

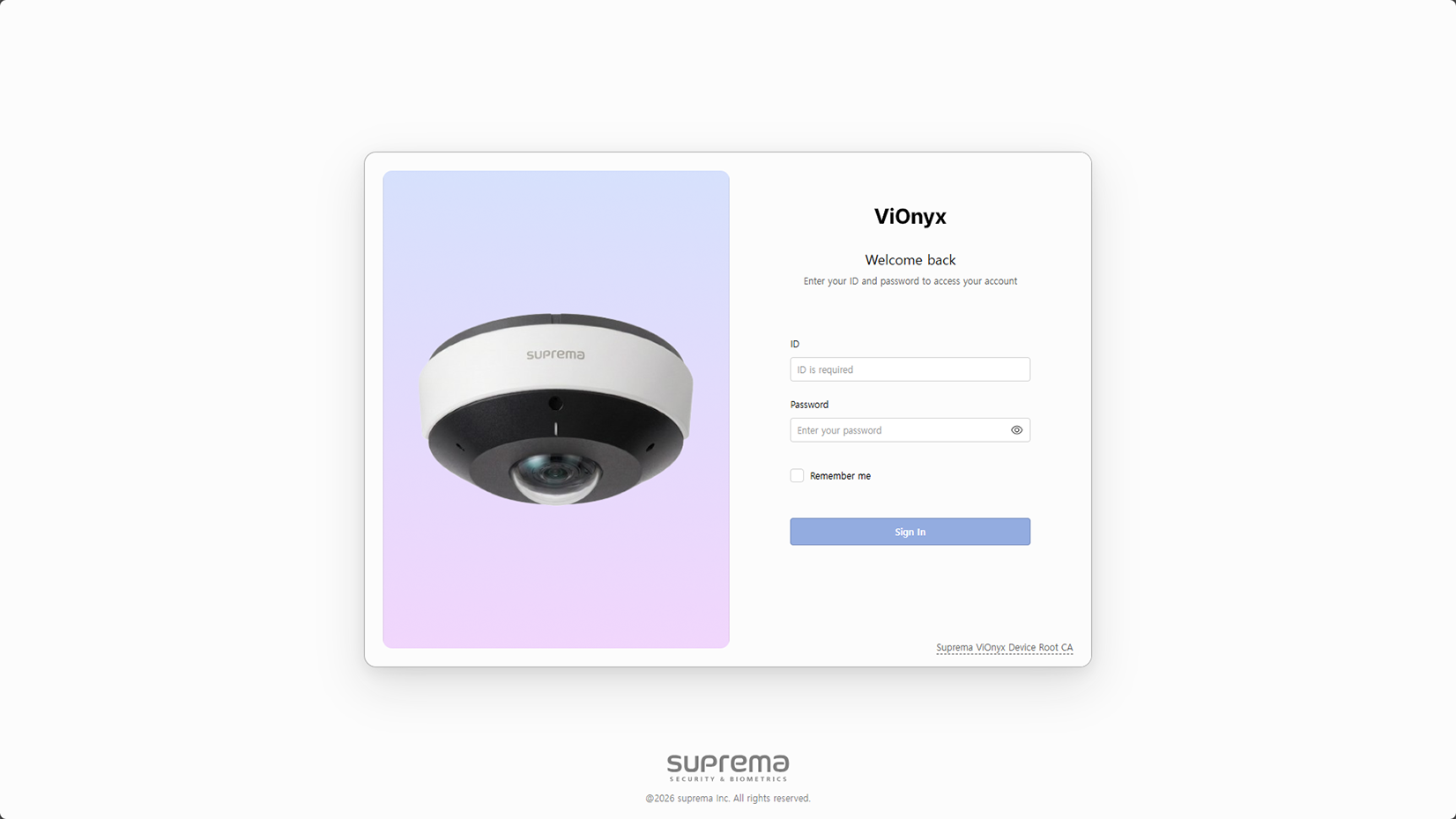

How to Log in​

After the password is set, you will be automatically redirected to the login page. Enter the administrator ID and the password you set to access the ViOnyx Web server.

  1. Enter admin in the ID field.

    • Change the administrator ID (admin) in System → Account.

  2. Enter the password you set in the Password field.

  3. Click the Sign In button. After successfully logging in, the ViOnyx Web Server's live camera viewer will appear.

  4. See the ViOnyx Web Server User Guide to configure the camera.
