Installation

Provides the complete installation procedures and connection examples required for the device.

Fixing the bracket and the product

Info

This document explains the installation method based on the million type. Install the gang box type and keypad type in the same way.

1. Secure the bracket tightly using the fixing screws at the location where the product will be mounted.



   Info

   • If installing the product on a concrete wall, drill a hole, insert a PVC anchor, and secure it with a fixing screw.

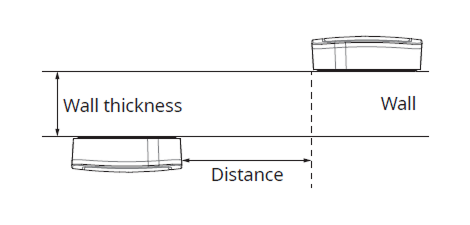

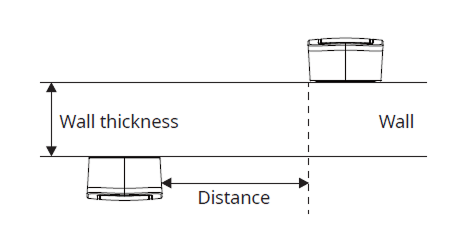

   • To avoid RF interference, a minimum separation distance must be maintained.

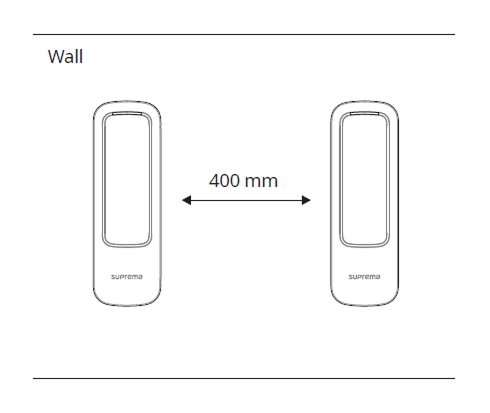

   XP2-MDPB, XP2-MAPB, XP2-MAPB-H



   Wall thickness	Distance
   100 mm	360 mm
   120 mm	360 mm
   150 mm	300 mm

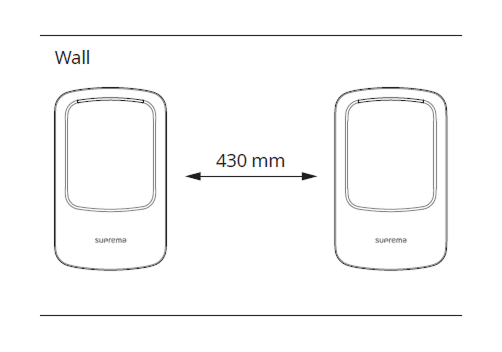

   XP2-GDPB, XP2-GKDPB



   Wall thickness	Distance
   100 mm	400 mm
   120 mm	380 mm
   150 mm	380 mm



   • When using a mobile access card, install devices maintaining a minimum distance of 1 m between devices to avoid BLE interference.

2. Mount the product on the fixed bracket.



3. Rotate the fixing screws to assemble the product with the bracket.



   Info

   When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

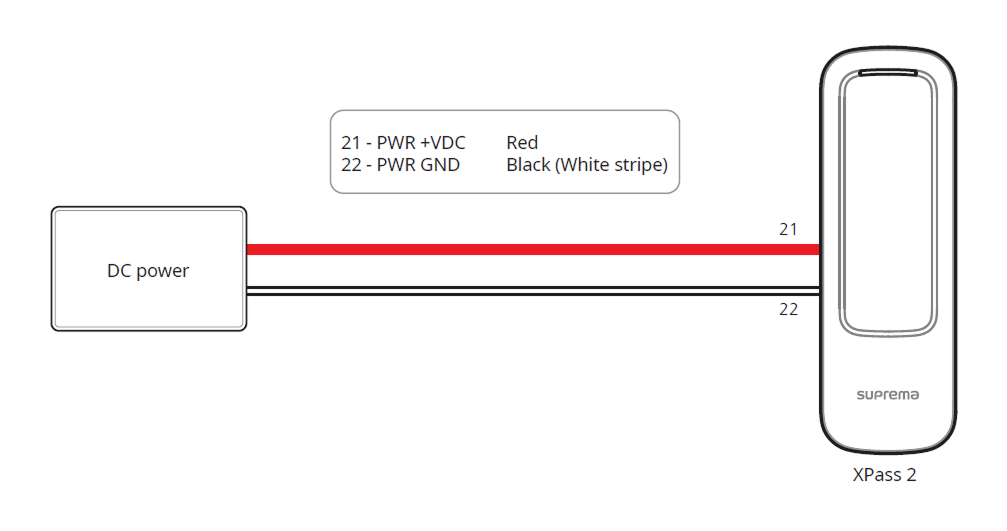

Power Supply Connection

Caution

• Use the IEC/EN 62368-1 approved power adapter that supports higher power consumption than the product. If you wish to connect and use another device to the power supply adapter, you should use an adapter with a current capacity which is the same or larger than the total power consumption required for the terminal and another device.

  • Refer to the Power in the product specifications for maximum current consumption specifications.

• Use a separate power supply for Secure I/O 2, the electric lock, and the product respectively. If connecting and using the power supply to these devices together, the devices may malfunction.

• DO NOT extend the length of power cable when using the power adapter.

Network Connection

TCP/IP

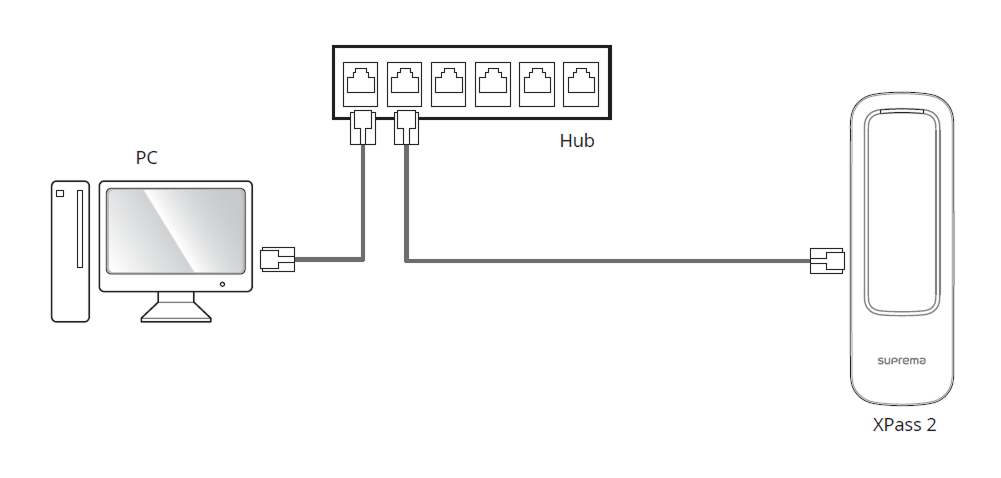

LAN connection (connecting to a hub)

You can connect to the hub using a standard CAT-5e cable.

LAN connection (connecting to a PC directly)

This product has automatic MDI/MDIX functionality, so you can connect directly to a PC using a standard CAT-5e cable.

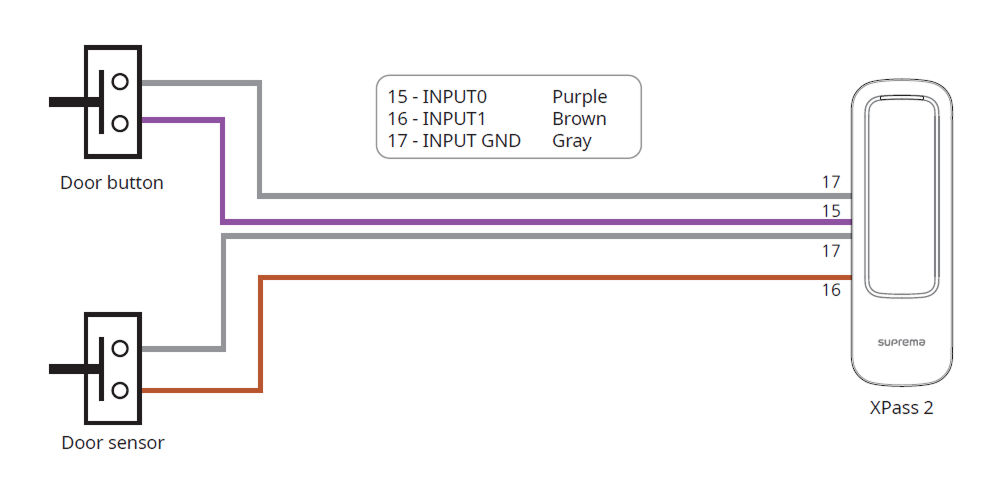

Input connection

Relay Connection

Fail Safe Lock

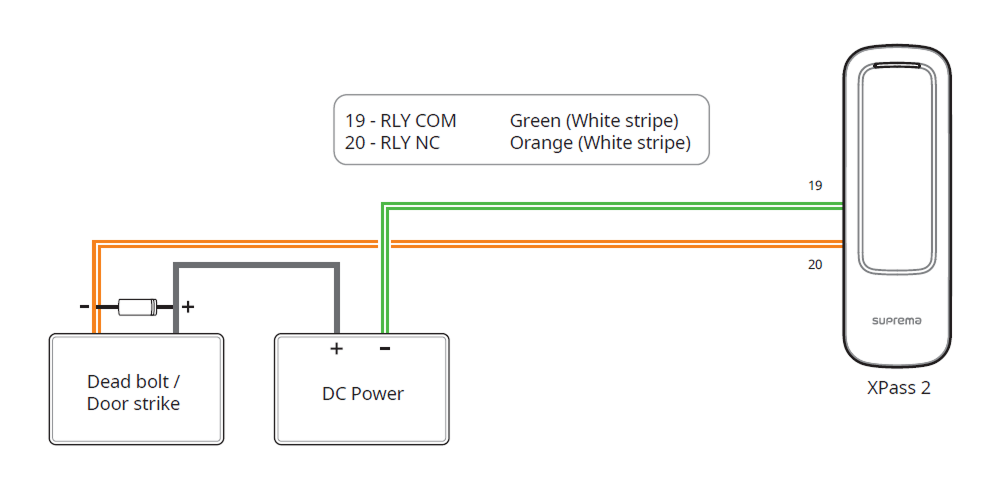

In order to use the Fail Safe Lock, connect N/C relay as shown in the figure below. There is normally a current flowing through the relay for the Fail Safe Lock. When the relay is activated, blocking the current flow, the door will open. If the power supply to the product is cut off due to a power failure or an external factor, the door will open.

Caution

• Install a diode at both sides of the door lock wire as shown in the figure to protect the relay from the reverse current, which occurs when the door lock operates.

• Use a separate power supply for the product and the door lock.

• Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended to use the internal relay of a reader to prevent any tampering attacks which can potentially trigger the door unlock. For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema’s Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door.

Info

Take caution of the installation direction of the diode. Install the diode close to the door lock.

Fail Secure Lock

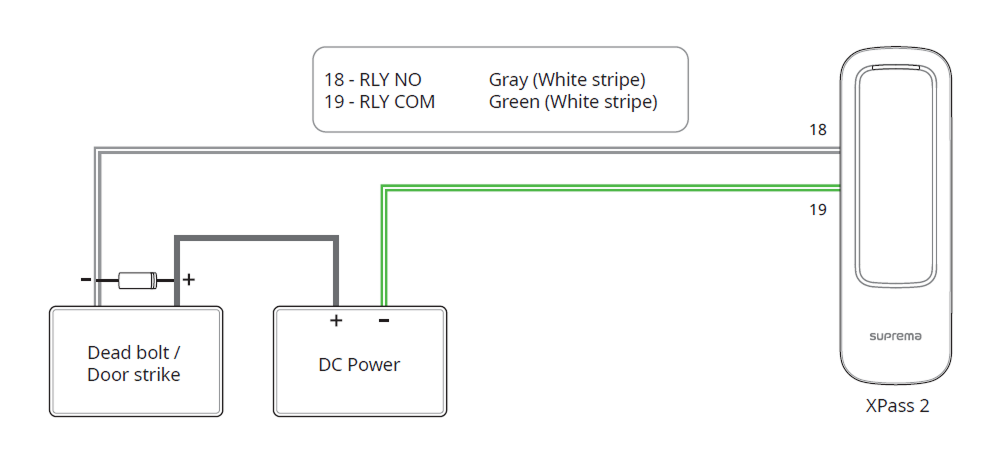

In order to use the Fail Secure Lock, connect N/O relay as shown in the figure below. There is normally no current flowing through the relay for the Fail Secure Lock. When the current flow is activated by the relay, the door will open. If the power supply to the product is cut off due to a power failure or an external factor, the door will lock.

Caution

• Install a diode at both sides of the door lock wire as shown in the figure to protect the relay from the reverse current, which occurs when the door lock operates.

• Use a separate power supply for the product and the door lock.

• Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended to use the internal relay of a reader to prevent any tampering attacks which can potentially trigger the door unlock. For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema’s Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door.

Info

Take caution of the installation direction of the diode. Install the diode close to the door lock.

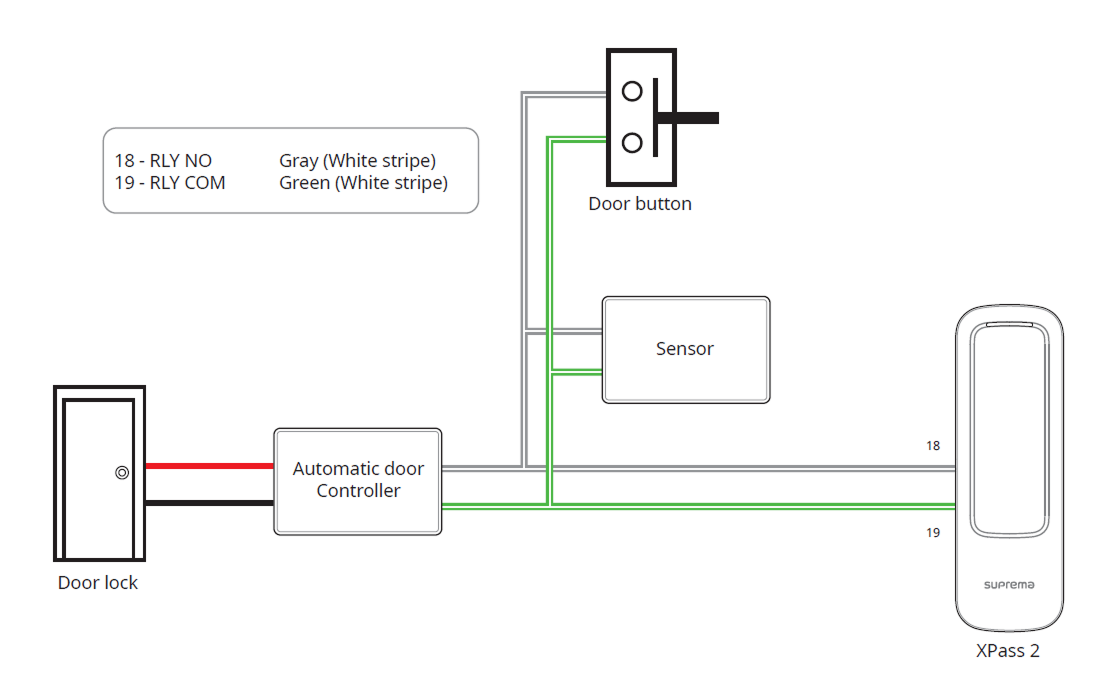

Automatic door connection

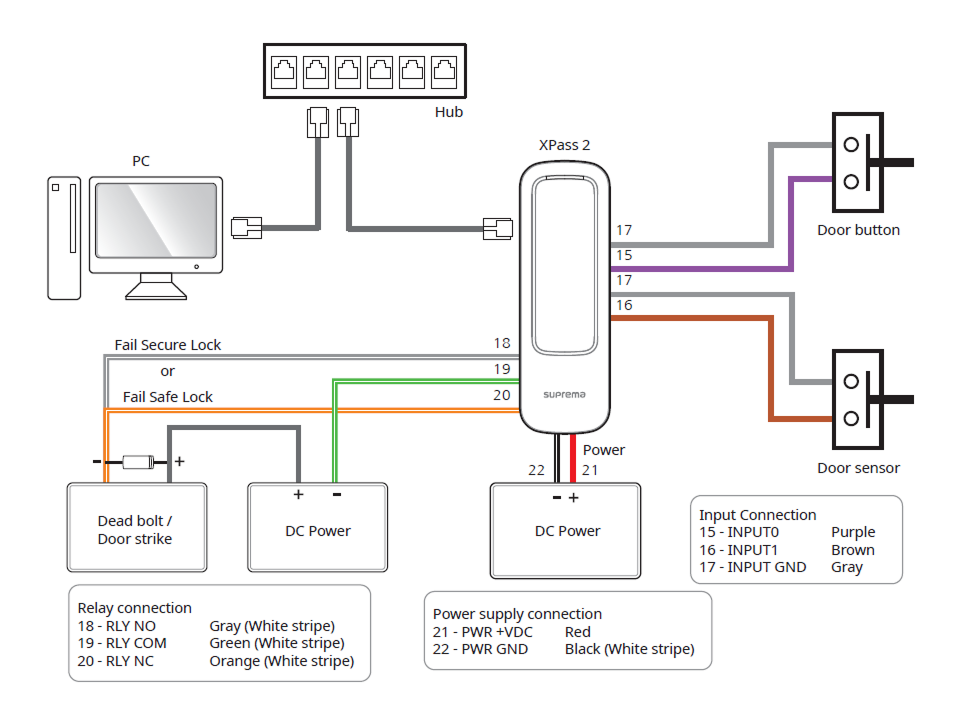

Connecting as a Standalone

The product can be connected to the door lock, door button, and door sensor directly without connecting a separate I/O device.

Caution

Suprema’s standalone intelligent readers contain internal relays that can directly lock/unlock doors without external controllers for added convenience. For access control applications in need of security, however, it is NOT recommended to use the internal relay of a reader to prevent any tampering attacks which can potentially trigger the door unlock. For such applications, it is highly recommended to use a separate relay unit for a lock control such as Suprema’s Secure I/O 2, DM-20 or CoreStation installed at a secure side of a door.

Info

• The device can be used as a multi-door controller with the slave devices with the RS-485 cable. The slave devices are used as dummy readers and authentication is performed in the master device.

• If you use this product as the master device, the slave device can only use card authentication.

• Connect up to 31 slave devices to a master device.

• For more information, contact the Suprema Technical Support Team.

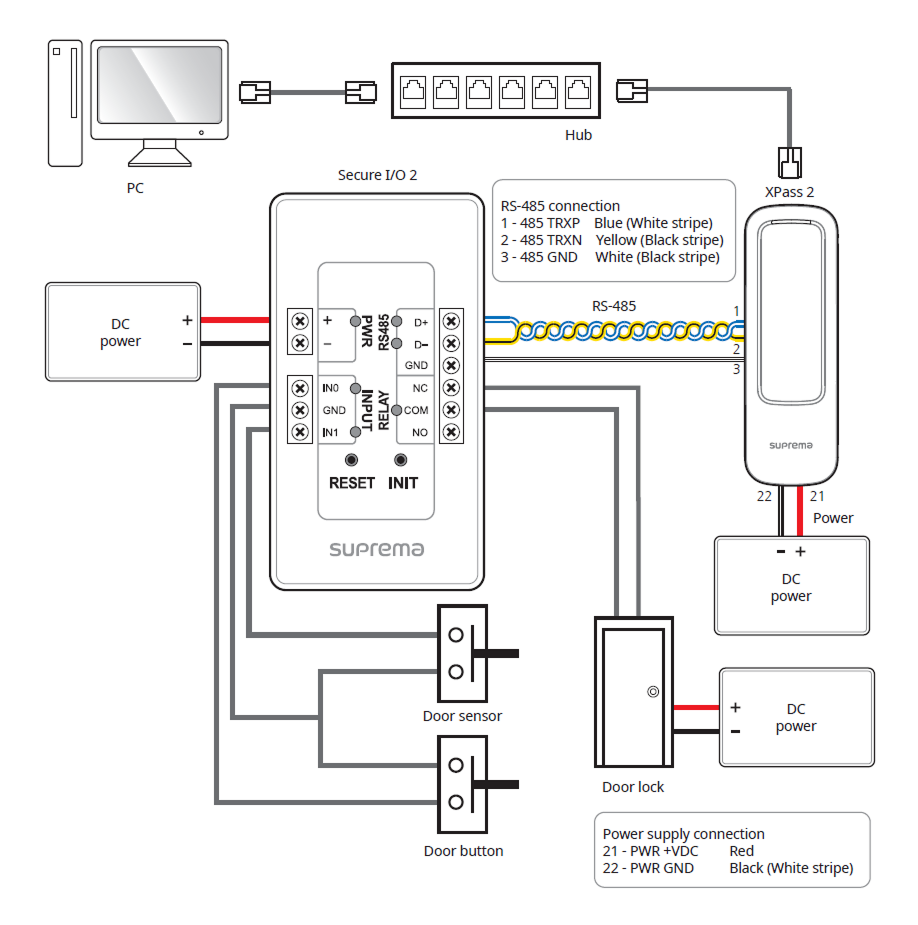

Connecting to Secure I/O 2

Secure I/O 2 is an I/O device, can be connected to the product with the RS-485 cable. Security can be maintained even if the connection between the product and Secure I/O 2 has been lost or the power supply to the product has been shut off due to external factors.

• Use an AWG24 twisted pair with a maximum length of 1.2 km for the RS-485 cable.

• It is recommended to use RS-485 cables with a characteristic impedance of 120 Ω.

• If connecting with a RS-485 daisy chain, connect the termination resistor (120 Ω) to both ends of the daisy chain connection. If connected to the middle line, the signal level becomes smaller and the communication performance will deteriorate. Make sure to connect it to both ends of the daisy chain connection.

Info

• The device can be used as a multi-door controller with the slave devices with the RS-485 cable. The slave devices are used as dummy readers and authentication is performed in the master device.

• If you use this product as the master device, the slave device can only use card authentication.

• Connect up to 31 slave devices to a master device.

• For more information, contact the Suprema Technical Support Team.

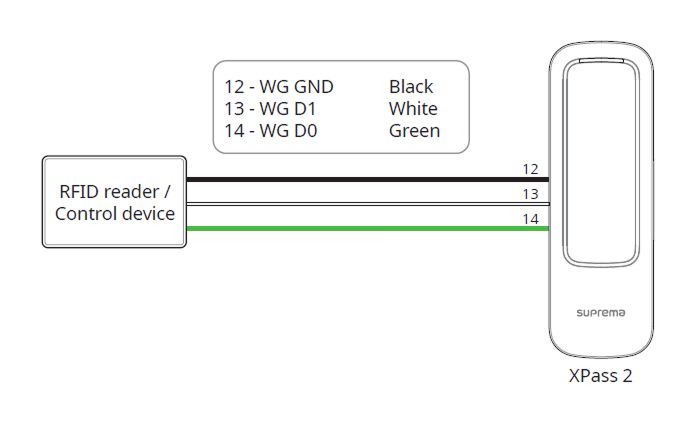

Wiegand Connection

Use as a Wiegand input or output device

Initialize Network Settings

Initialize the device's network settings.

1. Power on.

2. Press the reset button until the device automatically reboots.

3. Connect the device using the initialized network information.

   • TCP/IP Address: DHCP address assignment (if DHCP address assignment fails, will be set to 169.254.x.x).

   • Server Mode: Disable

   • RS-485: Default, 115200 bps

4. Change the TCP/IP or RS-485 information.

5. Check if the network information is correctly set after turning the power off and on.

Factory default

Delete all information stored on the device and initialize the settings.

1. Power on.

2. Quickly press the reset button three times.

3. Press the reset button once more when the device's LED blinks green.

Info

You can only use Factory Default when the root certificate is stored on the device.
