Getting Started

Provides initial procedures for getting started with the device.

Components


XPass D2 Mullion Type (XPD2-MDB)	Wall Bracket (XPD2-MDB)	XPass D2 Gang Box Type (XPD2-GDB)	Wall Bracket (XPD2-GDB)

XPass D2 Keypad Type (XPD2-GKDB)	Wall Bracket (XPD2-GKDB)	Fixing Screws x2	Bracket Fixing Screw (Star Shaped)

120 Ω Resistor	Shrink Tube	Quick Guide	Open Source Software Guide

Info

When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

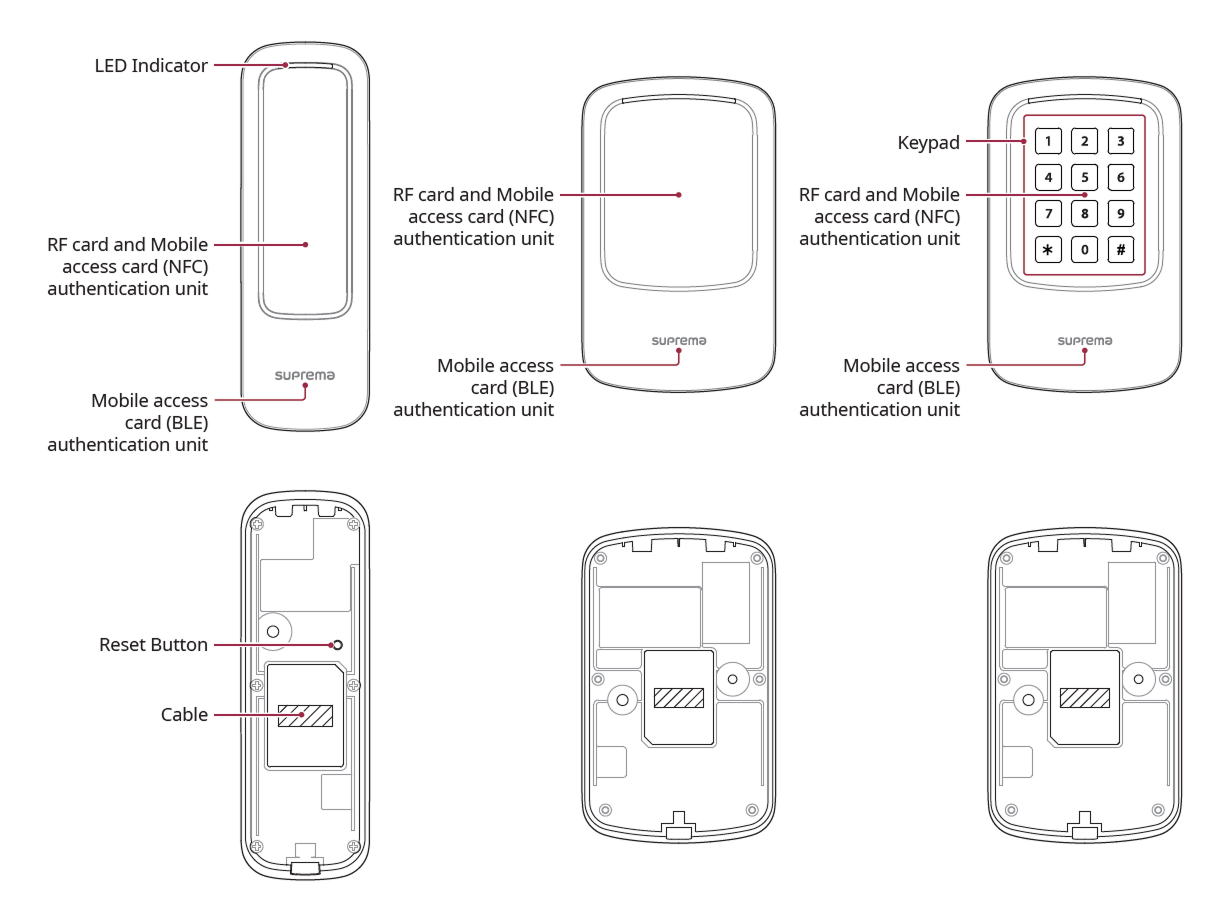

LED Indicator: Indicates the operational status of the device with the color of the LED.
- Green: Authentication success.
- Red: Authentication failure.
- Blue/Cyan blinking: Normal operation.
- Blue/Green blinking: During network settings initialization
- Green blinking: Waiting for input.
- Green/White blinking: Connecting to the Suprema AirFob Pass (BLE) application
- White blinking: Connecting to the Device Manager application
RF card and mobile access card authentication unit: Part to scan a RFID card or mobile access card for entrance.
Mobile Access Card Recognition Area: This is the part that recognizes mobile access cards for entry.
Reset Button: Deletes all stored information and certificates and initializes the settings. For more information on factory initialization, refer to the following.
Cable

Power / RS-485 / Wiegand Output / LED Input / Beep Input / Tamper
Keypad: XPD2-GKDB Used to authenticate by directly entering the Card ID. To authenticate using direct input mode, change the authentication method settings in BioStar X.
- 0-9: Used when entering numbers.
- : Used to distinguish between FC code and ID when entering Wiegand Card ID.
- : Used to terminate input.
