Getting Started

Provides initial procedures for getting started with the device.

Components


XPass S2	Wall Bracket	Drilling Template	Fixing Screws x2	PVC Anchors x2

Shrink Tube	Diode	120 Ω Resistor	Bracket Fixing Screw (Star Shaped)	Quick Guide

Info

When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

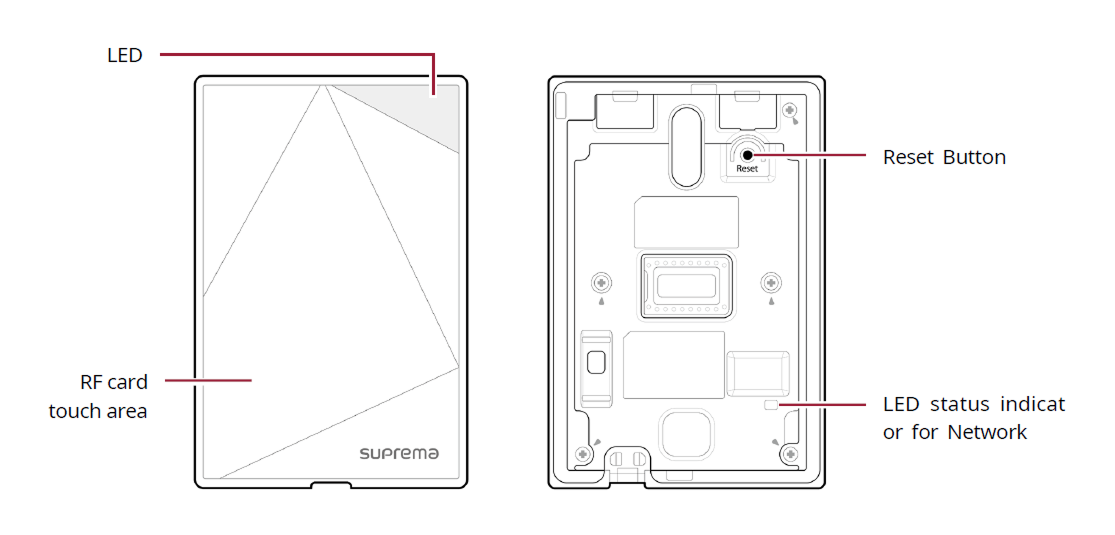

LED Indicator: Indicates the operational status of the device with the color of the LED.
- Green: Authentication success.
- Red: Authentication failure.
- Pink: Processing
- Blue/Cyan blinking: Normal operation.
- Red/Pink blinking: Terminal Locked
- Blue/Red blinking: Time Initialization State, Time Reset Needed
- Blue/Yellow blinking:
  - When setting DHCP to use, unable to retrieve IP address.
  - When in Slave mode, the connection to the master device is disconnected.
- Red blinking: Product Initialization Error, Contact Manufacturer
- Yellow blinking: Waiting for input.
RF Card Recognition Part: This is the part that recognizes RF cards for access.
Reset Button
- Initializes network settings. For more information on initializing network settings, refer to the following.
- Deletes all information and certificates stored on the device and initializes the settings. For more information on factory initialization, refer to the following.
Network Status LED: Indicates network connection status.
