Getting Started

Provides initial procedures for getting started with the device.

Components

X-Station 2 (XS2-DPB, XS2-APB)	Wall Bracket (XS2-DPB, XS2-APB)	X-Station 2 (XS2-QDPB, XS2-QAPB)	Wall Bracket (XS2-QDPB, XS2-QAPB)	Drilling Template (XS2-DPB, XS2-APB, XS2-QDPB, XS2-QAPB)
X-Station 2 (XS2-ODPB, XS2-OAPB)	Wall Bracket (XS2-ODPB, XS2-OAPB)	Drilling Template (XS2-ODPB, XS2-OAPB)	Quick Guide	Open Source Software Guide

Connection Cables	Cable Cover	120 Ω Resistor	Diode
Shrink Tube	PVC Anchors x2	Fixing Screws x2	Bracket Fixing Screw (Star Shaped)

Info

• Components may vary according to the installation environment.

• When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

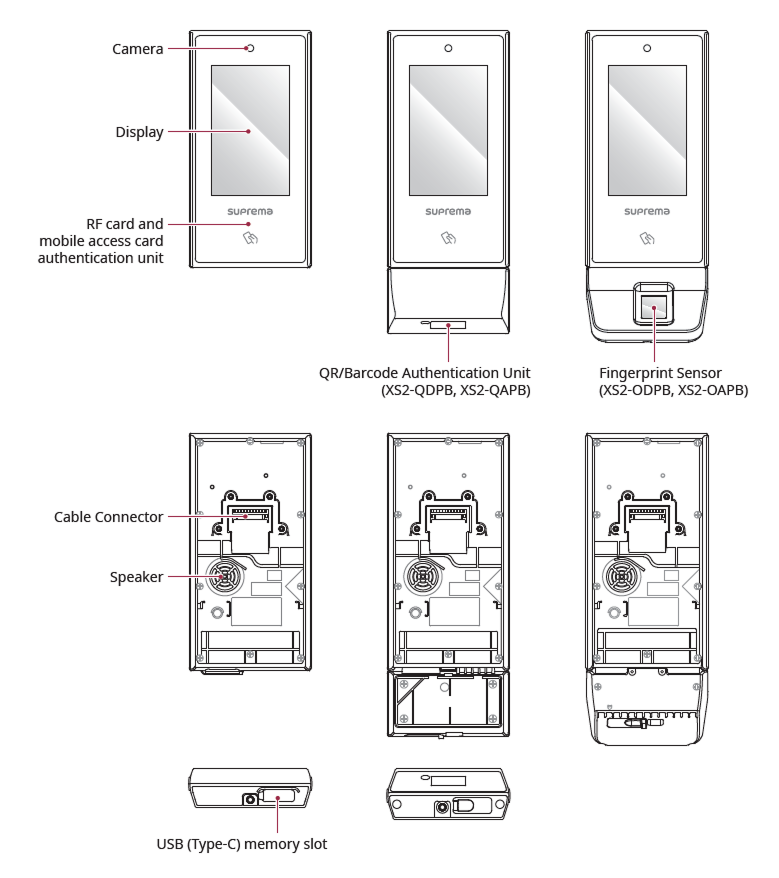

Name and function of each part

• Camera: You can register your photo or leave an image log.

• Display: Provides a UI for operation.

• RF card and mobile access card authentication unit: Part to scan a RFID card or mobile access card for entrance.

• QR/Barcode Recognition Unit: XS2-QDPB, XS2-QAPB Scans QR/Barcode credentials for access.

• Fingerprint Recognition Unit: XS2-ODPB, XS2-OAPB The part that recognizes the fingerprint for access.

• Cable Connector: Connects the cable.

  Power / RS-485 / Ethernet + PoE / Relay / Wiegand Input/Output / Input

• Speaker: Delivers sound.

• USB (Type-C) Memory Slot: Connects the USB memory.

Cables and connectors

Cable	Pin	Name	Color
RJ-45 (Ethernet + PoE)	1	ENET TXP	White
	3	ENET TXN	Orange
	5	ENET RXP	Black
	7	ENET RXN	Yellow
Input	9	INPUT GND	Gray
	11	INPUT0	Purple
	13	INPUT1	Brown
RS-485	15	485 GND	White (Black Stripe)
	17	485 TRXN	Yellow (Black Stripe)
	19	485 TRXP	Blue (White Stripe)
Wiegand	21	WG D1	White
	22	WG D0	Green
	20	WG GND	Black
Relay	18	RLY NO	Gray (White Stripe)
	16	RLY NC	Orange (White Stripe)
	14	RLY COM	Green (White Stripe)
Power	12	PWR +VDC	Red
	10	PWR GND	Black (White Stripe)
RJ-45 (Ethernet + PoE)	8	VB2	Brown
	6	VB2	Blue
	4	VB1	Green
	2	VB1	Red

Correct fingerprint input method XS2-ODPB, XS2-OAPB

In order to improve the fingerprint authentication rate, enroll the fingerprint correctly. This product can authenticate fingerprints even if the user's fingerprint input angle and position change. If you enroll the fingerprint with attention to the following matters, the authentication rate can be improved.

Selecting a finger for fingerprint input

• In preparation for the case that the fingerprint of a specific finger cannot be used, for example if the user is lifting a load with one hand or a finger gets hurt, up to 10 fingerprints for each user can be enrolled.

• In the case of a user whose fingerprint cannot be recognized well, the authentication rate can be improved by enrolling the same finger twice repeatedly.

• If a finger has a cut or the fingerprint is blurry, select another finger for the fingerprint.

• It is recommended to use the index finger or the middle finger when scanning the fingerprint. The authentication rate can be reduced if it is difficult to place another finger at the center of fingerprint sensor accurately.

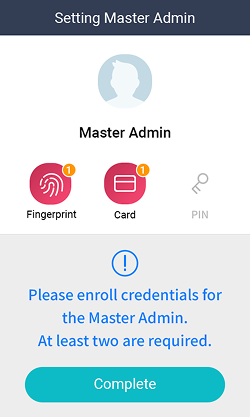

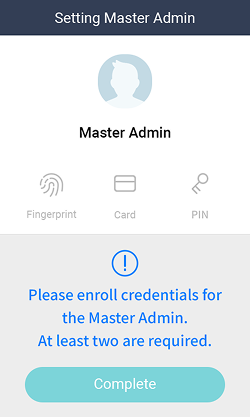

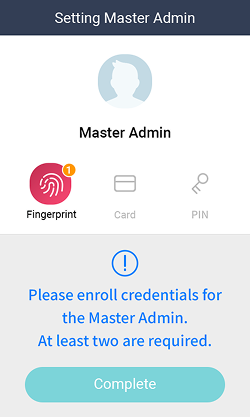

Fingerprint enroll method

1. When the screen displays "Please input your fingerprint," place the finger you want to enroll on the fingerprint recognition unit and gently press it so that the fingerprint is authenticated well.

2. When the re-input screen is displayed after a beep sound, scan the fingerprint of the enrolled finger again. (scan the fingerprint of a finger to be enrolled twice)

Cautions for fingerprint enrollment

When a fingerprint is recognized, it is compared with the initially enrolled fingerprint, so the initial fingerprint enroll is the most important. Pay attention to the following matters when enrolling the fingerprint.

• Place the finger deep enough to contact with the sensor completely.

• Place the center of the fingerprint in the center of the sensor.

• If a finger has a cut or the fingerprint is blurry, select another finger for the fingerprint.

• Scan the fingerprint correctly without moving according to the instruction on the screen.

• If you make the finger upright so that the contact area with the sensor is decreased or the angle of finger is warped, fingerprint authentication may not be performed.

If fingerprint authentication does not work well

This product can authenticate fingerprints regardless of seasonal changes or changes in the condition of the fingers. However, the authentication rate may vary according to the external environment or fingerprint input method. If the fingerprint authentication cannot be done smoothly, it is recommended to take the following measures.

• If the finger is smeared with water or sweat, dry off the finger and then scan the finger.

• If the finger is too dry, blow your breath on the fingertips and then scan the finger.

• If the finger has a cut, enroll the fingerprint of another finger.

• Since the initially enrolled fingerprint is often not input correctly, please re-enroll the fingerprint according to the cautions for fingerprint enrollment.

Notes on QR/Barcode and Device License

Correct QR/Barcode Authentication Method

You can issue a QR/barcode to the user for use as a means of authentication. To improve recognition rate, scan the QR/barcode correctly according to the guidance on the screen.

XS2-DPB, XS2-APB

• Keep the distance between the device's camera and the QR/barcode at 5-20 cm.

• Position the QR/barcode so that it is centered in the device's scanning screen.

• If authenticating with a QR/barcode downloaded to a mobile device, adjust the brightness of the mobile device to ensure the screen is clearly visible.

• Failure to follow the instructions on the screen may result in slow recognition or failure of the QR/barcode.

XS2-QDPB, XS2-QAPB

• Keep the distance between the device's QR/barcode recognition unit and the QR/barcode at 5-20 cm.

• Ensure the device's QR/barcode recognition unit is horizontal to the QR/barcode being scanned, and position the guide beam in the center of the QR/barcode.

• If authenticating with a QR/barcode downloaded to a mobile device, adjust the brightness of the mobile device to ensure the screen is clearly visible.

• Failure to follow the instructions on the screen may result in slow recognition or failure of the QR/barcode.

XS2-ODPB, XS2-OAPB

• Keep the distance between the device's camera and the QR/barcode at 5-20 cm.

• Position the QR/barcode so that it is centered in the device's scanning screen.

• If authenticating with a QR/barcode downloaded to a mobile device, adjust the brightness of the mobile device to ensure the screen is clearly visible.

• Failure to follow the instructions on the screen may result in slow recognition or failure of the QR/barcode.

Notes for device license

• Using additional QR/Barcode authentication methods requires a separate device license. Contact the place of purchase to issue a device license.

• The device license file is an encrypted file and cannot be modified arbitrarily.

• Device licenses are issued based on device ID. If the device ID is changed in an unusual way, the warranty service for the license is not provided.
