Control Elevators
This guide describes how to control the elevator. You can control the elevator or check detailed information through the provided features.
-
Click Monitoring on the Launcher page or select Monitoring from the shortcut list at the top left of the screen.
-
In the Door tab on the left sidebar, go to All Elevator Groups.
-

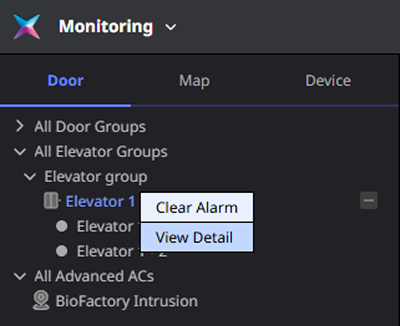

Select the elevator in the desired group and right-click. You can select the desired feature from the popup menu.
For more information about how to set up the elevator and configuring groups, refer to the following.
Clear Alarm
You can deactivate the alarm that occurred at this elevator. Click Clear Alarm in the popup menu. A completion message appears at the top right of the screen.
View Details

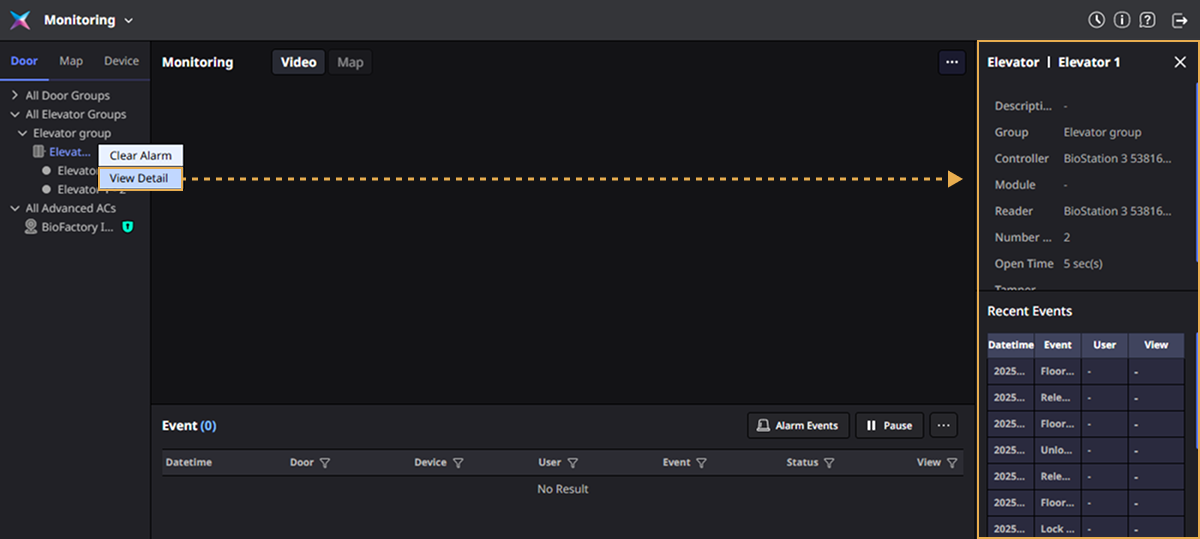

You can check detailed information about the elevator and the event history. Click View Detail in the popup menu. Detailed information and event history for the elevator appear on the right side of the screen.
-
View Details: You can check the name, location, status information, and more for the elevator.
-
Recent Events: You can check the recent event list that occurred at the selected elevator.
For more information about each item in the elevator's details section, refer to the following.
Floor Access Control

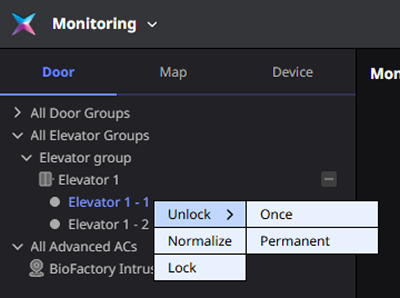

You can control the floors that can be accessed by the elevator. Click on the relay for the floor set in the elevator and right-click. Select the desired feature from the pop-up menu.
Floor Open

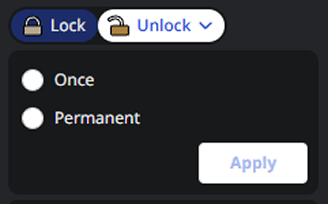

The opened floor can be accessed by anyone. Click Unlock in the popup menu and select the desired option.
-
Once: Opens the floor once.
-
Permanent: Opens the floor regardless of time.
The floor can be temporarily opened for the convenience of external guests when they visit. After opening the floor, be sure to switch to Normalize mode.
Normalize Floor
Changing the floor to Normalize status will allow only authorized users to access. Click Normalize in the popup menu.
Lock Floor
Changing the floor to Lock status will prevent anyone from access. Click Lock in the popup menu.
