Enroll User's Credential

This document provides guidance on how to enroll user credentials. Users can enroll their fingerprints, faces, card information, and PINs as credentials. Credentials can be added or modified when registering or updating a user.

Go to the Launcher → User page and enroll, add, or modify credentials in the following two ways:

• New User: Click the New User button at the top right of the screen. The New User window appears.

• Existing User: Double-click a user in the user list. Or, click the user and click the See More button in the preview screen displayed on the right side of the screen. A window for editing user information appears.

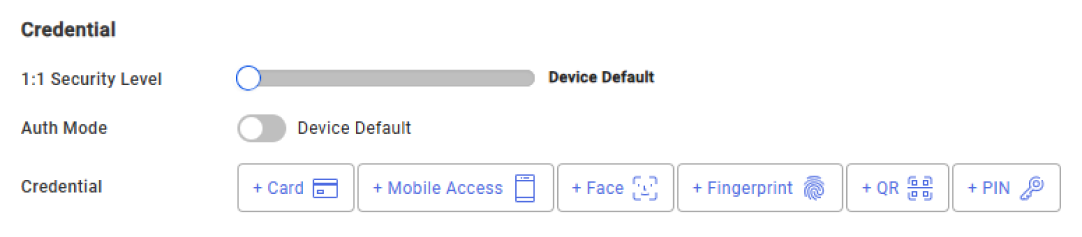

In the Credential section, the following items can be set. Refer to the descriptions for each item to set appropriate user permissions.

Enroll credentials and set the appropriate security level in 1:1 Security Level. A higher security level may lead to a lower authentication rate or a higher false rejection rate (FRR).

Credential: Data used to identify users. Digital signatures, smart cards, biometric data, user names, passwords, etc. are common examples of credentials.

Info

• Mobile access cards must be linked with the AirPop portal to be used. For more information regarding the Airfob Portal and mobile access card use, refer to the following.

Eroll credentials

The method to enroll user credentials is as follows. Credentials can be enrolled in various forms such as fingerprints, faces, cards, and passwords.

Set Security Level→ Read more

You can grant separate security levels to users regardless of the biometric 1:N security level set on the device.

Authentication Mode Settings→ Read more

Set the device default or individual private authentication mode to apply different authentication methods for each user.

Enroll Fingerprint→ Read more

You can enroll the user's fingerprint as a means of authentication for access control. Enroll the user's fingerprint information through a device that supports fingerprint authentication.

Enroll Face→ Read more

You can enroll the user's face as a means of authentication for access control. Facial enrollment is an authentication method that captures the user's face with a camera.

Enroll Access Card→ Read more

Guide users on how to enroll CSN, Wiegand, and smart cards.

Enroll Mobile Access Cards→ Read more

Integrating with Suprema's Airfob Portal enables issuing mobile access cards to users.

Enroll QR/Barcode→ Read more

Guide to registering BioStar X QR generation and external issuance QR/Barcode as user authentication methods.

Enroll PIN→ Read more

Guide users on how to individually enroll a PIN or bulk enroll via CSV import.

Next step

Check how to set the user's access permissions in the Permission section.

In the Advanced section, you can set the message to display on the device when the user accesses it or exclude that user from synchronization when linking with Directory Service.

Check how to edit user information.
