Authentication Mode Settings

Users can flexibly set authentication methods. You can use the default authentication method set on the device or designate individual authentication modes tailored to each user. Additionally, the extended authentication mode, which includes both facial and fingerprint authentication, enhances security levels.

Device defaults​

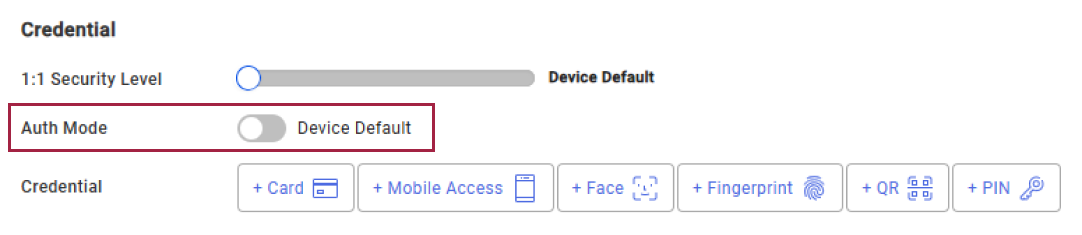

Setting the Auth Mode option to Device Default allows for authentication based on the method configured on the device.

Private authentication mode​

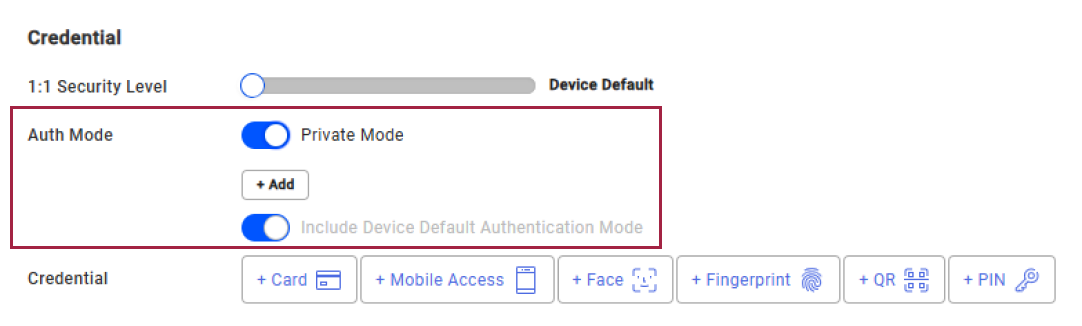

Setting the Auth Mode option to Private Mode enables different authentication methods for each user.

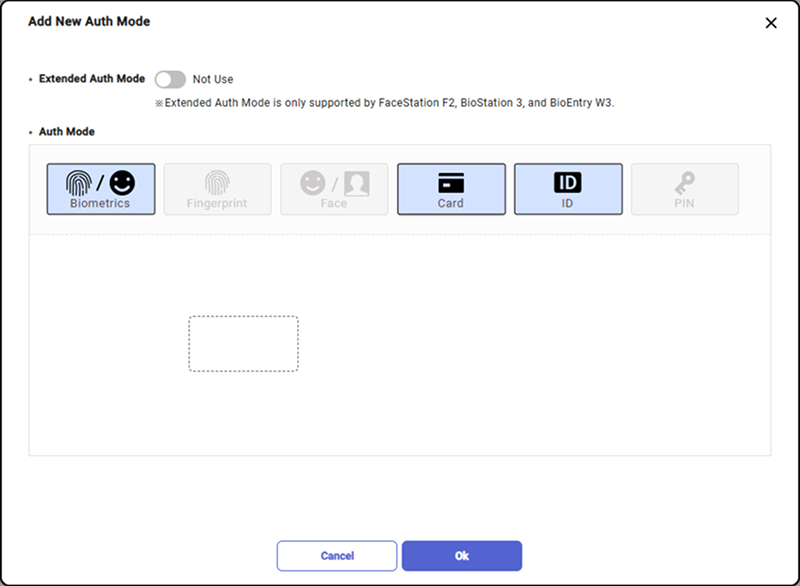

Click the + Add button to open the Add New Auth Mode window. Configure the desired authentication methods.

  • Extended Auth Mode: Set whether to use the extended authentication mode. The extended authentication mode allows for a combination of facial and fingerprint authentication methods.

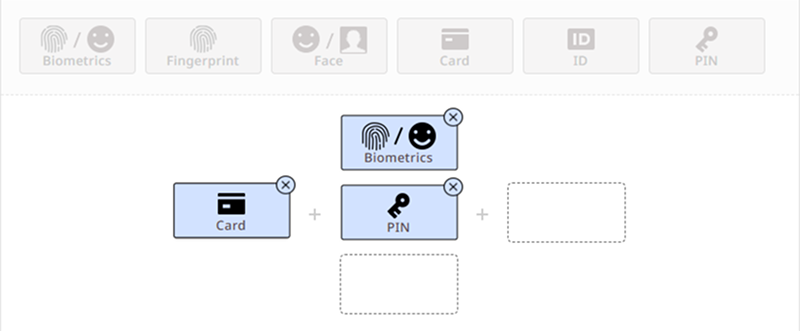

  • Auth Mode: Set the authentication methods using drag and drop.

To enroll the configured authentication methods, click the Apply button.

Info

  • The Extended Auth Mode option is supported on the FaceStation F2, BioStation 3, and BioEntry W3.

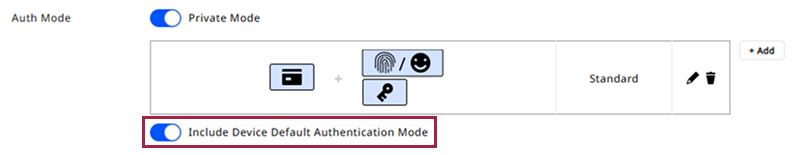

  • Setting Include Device Default Authentication Mode allows the use of both the authentication modes set on the device and the private authentication modes configured in BioStar X.

  • Setting Exclude Device Default Authentication Mode allows only the private authentication modes set in BioStar X to be used.
