Interlock Zone

Interlock zone is an access control method used in areas where security is essential. This zone has two or more doors and operates as follows:

• Monitor the status of each door in real-time via door sensors and relays.

• If one door is open or unlocked, all other doors automatically enter a locked state.

• It can be set to block additional access while a user remains within the zone.

This method enhances security by preventing multiple doors from being opened simultaneously.

Info

• A single interlock zone can consist of up to 4 doors.

• Only doors configured with devices connected to CoreStation can be set as an interlock zone.

• Devices set as an interlock zone cannot be configured to another zone.

• Doors set as an interlock zone cannot be configured to any zone other than the fire alarm zone.

Register interlock zone

1. Click Settings on the Launcher page.

2. Click Advanced AC on the left sidebar.

3. Click ADD ADVANCED AC.

4. Select Interlock and click Apply.

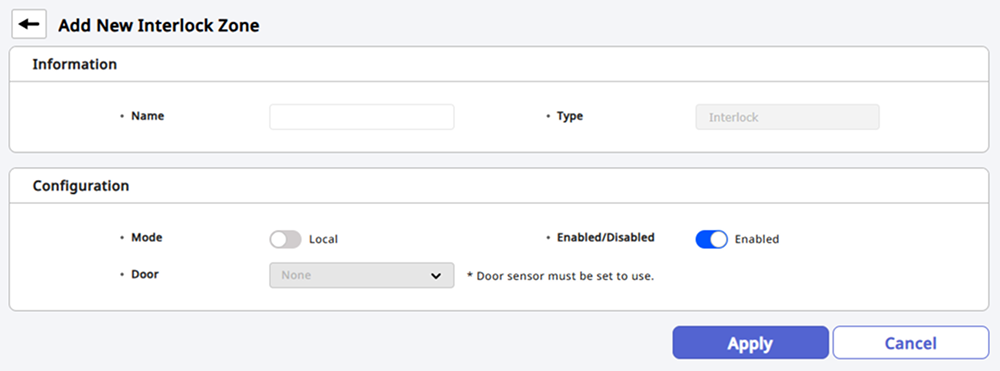

5. Enter the name of the interlock zone to be added in the Info section.

6. Set the details of the interlock zone in the Settings section. For more information, refer to the following.

7. In the Option section, you can set it so that access to the zone is not allowed if a user is present within the zone.

8. In the Alarm section, configure the actions to be performed when specific events occur in the interlock zone.

Info

The Option and Alarm sections can only be used if the Door option is set in the Settings section.

Setting options guide

You can change the interlock zone settings.

• Set the scope of the zone with Mode. The interlock zone only supports Local mode and can only set zones with devices connected to CoreStation via RS-485.

• Enable or temporarily deactivate zone settings with Enabled / Disable.

• Door: Select the doors to designate as an interlock zone. You must select at least 2 or more doors, and only doors with connected door sensors can be added.
