Scheduled Unlock Zone

This guide describes how to set scheduled unlock zones. Scheduled unlock zones provide a feature to open doors at specific times. This feature enhances access control and is useful for allowing access during certain time periods.

Info

Scheduled unlock zones only support Local mode.

Register scheduled unlock zone​

  1. Click Settings on the Launcher page.

  2. Click Advanced AC on the left sidebar.

  3. Click ADD ADVANCED AC.

  4. Select Scheduled Unlock and click Apply.

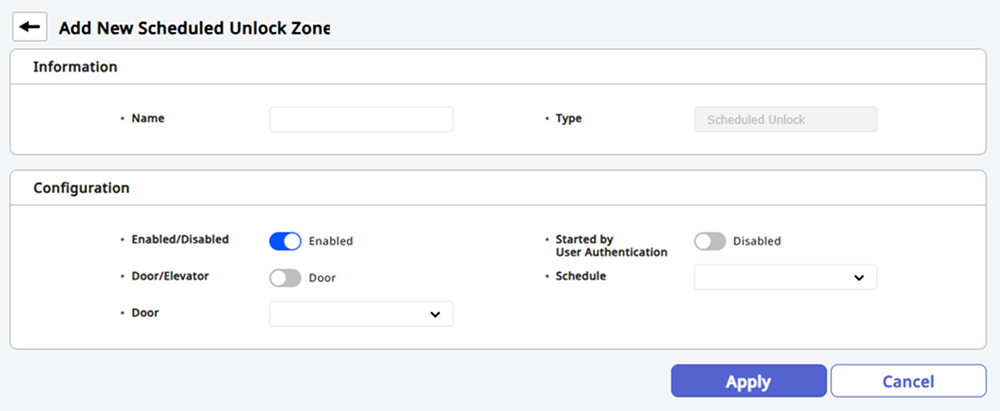

  5. Enter the name of the scheduled unlock zone to be added in the Info section.

  6. Set the details of the scheduled unlock zone in the Settings section. For more information, refer to the following.

  7. Select the access group that can start the scheduled unlock in the Scheduled Unlock Authentication section.

  8. After completing all settings, click Apply at the bottom of the screen.

Setting options guide​

You can change the scheduled unlock zone settings.

  • Enabled / Disable: You can activate or temporarily deactivate the scheduled unlock zone settings.

  • Started by User Authentication: When set to Enabled, users belonging to the access group must authenticate according to the specified schedule to initiate the scheduled unlock.

  • Door/Elevator: You can designate a door or elevator as a scheduled unlock zone.

    • Selecting Door activates the list of doors. Select the doors to designate as a scheduled unlock zone. Multiple doors can be selected.

    • Selecting Elevator activates the list of elevators. Select the elevators to designate as a scheduled unlock zone. Multiple elevators can be selected.

  • Schedule: Select a schedule. If the desired schedule is not available, click + Add Schedule to add one.

  • Floor: You can select the floors for the selected elevator.

Info

  • In Local mode, you can configure a scheduled unlock zone by selecting multiple doors.

  • If you select an elevator that already belongs to another scheduled unlock zone, you cannot configure duplicate settings on the same floor.

  • For more information about schedule settings, refer to the following.
