Manage Cards
You can check the issuance status of the card, change the Wiegand card data format, and manage the deletion history of CSN mobile cards.
Card Management
-
Click Settings on the Launcher page.
-
Click Credential → Card in the left sidebar.
-

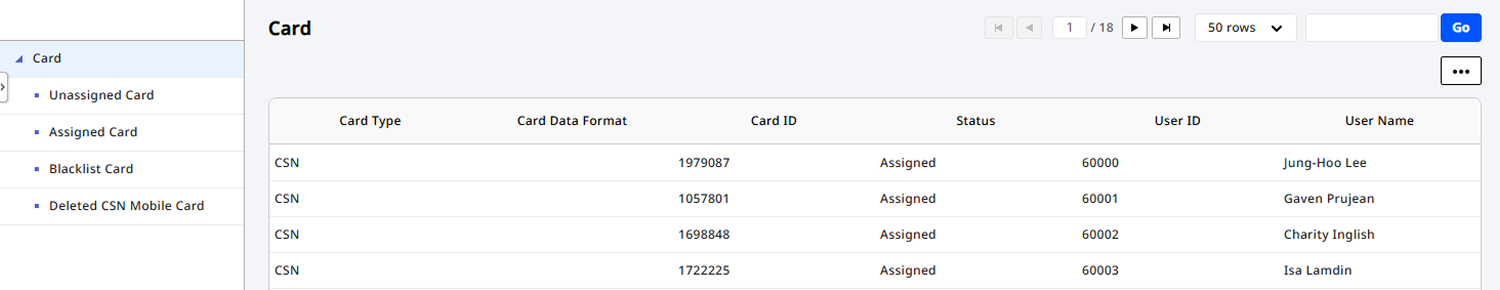

You can see the enrolled cards on the card list screen.
Click the issuance status on the left side of the screen to filter by card issuance status. The card issuance statuses are as follows:
-
Unassigned Card: Card that is not assigned to any user.
-
Assigned Card: Card assigned to a specific user. You can check the ID and name of the assigned user on the card list.
-
Blacklist Card: Card registered on the blacklist. The cardholder cannot authenticate for access.
-
Deleted CSN Mobile Card: Deleted mobile access card.
If you have blocked a user's card, you can check the card information in the Blacklist Card list. To unblock, select the desired card and click Unblocked.
Change Wiegand card data format
You can change the Wiegand card data format in use all at once.
Changing the data format of cards already assigned to users will also occur, so be cautious.
-
Click Settings on the Launcher page.
-
Click Credential → Card in the left sidebar.
-
Click at the top right of the card list and select Change All Wiegand Format.
-

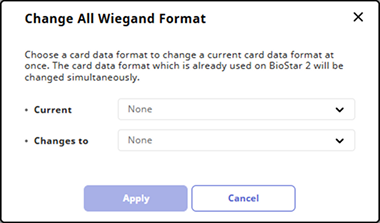

When the Change All Wiegand Format window appears, select the card data format you want to change from the Current list.
-
Select the desired card data format from the Changes to list.
-
Click Apply to change the card data format.
CSN Mobile Card Deletion Management Guidelines
When using CSN mobile cards integrated with the Airfob Portal Regular Site in BioStar X, if a user deletes a card, the same card ID could be reissued to another user. However, this could lead to an issue where the original cardholder could still access the premises even after the card has been reissued.
To address this issue, BioStar X provides the feature to manage deletion history after deleting CSN mobile cards.
Separate management of deleted CSN mobile cards

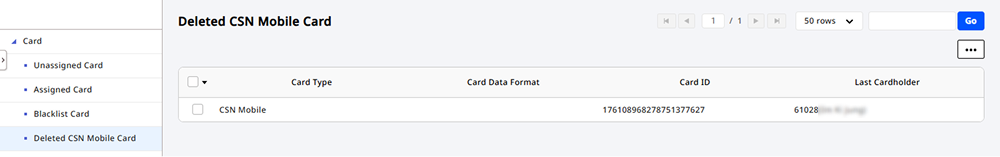

Deleted CSN mobile cards are recorded in the Settings → Card → Deleted CSN Mobile Card list. In this list, you can view the Card Type, Card Data Format, Card ID, and Last Cardholder.
Preventing reissuance of deleted card IDs
If there is a history of deletion for a CSN mobile card, the system will prevent that card ID from being reissued to another user.
If you wish to issue a card with a deleted card ID, you can only do so after excluding the corresponding CSN mobile card from the Deleted CSN Mobile Card list.
CSN mobile cards included in the Deleted CSN Mobile Card list cannot be deleted from the Unassigned Card list.
To delete a card from the Unassigned Card list, first remove the card from the Deleted CSN Mobile Card list and then proceed with the deletion.
