Register Elevator

This document provides guidance on how to register and set up an elevator. The elevator is used for floor control and forms part of the access control system along with the entrance door. Registering the elevator allows control over access permissions for specific floors.

Before start​

  • Set the access level, access group, and floor level for access control before registering the elevator. For more information, refer to the following.

  • Register the device before registering the elevator. For more information about device registration, refer to the following.

Register elevator​

  1. Click Settings on the Launcher page.

  2. Click Elevator on the left sidebar of the screen.

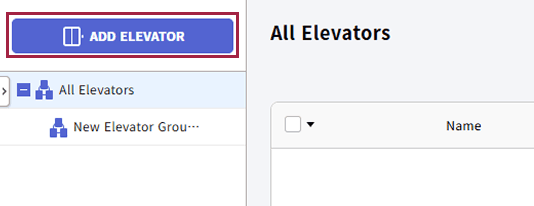

  3. Once the Add New Elevator screen appears, set each section item in order.

    • Information: Set the basic information for the elevator. For more information, refer to the following.

    • Detail: Set the detailed information for the elevator. For more information, refer to the following.

    • Option: Set additional options. For more information, refer to the following.

    • Alarm: You can set the alarm to trigger or block device usage when an anti-passback violation occurs. For more information, refer to the following.

  4. Once all configurations are complete, click the Apply button at the bottom of the screen.

Set basic information​

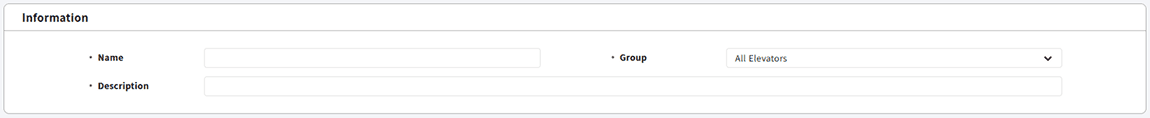

In the Information section, you can enter or change the elevator's name, group, and description.

  • Name: Enter the elevator's name. It is convenient to enter a name that specifies the elevator's location for easier management.

  • Group: Select the elevator group.

  • Description: Enter a brief description of the elevator.

Info

  • The elevator name can be up to 48 characters long.

  • For more information about registering elevator groups, refer to the following.

Set detailed information​

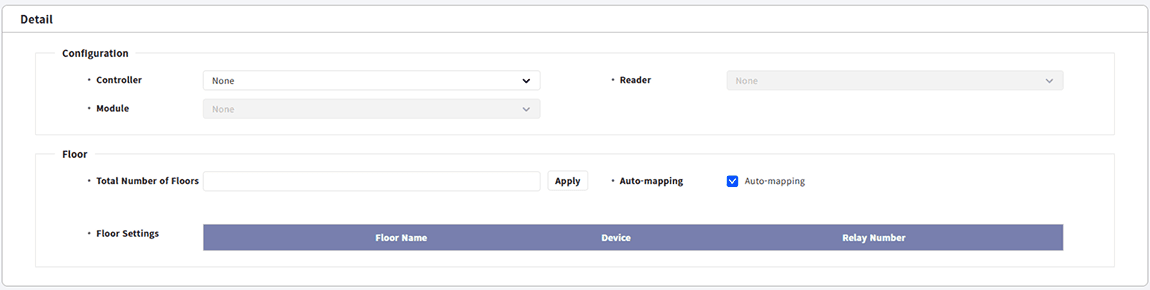

In the Detail section, you can set the elevator's detailed information, such as devices connected to the elevator and floor information.

  • Controller: Select the device that will control access permissions for the elevator.

  • Reader: Select the device to be used for authentication.

  • Module: Select the device that will control the elevator button relay.

  • Total Number of Floors: Enter the total number of floors the elevator can access. You can enter up to 192 floors.

  • Auto-mapping: Select whether to use automatic mapping. Automatic mapping assigns relay numbers sequentially.

  • Floor Settings: Set the floor names and relay numbers that will control the floors.

Info

  • Only master devices can be selected for the Controller option.

    BioEntry Plus, BioEntry W, and BioLite Net cannot be set as controllers.

  • For the Reader option, only master devices, slave devices, and Wiegand devices can be selected, with a maximum of 4 selections allowed.

    The OM-120 model cannot be set as a reader.

  • For the Module option, only the OM-120, DM-20, IM-120, and SIO2 models can be selected.

Set additional options​

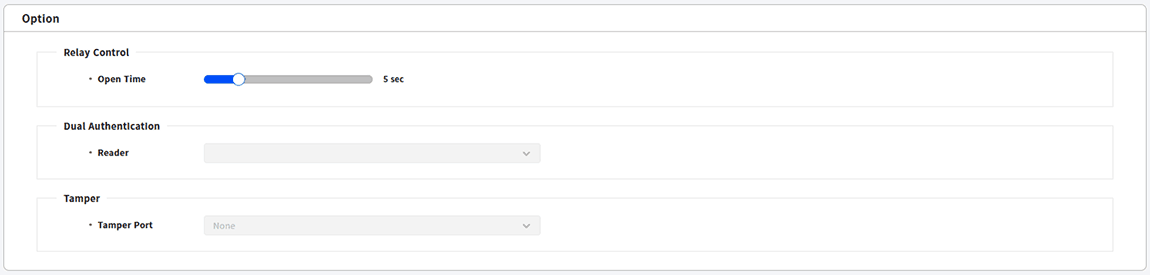

In the Option section, you can set the additional options for the elevator.

  • Relay Control: Set options for the floor button relay.

    • Open Time: Set the time for which the floor button remains active after authentication is complete. After this time, the relay will not signal the floor button.

  • Dual Authentication: You can set it so that two people (a general user and an administrator) must authenticate their credentials to activate the floor button.

    • Device: Select the device to use for dual authentication. To not use dual authentication, select None.

    • Schedule: Select the schedule for using dual authentication. If the desired schedule is not available, click + Add Schedule to add one.

    • Approval Type: Set the order of administrator authentication.

      • None: Two authentications are required regardless of the authentication group.

      • Last: The general user must authenticate first, followed by an authenticated user included in the set authentication group.

    • Approval Group: Set the group to which the administrator belongs. This option can be used when Approval Type is set to Last.

    • Timeout: Set the waiting time between the first and second authentications. If the second authentication is not completed within the set time, the floor button will not be activated.

    Info

    • To change dual authentication for devices set in restricted areas, modify the settings in the following menu: Settings → Advanced AC → Occupancy Limit. Settings → Advanced AC → Occupancy Limit

      For more information about Occupancy Limit settings, refer to the following.

    • For more information about schedule settings, refer to the following.

  • Tamper: Set the port to output the tamper signal.

Set alarms​

In the Alarm section, you can set actions to be performed when tamper inputs or separate input signals are detected.

  • Trigger: Set the detection of tamper inputs or separate input signals.

  • Action: Set the actions to be performed based on the conditions set. You can activate all elevator floor buttons or output specific signals.
