Manage Elevator Group

This guide describes how to set up groups to manage multiple elevators easily. This guide describes how to configure group settings to easily manage multiple elevators. Elevator groups allow for managing several elevators as one unit.

Tip

Registering the group name based on elevator location makes management convenient.

Add elevator group​

  1. Click Settings on the Launcher page.

  2. Click Elevator on the left sidebar of the screen.

  3. Select All Elevators in the elevator list and right-click.

  4. Click Add Group in the popup menu.

  5. Register the desired group name.

Info

  • A maximum of 8 levels can be created for elevator groups.

  • The elevator group name can be up to 48 characters long.

Change elevator group name​

  1. Click Settings on the Launcher page.

  2. Click Elevator on the left sidebar of the screen.

  3. Select the group whose name you want to change from the elevator list and right-click.

  4. Click Rename Group in the popup menu.

  5. Enter the new group name.

Info

The elevator group name can be up to 48 characters long.

Delete elevator group​

  1. Click Settings on the Launcher page.

  2. Click Elevator on the left sidebar of the screen.

  3. Select the group you want to delete from the elevator list and right-click.

  4. Click Delete Group in the popup menu.

Caution

Deleting an elevator group will remove all elevators included in the group. To avoid deleting elevators, first move them to another group before deleting the group.

Add elevator to group​

Adding from the elevator list​

  1. Click Settings on the Launcher page.

  2. Click Elevator on the left sidebar of the screen.

  3. Select the elevator to add to the group from the elevator list and drag it to the desired group.

The selected elevator moves to the group.

Adding from elevator information​

  1. Click Settings on the Launcher page.

  2. Click Elevator on the left sidebar of the screen.

  3. Click the elevator to add to the group from the elevator list on the right side.

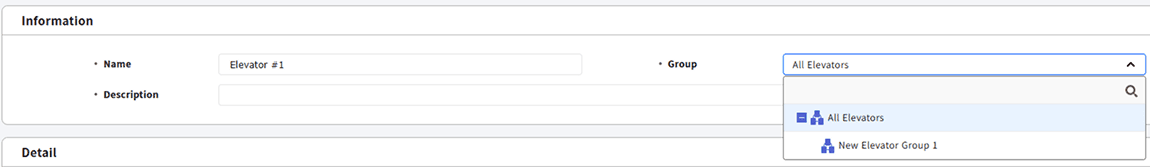

  4. When the elevator information modification screen appears, click the Group option in the Information section.

  5. Select the desired group.

  6. Click Apply at the bottom of the screen.
