System Backup

The System Backup menu backs up important information such as BioStar X's database, various settings, key values, etc.

Info

If the MSSQL database and BioStar X are installed on different PCs, BioStar X System Backup and Restore cannot be used.

  1. Click Settings on the Launcher page.

  2. General

  3. Edit the necessary fields.

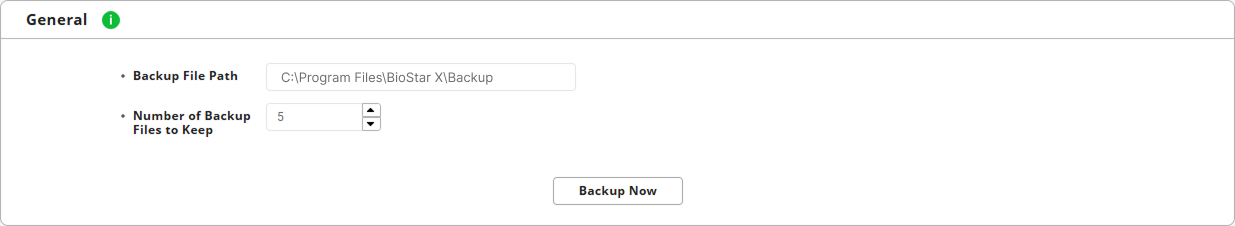

General​

Set the necessary items for System Backup.

  • Backup File Path: Set the path to save the backup file.

    Info

    The save path must be set to a directory that has already been created.

  • Number of Backup Files to Keep: Set the maximum number of backup files.

    Info

    • If the maximum number of backups are exceeded, the oldest backup files are automatically deleted.

    • Number of Backup Files to Keep, only numbers between 1 and 100 are entered.

  • Backup Now: To back up manually, click Backup Now.

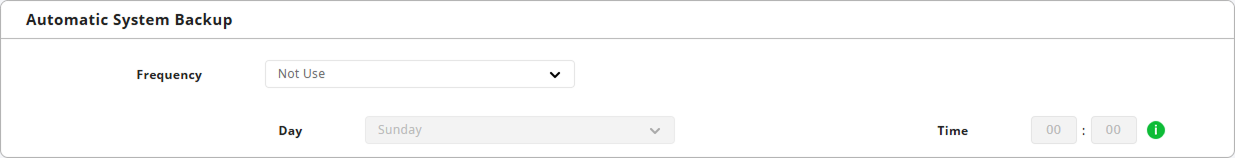

Automatic System Backup​

Set the system to back up automatically.

  • Frequency: Select the automatic system backup frequency as Daily / Weekly / Monthly.

  • Day: When Frequency is set to Weekly, set the day of the week to automatically system backup.

  • Date: When Frequency is set to Monthly, set the date of the month to automatically system backup.

    Info

    When set to the 29th, 30th, or 31st, automatic system backup will not run for months without the corresponding date.

  • Time: Set the time to automatically system backup.

    Info

    Based on the time zone set in BioStar X.

  1. Click Apply to save the settings.
