보조 데이터베이스 추가하기

커뮤니케이션 서버를 추가했을 때 메인 서버의 부하를 줄이기 위해 커뮤니케이션 서버와 연동할 보조 데이터베이스를 추가하고 연결하는 방법을 안내합니다.

알아두기

보조 데이터베이스를 추가하려면 멀티 커뮤니케이션 서버 라이선스가 필요합니다. 라이선스 정책에 대한 자세한 내용은 다음 문서를 참고하세요.
커뮤니케이션 서버 설치에 대한 자세한 내용은 다음 문서를 참고하세요.

시작하기 전에

MariaDB를 사용하는 환경에서 데이터베이스 간 통신할 때 IP 주소가 아닌 도메인 또는 호스트 이름을 사용한다면 다음 안내 사항을 반드시 확인하세요.

IP 주소를 사용하지 않는다면 Create user 또는 Grant 등록이 불가능할 수 있습니다.
도메인 또는 호스트 이름을 사용하여 통신한다면 반드시 localhost에 대해 user 및 권한 등록이 되어 있는지 확인하세요.
BioStar X를 간편 설치 방식으로 설치했다면 루트(root) 계정이 localhost로만 user 및 권한이 등록되어 있기 때문에 해당 서버의 IP 주소나 127.0.0.1로 추가 등록해야 합니다.

등록 방법

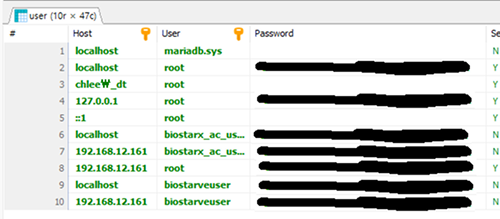

호스트가 127.0.0.1이고, User가 root인 계정에 대해서 비밀번호가 설정되어 있는지 확인하고, 설정되어 있지 않다면 반드시 비밀번호를 설정하고 권한을 부여하세요.

호스트가 127.0.0.1이고, User가 root인 계정에 대해서 비밀번호가 설정되어 있는지 확인하세요.
```
SELECT * FROM mysql.user;
```
빈칸이면 비밀번호가 설정되어 있지 않기 때문에 다음 항목에 있는 쿼리를 실행해서 비밀번호 추가 및 권한 부여를 반드시 진행하세요.

호스트가 127.0.0.1이고, User가 root인 계정에 대해서 비밀번호를 설정하고 권한을 부여하세요.

ALTER USER 'root'@'127.0.0.1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO 'root'@'127.0.0.1';

CREATE USER '<Main DB AC User>'@'127.0.0.1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO '<Main DB AC User>'@'127.0.0.1';
CREATE USER '<Main DB AC User>'@'::1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO '<Main DB AC User>'@'::1';

CREATE USER '<Main DB TA User>'@'127.0.0.1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO '<Main DB TA User>'@'127.0.0.1';
CREATE USER '<Main DB TA User>'@'::1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO '<Main DB TA User>'@'::1';

CREATE USER '<Main DB VE User>'@'127.0.0.1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO '<Main DB VE User>'@'127.0.0.1';
CREATE USER '<Main DB VE User>'@'::1' IDENTIFIED BY '<Main DB AC Schema Password>';
GRANT ALL PRIVILEGES ON *.* TO '<Main DB VE User>'@'::1';

FLUSH PRIVILEGES;

Example
ALTER USER 'root'@'127.0.0.1' IDENTIFIED BY 'admin1234!';
GRANT ALL PRIVILEGES ON *.* TO 'root'@'127.0.0.1';
FLUSH PRIVILEGES;

IP 주소로 통신 설정

아래 설정을 통해 강제로 IP 주소로 통신하도록 설정할 수 있습니다.

BioStar X를 설치한 다음 경로로 이동하세요.

C:\Program Files\BioStar X\ta\mariadb-11.4.4-winx64

my.cnf 파일을 권리자 권한으로 열고 [mysqld] 섹션에 skip-name-resolve 옵션을 추가하세요.

[mysqld]
port = 3312
character-set-server=utf8
collation-server=utf8_unicode_ci
socket = /tmp/mysql.sock
skip-external-locking
key_buffer_size = 32M
max_allowed_packet = 64M
...
skip-name-resolve

MariaDB 서비스를 재시작하세요.

보조 데이터베이스 추가

보조 데이터베이스를 추가하는 방법을 안내합니다. 사용하는 데이터베이스 종류에 따라 MariaDB와 SQL Server, 두 가지 방법이 있습니다.

MariaDB

메인 데이터베이스

신규 보조 데이터베이스에서 메인 데이터베이스로 접근할 수 있도록 계정 및 권한을 부여하세요.

CREATE USER '<Main DB AC Schema User>'@'<Sub DB IP>' IDENTIFIED BY '<Main DB AC Schema Password>';

GRANT ALL PRIVILEGES ON <Main DB AC Schema>.* TO '<Main DB AC Schema User>'@'<Sub DB IP>';
FLUSH PRIVILEGES;

Example
CREATE USER 'biostarx_ac_user'@'192.168.12.42' IDENTIFIED BY 'password';

GRANT ALL PRIVILEGES ON biostar2_ac.* TO 'biostarx_ac_user'@'192.168.12.42';
FLUSH PRIVILEGES;

보조 데이터베이스

메인 데이터베이스에서 신규 보조 데이터베이스로 접근할 수 있도록 계정 및 권한을 부여하세요.

CREATE USER '<Sub DB AC Schema User>'@'<Main DB IP>' IDENTIFIED BY '<Sub DB AC Schema Password>';

GRANT ALL PRIVILEGES ON <Sub DB AC Schema>.* TO '<Sub DB AC Schema User>'@'<Main DB IP>';
FLUSH PRIVILEGES;

Example
CREATE USER 'biostarx_ac_user'@'192.168.12.161' IDENTIFIED BY 'password';

GRANT ALL PRIVILEGES ON biostar2_ac.* TO 'biostarx_ac_user'@'192.168.12.161';
FLUSH PRIVILEGES;

FederatedX 사용 여부 확인

메인 및 보조 데이터베이스에서 아래 명령어를 실행해 FederatedX 스토리지 엔진이 활성화되어 있는지 확인하세요.

SHOW ENGINES;

쿼리 결과에 Engine : FEDERATED, Support : YES라고 표시되면 이미 설치되어 있습니다. FederatedX 스토리지 엔진이 설치되어 있지 않다면 아래 쿼리를 실행하세요.

INSTALL PLUGIN federated SONAME 'ha_federatedx';

알아두기

MariaDB를 설치한 경로 하위에서 lib/plugin 폴더에 ha_federatedx.dll 파일이 있는지 확인하세요. 일반적으로 C:\Program Files\MariaDB {version}\lib\plugin 경로에 dll 파일이 존재합니다.

서버 별칭 등록

보조 데이터베이스에 생성될 federatedX 테이블이 메인 데이터베이스의 원본 테이블에 접근할 수 있도록 서버 별칭(alias)을 등록하세요.

CREATE SERVER 'default' FOREIGN DATA WRAPPER mysql OPTIONS (HOST '<Main DB IP>', PORT <Main DB PORT>, DATABASE '<Main DB AC Schema>', USER '<Main DB AC USER>', PASSWORD '<Main DB AC USER Password>');

-- 정상 등록 확인
SELECT * FROM mysql.servers;

기존 등록한 서버 이름에 Host, Port, DB, User, Password에 대한 정보를 변경해야 한다면 Alter 문으로 수정할 수 있습니다. 일부 정보만 변경할 수도 있습니다.

ALTER SERVER 'default' OPTIONS (HOST '<Main DB IP>', PORT <Main DB PORT>, DATABASE '<Main DB AC Schema>', USER '<Main DB AC USER>', PASSWORD '<Main DB AC USER Password>');

Example
CREATE SERVER 'default' FOREIGN DATA WRAPPER mysql OPTIONS (HOST '192.168.12.161', PORT 3312, DATABASE 'biostar2_ac', USER 'biostarx_ac_user', PASSWORD 'password');

ALTER SERVER 'default' OPTIONS (HOST '192.168.12.161', PORT 3312, DATABASE 'biostar2_ac', USER 'biostarx_ac_usermt__fttid__', PASSWORD 'password');

테이블 link 설정

보조 데이터베이스에 필요한 테이블은 아래 순서대로 진행해서 메인 데이터베이스의 테이블을 보조 데이터베이스에 link 설정하세요.

아래는 메인 데이터베이스에서 CREATE TABLE 문 쿼리 생성 쿼리입니다.

select
  concat(
      'CREATE TABLE IF NOT EXISTS <SubDB_AC_Database_Schema>.', table_name,
      ' ENGINE=FEDERATED ',
      'CONNECTION=''default/', table_name, ''';'
  ) as create_table_sql
from information_schema.TABLES
where TABLE_SCHEMA = '<MainDB_AC_Database_Schema>'
    AND TABLE_TYPE = 'BASE TABLE'
    AND NOT TABLE_NAME REGEXP '^t_lg[0-9]{6}$'
    AND NOT TABLE_NAME REGEXP '^t_almevt[0-9]{6}$'
    AND NOT TABLE_NAME REGEXP '^t_lgalmtrstrc[0-9]{6}$'
ORDER BY TABLE_NAME;

알아두기

FederatedX 특성 상 Table_type이 'BASE TABLE'으로 설정하는 것을 권장합니다. VIEW type도 가능하지만 권장하지는 않습니다.

위 쿼리를 통해서 생성된 아래 CREATE 문을 보조 데이터베이스에 반드시 입력하세요.

CREATE TABLE

CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.mt__fttid__ ENGINE=FEDERATED CONNECTION='default/mt__fttid__';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.mt__lksrch ENGINE=FEDERATED CONNECTION='default/mt__lksrch';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.temp_acsgrusr ENGINE=FEDERATED CONNECTION='default/temp_acsgrusr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.temp_doubleauthusr ENGINE=FEDERATED CONNECTION='default/temp_doubleauthusr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.temp_operator ENGINE=FEDERATED CONNECTION='default/temp_operator';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acsgr ENGINE=FEDERATED CONNECTION='default/t_acsgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acsgrlvls ENGINE=FEDERATED CONNECTION='default/t_acsgrlvls';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acsgrsent ENGINE=FEDERATED CONNECTION='default/t_acsgrsent';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acsgruss ENGINE=FEDERATED CONNECTION='default/t_acsgruss';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acslvl ENGINE=FEDERATED CONNECTION='default/t_acslvl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acslvlitm ENGINE=FEDERATED CONNECTION='default/t_acslvlitm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acslvlitmdrs ENGINE=FEDERATED CONNECTION='default/t_acslvlitmdrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acslvlitms ENGINE=FEDERATED CONNECTION='default/t_acslvlitms';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_acslvlsent ENGINE=FEDERATED CONNECTION='default/t_acslvlsent';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_adserver_setting ENGINE=FEDERATED CONNECTION='default/t_adserver_setting';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_adt ENGINE=FEDERATED CONNECTION='default/t_adt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_advusrcrd ENGINE=FEDERATED CONNECTION='default/t_advusrcrd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_advusrgrp ENGINE=FEDERATED CONNECTION='default/t_advusrgrp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_ad_column ENGINE=FEDERATED CONNECTION='default/t_ad_column';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_ad_group_filter ENGINE=FEDERATED CONNECTION='default/t_ad_group_filter';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_ad_group_filter_setting ENGINE=FEDERATED CONNECTION='default/t_ad_group_filter_setting';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_ad_usrmapping ENGINE=FEDERATED CONNECTION='default/t_ad_usrmapping';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almact ENGINE=FEDERATED CONNECTION='default/t_almact';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almdr ENGINE=FEDERATED CONNECTION='default/t_almdr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almeml ENGINE=FEDERATED CONNECTION='default/t_almeml';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almmsg ENGINE=FEDERATED CONNECTION='default/t_almmsg';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almset ENGINE=FEDERATED CONNECTION='default/t_almset';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almsetevt ENGINE=FEDERATED CONNECTION='default/t_almsetevt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almsetobj ENGINE=FEDERATED CONNECTION='default/t_almsetobj';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almsmtpset ENGINE=FEDERATED CONNECTION='default/t_almsmtpset';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_almsndset ENGINE=FEDERATED CONNECTION='default/t_almsndset';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_apbbpacgr ENGINE=FEDERATED CONNECTION='default/t_apbbpacgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_area_info ENGINE=FEDERATED CONNECTION='default/t_area_info';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_atmsyndevgrs ENGINE=FEDERATED CONNECTION='default/t_atmsyndevgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_atmsyndevs ENGINE=FEDERATED CONNECTION='default/t_atmsyndevs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_audit ENGINE=FEDERATED CONNECTION='default/t_audit';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_authgrp ENGINE=FEDERATED CONNECTION='default/t_authgrp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_blkl ENGINE=FEDERATED CONNECTION='default/t_blkl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_bzoup ENGINE=FEDERATED CONNECTION='default/t_bzoup';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crd ENGINE=FEDERATED CONNECTION='default/t_crd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdidasm ENGINE=FEDERATED CONNECTION='default/t_crdidasm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdisshis ENGINE=FEDERATED CONNECTION='default/t_crdisshis';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdlay ENGINE=FEDERATED CONNECTION='default/t_crdlay';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdlay_felica ENGINE=FEDERATED CONNECTION='default/t_crdlay_felica';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdmoachis ENGINE=FEDERATED CONNECTION='default/t_crdmoachis';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdt ENGINE=FEDERATED CONNECTION='default/t_crdt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdtbin ENGINE=FEDERATED CONNECTION='default/t_crdtbin';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_crdtyp ENGINE=FEDERATED CONNECTION='default/t_crdtyp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_cusfldtyp ENGINE=FEDERATED CONNECTION='default/t_cusfldtyp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_cusfldtyp_vst ENGINE=FEDERATED CONNECTION='default/t_cusfldtyp_vst';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dashboard_setting ENGINE=FEDERATED CONNECTION='default/t_dashboard_setting';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dblmdacsgrs ENGINE=FEDERATED CONNECTION='default/t_dblmdacsgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dblmdflrgrs ENGINE=FEDERATED CONNECTION='default/t_dblmdflrgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dev ENGINE=FEDERATED CONNECTION='default/t_dev';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dev3rdprnt ENGINE=FEDERATED CONNECTION='default/t_dev3rdprnt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devcap ENGINE=FEDERATED CONNECTION='default/t_devcap';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devcaps ENGINE=FEDERATED CONNECTION='default/t_devcaps';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devcapsfrdev ENGINE=FEDERATED CONNECTION='default/t_devcapsfrdev';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devforcecmd ENGINE=FEDERATED CONNECTION='default/t_devforcecmd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devgr ENGINE=FEDERATED CONNECTION='default/t_devgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devinactive ENGINE=FEDERATED CONNECTION='default/t_devinactive';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devoprmd ENGINE=FEDERATED CONNECTION='default/t_devoprmd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devoprt ENGINE=FEDERATED CONNECTION='default/t_devoprt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devrs4chns ENGINE=FEDERATED CONNECTION='default/t_devrs4chns';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devthm ENGINE=FEDERATED CONNECTION='default/t_devthm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devtposdp ENGINE=FEDERATED CONNECTION='default/t_devtposdp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devtyp ENGINE=FEDERATED CONNECTION='default/t_devtyp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_devwgd ENGINE=FEDERATED CONNECTION='default/t_devwgd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dev_fllr ENGINE=FEDERATED CONNECTION='default/t_dev_fllr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dr ENGINE=FEDERATED CONNECTION='default/t_dr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_drgr ENGINE=FEDERATED CONNECTION='default/t_drgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_drtrgact ENGINE=FEDERATED CONNECTION='default/t_drtrgact';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_drzn ENGINE=FEDERATED CONNECTION='default/t_drzn';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dr_flr_map ENGINE=FEDERATED CONNECTION='default/t_dr_flr_map';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_dst ENGINE=FEDERATED CONNECTION='default/t_dst';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_elvt ENGINE=FEDERATED CONNECTION='default/t_elvt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_elvtdevs ENGINE=FEDERATED CONNECTION='default/t_elvtdevs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_elvtgr ENGINE=FEDERATED CONNECTION='default/t_elvtgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_elvttrgact ENGINE=FEDERATED CONNECTION='default/t_elvttrgact';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_email_content ENGINE=FEDERATED CONNECTION='default/t_email_content';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_emlst ENGINE=FEDERATED CONNECTION='default/t_emlst';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_encmgr ENGINE=FEDERATED CONNECTION='default/t_encmgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_erldev ENGINE=FEDERATED CONNECTION='default/t_erldev';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_etrdevs ENGINE=FEDERATED CONNECTION='default/t_etrdevs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evtflt ENGINE=FEDERATED CONNECTION='default/t_evtflt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evtprio ENGINE=FEDERATED CONNECTION='default/t_evtprio';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evtprioaltdevs ENGINE=FEDERATED CONNECTION='default/t_evtprioaltdevs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evtpriosnd ENGINE=FEDERATED CONNECTION='default/t_evtpriosnd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evtspc ENGINE=FEDERATED CONNECTION='default/t_evtspc';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evttyp ENGINE=FEDERATED CONNECTION='default/t_evttyp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_evttyp_group ENGINE=FEDERATED CONNECTION='default/t_evttyp_group';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_exdevs ENGINE=FEDERATED CONNECTION='default/t_exdevs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_extsys ENGINE=FEDERATED CONNECTION='default/t_extsys';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_failsyncacsgrupdate ENGINE=FEDERATED CONNECTION='default/t_failsyncacsgrupdate';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_failsyncacslvlupdate ENGINE=FEDERATED CONNECTION='default/t_failsyncacslvlupdate';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_failsyncflrlvlupdate ENGINE=FEDERATED CONNECTION='default/t_failsyncflrlvlupdate';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_failsyncusrupdate ENGINE=FEDERATED CONNECTION='default/t_failsyncusrupdate';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_faldrgrs ENGINE=FEDERATED CONNECTION='default/t_faldrgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_faldrs ENGINE=FEDERATED CONNECTION='default/t_faldrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_falelvts ENGINE=FEDERATED CONNECTION='default/t_falelvts';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fclty_info ENGINE=FEDERATED CONNECTION='default/t_fclty_info';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fctmpl ENGINE=FEDERATED CONNECTION='default/t_fctmpl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flkbpacgr ENGINE=FEDERATED CONNECTION='default/t_flkbpacgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flkdrgrs ENGINE=FEDERATED CONNECTION='default/t_flkdrgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flkdrs ENGINE=FEDERATED CONNECTION='default/t_flkdrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flkelvts ENGINE=FEDERATED CONNECTION='default/t_flkelvts';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrgrlvls ENGINE=FEDERATED CONNECTION='default/t_flrgrlvls';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrlvl ENGINE=FEDERATED CONNECTION='default/t_flrlvl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrlvlitm ENGINE=FEDERATED CONNECTION='default/t_flrlvlitm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrlvlitmelvts ENGINE=FEDERATED CONNECTION='default/t_flrlvlitmelvts';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrlvlitms ENGINE=FEDERATED CONNECTION='default/t_flrlvlitms';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrlvlsent ENGINE=FEDERATED CONNECTION='default/t_flrlvlsent';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flrs ENGINE=FEDERATED CONNECTION='default/t_flrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_flr_info ENGINE=FEDERATED CONNECTION='default/t_flr_info';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fngptmpl ENGINE=FEDERATED CONNECTION='default/t_fngptmpl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fngptmplver ENGINE=FEDERATED CONNECTION='default/t_fngptmplver';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fulacgrs ENGINE=FEDERATED CONNECTION='default/t_fulacgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fuldrgrs ENGINE=FEDERATED CONNECTION='default/t_fuldrgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fuldrs ENGINE=FEDERATED CONNECTION='default/t_fuldrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_fulelvts ENGINE=FEDERATED CONNECTION='default/t_fulelvts';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_gis_door_info ENGINE=FEDERATED CONNECTION='default/t_gis_door_info';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_gis_vcm_info ENGINE=FEDERATED CONNECTION='default/t_gis_vcm_info';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_grm ENGINE=FEDERATED CONNECTION='default/t_grm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_grmel ENGINE=FEDERATED CONNECTION='default/t_grmel';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_grmeltyp ENGINE=FEDERATED CONNECTION='default/t_grmeltyp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_grmelvid ENGINE=FEDERATED CONNECTION='default/t_grmelvid';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_grmgr ENGINE=FEDERATED CONNECTION='default/t_grmgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_hol ENGINE=FEDERATED CONNECTION='default/t_hol';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_holgr ENGINE=FEDERATED CONNECTION='default/t_holgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_holsch ENGINE=FEDERATED CONNECTION='default/t_holsch';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_holschtmprds ENGINE=FEDERATED CONNECTION='default/t_holschtmprds';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_imglgjb ENGINE=FEDERATED CONNECTION='default/t_imglgjb';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_inpcfg ENGINE=FEDERATED CONNECTION='default/t_inpcfg';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_inpcfgex ENGINE=FEDERATED CONNECTION='default/t_inpcfgex';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_ledoup ENGINE=FEDERATED CONNECTION='default/t_ledoup';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lgserverevt ENGINE=FEDERATED CONNECTION='default/t_lgserverevt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lgtbidx ENGINE=FEDERATED CONNECTION='default/t_lgtbidx';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lgupdhis ENGINE=FEDERATED CONNECTION='default/t_lgupdhis';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_licenses ENGINE=FEDERATED CONNECTION='default/t_licenses';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lstlog ENGINE=FEDERATED CONNECTION='default/t_lstlog';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lstsynsta ENGINE=FEDERATED CONNECTION='default/t_lstsynsta';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lstusrauth ENGINE=FEDERATED CONNECTION='default/t_lstusrauth';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_lulacgrs ENGINE=FEDERATED CONNECTION='default/t_lulacgrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_mblcrd ENGINE=FEDERATED CONNECTION='default/t_mblcrd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_mobile_credential ENGINE=FEDERATED CONNECTION='default/t_mobile_credential';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_mobile_picture_hash ENGINE=FEDERATED CONNECTION='default/t_mobile_picture_hash';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_mxdt ENGINE=FEDERATED CONNECTION='default/t_mxdt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_nested_dev ENGINE=FEDERATED CONNECTION='default/t_nested_dev';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_nested_devgr ENGINE=FEDERATED CONNECTION='default/t_nested_devgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_nested_drgr ENGINE=FEDERATED CONNECTION='default/t_nested_drgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_nested_elvtgr ENGINE=FEDERATED CONNECTION='default/t_nested_elvtgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_nested_grmgr ENGINE=FEDERATED CONNECTION='default/t_nested_grmgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_nested_usrgr ENGINE=FEDERATED CONNECTION='default/t_nested_usrgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_ntc ENGINE=FEDERATED CONNECTION='default/t_ntc';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_occpbpacgr ENGINE=FEDERATED CONNECTION='default/t_occpbpacgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_oupsig ENGINE=FEDERATED CONNECTION='default/t_oupsig';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_perm ENGINE=FEDERATED CONNECTION='default/t_perm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_polygon_info ENGINE=FEDERATED CONNECTION='default/t_polygon_info';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_prf ENGINE=FEDERATED CONNECTION='default/t_prf';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_qcact ENGINE=FEDERATED CONNECTION='default/t_qcact';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_qcactalm ENGINE=FEDERATED CONNECTION='default/t_qcactalm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_qcactperm ENGINE=FEDERATED CONNECTION='default/t_qcactperm';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_reporttempid ENGINE=FEDERATED CONNECTION='default/t_reporttempid';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_reporttempid_header ENGINE=FEDERATED CONNECTION='default/t_reporttempid_header';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_export_setting ENGINE=FEDERATED CONNECTION='default/t_report_export_setting';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_print_setting ENGINE=FEDERATED CONNECTION='default/t_report_print_setting';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_schedules ENGINE=FEDERATED CONNECTION='default/t_report_schedules';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_setting ENGINE=FEDERATED CONNECTION='default/t_report_setting';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_template ENGINE=FEDERATED CONNECTION='default/t_report_template';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_template_group_filter ENGINE=FEDERATED CONNECTION='default/t_report_template_group_filter';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_report_template_user_filter ENGINE=FEDERATED CONNECTION='default/t_report_template_user_filter';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_rmjb ENGINE=FEDERATED CONNECTION='default/t_rmjb';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_rmjbev ENGINE=FEDERATED CONNECTION='default/t_rmjbev';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_rmjbzn ENGINE=FEDERATED CONNECTION='default/t_rmjbzn';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_sch ENGINE=FEDERATED CONNECTION='default/t_sch';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_schdl ENGINE=FEDERATED CONNECTION='default/t_schdl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_schdltmprds ENGINE=FEDERATED CONNECTION='default/t_schdltmprds';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_shf ENGINE=FEDERATED CONNECTION='default/t_shf';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_shfgr ENGINE=FEDERATED CONNECTION='default/t_shfgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_shfgrshfs ENGINE=FEDERATED CONNECTION='default/t_shfgrshfs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_shfgruss ENGINE=FEDERATED CONNECTION='default/t_shfgruss';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_shfrul ENGINE=FEDERATED CONNECTION='default/t_shfrul';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_shftmplshfs ENGINE=FEDERATED CONNECTION='default/t_shftmplshfs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_snd ENGINE=FEDERATED CONNECTION='default/t_snd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_srvsta ENGINE=FEDERATED CONNECTION='default/t_srvsta';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_synctapb ENGINE=FEDERATED CONNECTION='default/t_synctapb';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_syscfg ENGINE=FEDERATED CONNECTION='default/t_syscfg';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_takey ENGINE=FEDERATED CONNECTION='default/t_takey';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_tmapbbpacgr ENGINE=FEDERATED CONNECTION='default/t_tmapbbpacgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_tmprd ENGINE=FEDERATED CONNECTION='default/t_tmprd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_trgact ENGINE=FEDERATED CONNECTION='default/t_trgact';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usersent ENGINE=FEDERATED CONNECTION='default/t_usersent';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usr ENGINE=FEDERATED CONNECTION='default/t_usr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usracsgrtmpl ENGINE=FEDERATED CONNECTION='default/t_usracsgrtmpl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrcrd ENGINE=FEDERATED CONNECTION='default/t_usrcrd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrcusfld ENGINE=FEDERATED CONNECTION='default/t_usrcusfld';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrcusfldtmpl ENGINE=FEDERATED CONNECTION='default/t_usrcusfldtmpl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrgr ENGINE=FEDERATED CONNECTION='default/t_usrgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrgr_order ENGINE=FEDERATED CONNECTION='default/t_usrgr_order';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrmsksyn ENGINE=FEDERATED CONNECTION='default/t_usrmsksyn';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usroprmd ENGINE=FEDERATED CONNECTION='default/t_usroprmd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrphoto ENGINE=FEDERATED CONNECTION='default/t_usrphoto';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usrtmpl ENGINE=FEDERATED CONNECTION='default/t_usrtmpl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usr_phrase ENGINE=FEDERATED CONNECTION='default/t_usr_phrase';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_usr_rep ENGINE=FEDERATED CONNECTION='default/t_usr_rep';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_vcm_flr_map ENGINE=FEDERATED CONNECTION='default/t_vcm_flr_map';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_vipphbks ENGINE=FEDERATED CONNECTION='default/t_vipphbks';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visit ENGINE=FEDERATED CONNECTION='default/t_visit';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitacsgrmap ENGINE=FEDERATED CONNECTION='default/t_visitacsgrmap';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitcusfld ENGINE=FEDERATED CONNECTION='default/t_visitcusfld';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitfngptmpl ENGINE=FEDERATED CONNECTION='default/t_visitfngptmpl';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitfngptmplver ENGINE=FEDERATED CONNECTION='default/t_visitfngptmplver';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitorterminal ENGINE=FEDERATED CONNECTION='default/t_visitorterminal';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitorterminalacgroupmap ENGINE=FEDERATED CONNECTION='default/t_visitorterminalacgroupmap';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitorterminalregion ENGINE=FEDERATED CONNECTION='default/t_visitorterminalregion';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitorterminalregionmap ENGINE=FEDERATED CONNECTION='default/t_visitorterminalregionmap';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_visitorterms ENGINE=FEDERATED CONNECTION='default/t_visitorterms';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_wgdbz ENGINE=FEDERATED CONNECTION='default/t_wgdbz';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_wgdfmt ENGINE=FEDERATED CONNECTION='default/t_wgdfmt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_wgdled ENGINE=FEDERATED CONNECTION='default/t_wgdled';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_wgdtmpr ENGINE=FEDERATED CONNECTION='default/t_wgdtmpr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_widget ENGINE=FEDERATED CONNECTION='default/t_widget';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zn ENGINE=FEDERATED CONNECTION='default/t_zn';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znacsgr ENGINE=FEDERATED CONNECTION='default/t_znacsgr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znapb ENGINE=FEDERATED CONNECTION='default/t_znapb';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znapbusrio ENGINE=FEDERATED CONNECTION='default/t_znapbusrio';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zncrd ENGINE=FEDERATED CONNECTION='default/t_zncrd';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zndr ENGINE=FEDERATED CONNECTION='default/t_zndr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znelvt ENGINE=FEDERATED CONNECTION='default/t_znelvt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znfal ENGINE=FEDERATED CONNECTION='default/t_znfal';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znfalinpsns ENGINE=FEDERATED CONNECTION='default/t_znfalinpsns';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znflk ENGINE=FEDERATED CONNECTION='default/t_znflk';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znflrs ENGINE=FEDERATED CONNECTION='default/t_znflrs';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znful ENGINE=FEDERATED CONNECTION='default/t_znful';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zninp ENGINE=FEDERATED CONNECTION='default/t_zninp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znital ENGINE=FEDERATED CONNECTION='default/t_znital';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znlul ENGINE=FEDERATED CONNECTION='default/t_znlul';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znmst ENGINE=FEDERATED CONNECTION='default/t_znmst';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znoccp ENGINE=FEDERATED CONNECTION='default/t_znoccp';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znoccp_lstusrevt ENGINE=FEDERATED CONNECTION='default/t_znoccp_lstusrevt';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znrc ENGINE=FEDERATED CONNECTION='default/t_znrc';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zntapb ENGINE=FEDERATED CONNECTION='default/t_zntapb';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zntmapb ENGINE=FEDERATED CONNECTION='default/t_zntmapb';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zntrck ENGINE=FEDERATED CONNECTION='default/t_zntrck';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_zntrgact ENGINE=FEDERATED CONNECTION='default/t_zntrgact';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.t_znusr ENGINE=FEDERATED CONNECTION='default/t_znusr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.v_devices ENGINE=FEDERATED CONNECTION='default/v_devices';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.v_dr ENGINE=FEDERATED CONNECTION='default/v_dr';
CREATE TABLE IF NOT EXISTS biostar_x_ac_be_136.v_elvt ENGINE=FEDERATED CONNECTION='default/v_elvt';

Service Manager 설정

BioStar X Service Manager를 실행하세요. (시작 → BioStar X → BioStar X Service Manager)
화면 왼쪽 사이드바에서 DATABASE 메뉴를 클릭하세요.

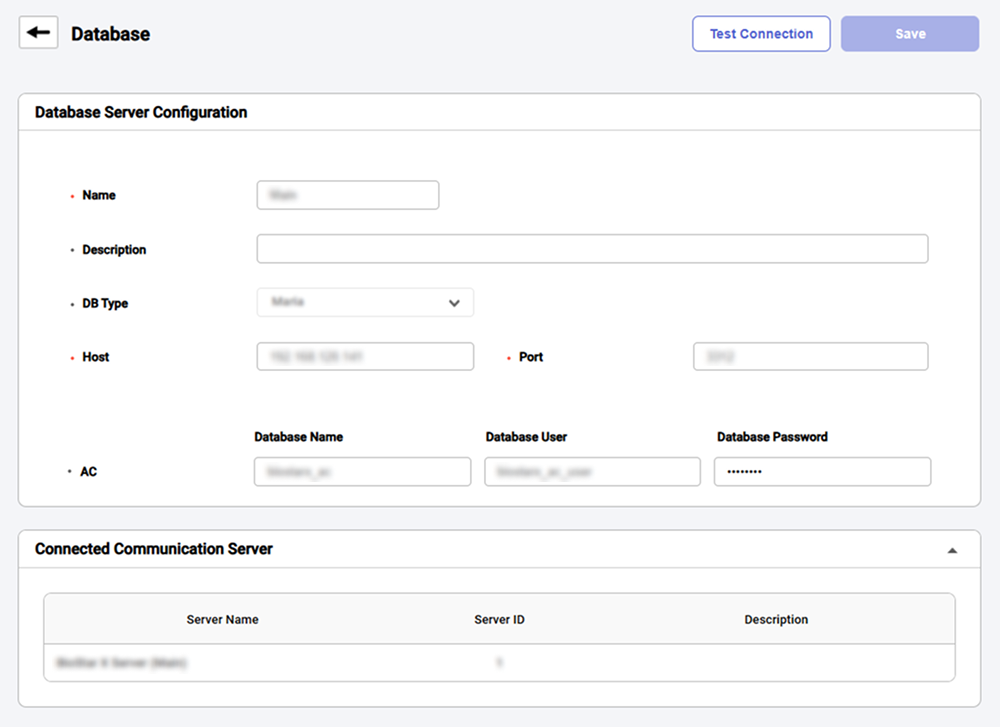

화면 오른쪽 상단의 + Add Database 버튼을 클릭하세요.
데이터베이스 추가 화면에서 각 항목을 입력하세요.
- Name: 데이터베이스 이름을 입력하세요.
- Description: 데이터베이스 설명을 입력하세요.
- DB Type: 데이터베이스 유형을 선택하세요. (Maria, MS SQL)
- Host: 데이터베이스 서버의 호스트 이름 또는 IP 주소를 입력하세요.
- Port: 데이터베이스 서버의 포트 번호를 입력하세요.
- AC / TA: AC, TA 데이터베이스의 이름, 사용자, 비밀번호를 입력하세요.
데이터베이스가 정상 연결되었는지 확인하려면 화면 오른쪽 상단의 Test Connection 버튼을 클릭하세요.
설정을 저장하려면 화면 오른쪽 상단의 Save 버튼을 클릭하세요.

SQL Server

메인 데이터베이스 권한 부여

sysadmin 권한을 가진 계정으로 메인 데이터베이스에 아래 권한을 부여하세요.

GRANT ALTER ANY LINKED SERVER TO [<MAIN DATABASE AC USER>];
GRANT ALTER ANY LOGIN TO [<MAIN DATABASE AC USER>];

Example
GRANT ALTER ANY LINKED SERVER TO [biostar_x_user];
GRANT ALTER ANY LOGIN TO [biostar_x_user];

보조 데이터베이스 권한 부여

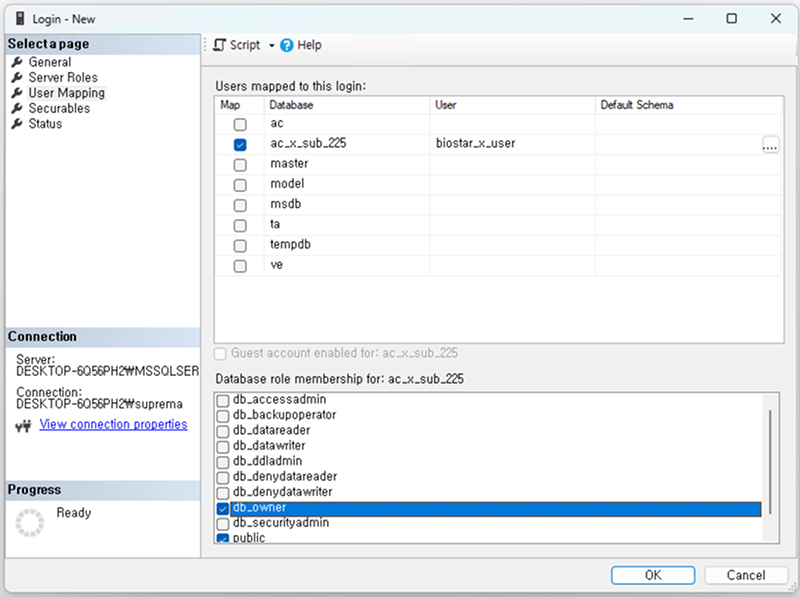

sysadmin 권한을 가진 계정으로 보조 데이터베이스에 테이블 및 사용자에 대한 User Mapping 연결이 필요합니다. 이 때 db_owner 역할 추가가 필요합니다.

추가할 데이터베이스에 아래 권한을 부여하세요.

GRANT ALTER ANY LINKED SERVER TO [<SUB DATABASE AC USER>];
GRANT ALTER ANY LOGIN TO [<SUB DATABASE AC USER>];

Example
GRANT ALTER ANY LINKED SERVER TO [biostar_x_user_sub];
GRANT ALTER ANY LOGIN TO [biostar_x_user_sub];

Service Manager 설정

BioStar X Service Manager를 통해서 보조 데이터베이스를 추가하세요.

BioStar X Service Manager를 실행하세요. (시작 → BioStar X → BioStar X Service Manager)
화면 왼쪽 사이드바에서 DATABASE 메뉴를 클릭하세요.
화면 오른쪽 상단의 + Add Database 버튼을 클릭하세요.
데이터베이스 추가 화면에서 각 항목을 입력하세요.
- Name: 데이터베이스 이름을 입력하세요.
- Description: 데이터베이스 설명을 입력하세요.
- DB Type: 데이터베이스 유형을 선택하세요. (Maria, MS SQL)
- Host: 데이터베이스 서버의 호스트 이름 또는 IP 주소를 입력하세요.
- Port: 데이터베이스 서버의 포트 번호를 입력하세요.
- AC / TA: AC, TA 데이터베이스의 이름, 사용자, 비밀번호를 입력하세요.
데이터베이스가 정상 연결되었는지 확인하려면 화면 오른쪽 상단의 Test Connection 버튼을 클릭하세요.
설정을 저장하려면 화면 오른쪽 상단의 Save 버튼을 클릭하세요.

알아두기

설정을 완료하고, 메인 데이터베이스와 보조 데이터베이스에 각각 Linked Server 설정이 자동 진행됩니다.
데이터베이스 정보를 수정할 때에도 Linked Server 설정은 자동 변경됩니다. 메인 데이터베이스를 수정할 때에는 등록되어 있는 모든 보조 데이터베이스에 Linked Server 설정이 변경된 정보로 반영됩니다. 보조 데이터베이스를 수정할 때에는 메인 데이터베이스와 해당 보조 데이터베이스만 변경된 정보로 반영됩니다.

Linked Temp Table 쿼리문 생성

메인 데이터베이스에서 아래 쿼리 실행해서 보조 데이터베이스에 생성할 Linked Temp Table 쿼리문을 생성하세요.

USE [<AC Schema>];
GO
DECLARE @LinkedServer  sysname = N'default';
DECLARE @SourceSchema  sysname = N'dbo';
DECLARE @TargetSchema  sysname = N'dbo';

SELECT
    'IF OBJECT_ID(N''' + QUOTENAME(@TargetSchema,'') + '.' + QUOTENAME(t.name,'') + ''', ''SN'') IS NOT NULL '
  + 'DROP SYNONYM ' + QUOTENAME(@TargetSchema) + '.' + QUOTENAME(t.name) + ';'
  + 'CREATE SYNONYM ' + QUOTENAME(@TargetSchema) + '.' + QUOTENAME(t.name)
  + ' FOR ' + QUOTENAME(@LinkedServer) + '.' + QUOTENAME(DB_NAME()) + '.' + QUOTENAME(s.name) + '.' + QUOTENAME(t.name) + ';'
  AS recreate_synonym_sql
FROM sys.tables AS t
JOIN sys.schemas AS s
  ON s.schema_id = t.schema_id
WHERE s.name = @SourceSchema
  AND t.is_ms_shipped = 0
  AND t.name NOT LIKE 't_lg[0-9][0-9][0-9][0-9][0-9][0-9]'
  AND t.name NOT LIKE 't_almevt[0-9][0-9][0-9][0-9][0-9][0-9]'
  AND t.name NOT LIKE 't_lgalmtrstrc[0-9][0-9][0-9][0-9][0-9][0-9]'
ORDER BY t.name;

Example
-- 예시
USE [main_ac_x_215];
GO
DECLARE @LinkedServer  sysname = N'default';  -- Linked Server name set in the sub DB
DECLARE @SourceSchema  sysname = N'dbo';      -- Schema to target in the main DB
DECLARE @TargetSchema  sysname = N'dbo';      -- Schema to create synonyms in the sub DB (reflected in the output string)

SELECT
    'IF OBJECT_ID(N''' + QUOTENAME(@TargetSchema,'') + '.' + QUOTENAME(t.name,'') + ''', ''SN'') IS NOT NULL '
  + 'DROP SYNONYM ' + QUOTENAME(@TargetSchema) + '.' + QUOTENAME(t.name) + ';'
  + 'CREATE SYNONYM ' + QUOTENAME(@TargetSchema) + '.' + QUOTENAME(t.name)
  + ' FOR ' + QUOTENAME(@LinkedServer) + '.' + QUOTENAME(DB_NAME()) + '.' + QUOTENAME(s.name) + '.' + QUOTENAME(t.name) + ';'
  AS recreate_synonym_sql
FROM sys.tables AS t
JOIN sys.schemas AS s
  ON s.schema_id = t.schema_id
WHERE s.name = @SourceSchema
  AND t.is_ms_shipped = 0
  AND t.name NOT LIKE 't_lg[0-9][0-9][0-9][0-9][0-9][0-9]'
  AND t.name NOT LIKE 't_almevt[0-9][0-9][0-9][0-9][0-9][0-9]'
  AND t.name NOT LIKE 't_lgalmtrstrc[0-9][0-9][0-9][0-9][0-9][0-9]'
ORDER BY t.name;

알아두기

위 쿼리문을 통해 생성되는 CREATE 문 예시입니다.

CREATE TABLE

IF OBJECT_ID(N'[dbo].[T_ACSGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGR];CREATE SYNONYM [dbo].[T_ACSGR] FOR [default].[main_ac_x_215].[dbo].[T_ACSGR];
IF OBJECT_ID(N'[dbo].[T_ACSGRLVLS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGRLVLS];CREATE SYNONYM [dbo].[T_ACSGRLVLS] FOR [default].[main_ac_x_215].[dbo].[T_ACSGRLVLS];
IF OBJECT_ID(N'[dbo].[T_ACSGRSENT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGRSENT];CREATE SYNONYM [dbo].[T_ACSGRSENT] FOR [default].[main_ac_x_215].[dbo].[T_ACSGRSENT];
IF OBJECT_ID(N'[dbo].[T_ACSGRUSS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGRUSS];CREATE SYNONYM [dbo].[T_ACSGRUSS] FOR [default].[main_ac_x_215].[dbo].[T_ACSGRUSS];
IF OBJECT_ID(N'[dbo].[T_ACSLVL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSLVL];CREATE SYNONYM [dbo].[T_ACSLVL] FOR [default].[main_ac_x_215].[dbo].[T_ACSLVL];
IF OBJECT_ID(N'[dbo].[T_ACSLVLITM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSLVLITM];CREATE SYNONYM [dbo].[T_ACSLVLITM] FOR [default].[main_ac_x_215].[dbo].[T_ACSLVLITM];
IF OBJECT_ID(N'[dbo].[T_ACSLVLITMDRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSLVLITMDRS];CREATE SYNONYM [dbo].[T_ACSLVLITMDRS] FOR [default].[main_ac_x_215].[dbo].[T_ACSLVLITMDRS];
IF OBJECT_ID(N'[dbo].[T_ACSLVLITMS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSLVLITMS];CREATE SYNONYM [dbo].[T_ACSLVLITMS] FOR [default].[main_ac_x_215].[dbo].[T_ACSLVLITMS];
IF OBJECT_ID(N'[dbo].[T_ACSLVLSENT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSLVLSENT];CREATE SYNONYM [dbo].[T_ACSLVLSENT] FOR [default].[main_ac_x_215].[dbo].[T_ACSLVLSENT];
IF OBJECT_ID(N'[dbo].[T_AD_COLUMN]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AD_COLUMN];CREATE SYNONYM [dbo].[T_AD_COLUMN] FOR [default].[main_ac_x_215].[dbo].[T_AD_COLUMN];
IF OBJECT_ID(N'[dbo].[T_AD_GROUP_FILTER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AD_GROUP_FILTER];CREATE SYNONYM [dbo].[T_AD_GROUP_FILTER] FOR [default].[main_ac_x_215].[dbo].[T_AD_GROUP_FILTER];
IF OBJECT_ID(N'[dbo].[T_AD_GROUP_FILTER_SETTING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AD_GROUP_FILTER_SETTING];CREATE SYNONYM [dbo].[T_AD_GROUP_FILTER_SETTING] FOR [default].[main_ac_x_215].[dbo].[T_AD_GROUP_FILTER_SETTING];
IF OBJECT_ID(N'[dbo].[T_AD_USRMAPPING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AD_USRMAPPING];CREATE SYNONYM [dbo].[T_AD_USRMAPPING] FOR [default].[main_ac_x_215].[dbo].[T_AD_USRMAPPING];
IF OBJECT_ID(N'[dbo].[T_ADSERVER_SETTING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ADSERVER_SETTING];CREATE SYNONYM [dbo].[T_ADSERVER_SETTING] FOR [default].[main_ac_x_215].[dbo].[T_ADSERVER_SETTING];
IF OBJECT_ID(N'[dbo].[T_ADT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ADT];CREATE SYNONYM [dbo].[T_ADT] FOR [default].[main_ac_x_215].[dbo].[T_ADT];
IF OBJECT_ID(N'[dbo].[T_ADVUSRCRD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ADVUSRCRD];CREATE SYNONYM [dbo].[T_ADVUSRCRD] FOR [default].[main_ac_x_215].[dbo].[T_ADVUSRCRD];
IF OBJECT_ID(N'[dbo].[T_ADVUSRGRP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ADVUSRGRP];CREATE SYNONYM [dbo].[T_ADVUSRGRP] FOR [default].[main_ac_x_215].[dbo].[T_ADVUSRGRP];
IF OBJECT_ID(N'[dbo].[T_ALMACT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMACT];CREATE SYNONYM [dbo].[T_ALMACT] FOR [default].[main_ac_x_215].[dbo].[T_ALMACT];
IF OBJECT_ID(N'[dbo].[T_ALMDR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMDR];CREATE SYNONYM [dbo].[T_ALMDR] FOR [default].[main_ac_x_215].[dbo].[T_ALMDR];
IF OBJECT_ID(N'[dbo].[T_ALMEML]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMEML];CREATE SYNONYM [dbo].[T_ALMEML] FOR [default].[main_ac_x_215].[dbo].[T_ALMEML];
IF OBJECT_ID(N'[dbo].[T_ALMMSG]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMMSG];CREATE SYNONYM [dbo].[T_ALMMSG] FOR [default].[main_ac_x_215].[dbo].[T_ALMMSG];
IF OBJECT_ID(N'[dbo].[T_ALMSET]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMSET];CREATE SYNONYM [dbo].[T_ALMSET] FOR [default].[main_ac_x_215].[dbo].[T_ALMSET];
IF OBJECT_ID(N'[dbo].[T_ALMSETEVT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMSETEVT];CREATE SYNONYM [dbo].[T_ALMSETEVT] FOR [default].[main_ac_x_215].[dbo].[T_ALMSETEVT];
IF OBJECT_ID(N'[dbo].[T_ALMSETOBJ]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMSETOBJ];CREATE SYNONYM [dbo].[T_ALMSETOBJ] FOR [default].[main_ac_x_215].[dbo].[T_ALMSETOBJ];
IF OBJECT_ID(N'[dbo].[T_ALMSMTPSET]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMSMTPSET];CREATE SYNONYM [dbo].[T_ALMSMTPSET] FOR [default].[main_ac_x_215].[dbo].[T_ALMSMTPSET];
IF OBJECT_ID(N'[dbo].[T_ALMSNDSET]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ALMSNDSET];CREATE SYNONYM [dbo].[T_ALMSNDSET] FOR [default].[main_ac_x_215].[dbo].[T_ALMSNDSET];
IF OBJECT_ID(N'[dbo].[T_APBBPACGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_APBBPACGR];CREATE SYNONYM [dbo].[T_APBBPACGR] FOR [default].[main_ac_x_215].[dbo].[T_APBBPACGR];
IF OBJECT_ID(N'[dbo].[T_AREA_INFO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AREA_INFO];CREATE SYNONYM [dbo].[T_AREA_INFO] FOR [default].[main_ac_x_215].[dbo].[T_AREA_INFO];
IF OBJECT_ID(N'[dbo].[T_ATMSYNDEVGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ATMSYNDEVGRS];CREATE SYNONYM [dbo].[T_ATMSYNDEVGRS] FOR [default].[main_ac_x_215].[dbo].[T_ATMSYNDEVGRS];
IF OBJECT_ID(N'[dbo].[T_ATMSYNDEVS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ATMSYNDEVS];CREATE SYNONYM [dbo].[T_ATMSYNDEVS] FOR [default].[main_ac_x_215].[dbo].[T_ATMSYNDEVS];
IF OBJECT_ID(N'[dbo].[T_AUDIT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AUDIT];CREATE SYNONYM [dbo].[T_AUDIT] FOR [default].[main_ac_x_215].[dbo].[T_AUDIT];
IF OBJECT_ID(N'[dbo].[T_AUTHGRP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_AUTHGRP];CREATE SYNONYM [dbo].[T_AUTHGRP] FOR [default].[main_ac_x_215].[dbo].[T_AUTHGRP];
IF OBJECT_ID(N'[dbo].[T_BLKL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_BLKL];CREATE SYNONYM [dbo].[T_BLKL] FOR [default].[main_ac_x_215].[dbo].[T_BLKL];
IF OBJECT_ID(N'[dbo].[T_BZOUP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_BZOUP];CREATE SYNONYM [dbo].[T_BZOUP] FOR [default].[main_ac_x_215].[dbo].[T_BZOUP];
IF OBJECT_ID(N'[dbo].[T_CRD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRD];CREATE SYNONYM [dbo].[T_CRD] FOR [default].[main_ac_x_215].[dbo].[T_CRD];
IF OBJECT_ID(N'[dbo].[T_CRDIDASM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDIDASM];CREATE SYNONYM [dbo].[T_CRDIDASM] FOR [default].[main_ac_x_215].[dbo].[T_CRDIDASM];
IF OBJECT_ID(N'[dbo].[T_CRDISSHIS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDISSHIS];CREATE SYNONYM [dbo].[T_CRDISSHIS] FOR [default].[main_ac_x_215].[dbo].[T_CRDISSHIS];
IF OBJECT_ID(N'[dbo].[T_CRDLAY]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDLAY];CREATE SYNONYM [dbo].[T_CRDLAY] FOR [default].[main_ac_x_215].[dbo].[T_CRDLAY];
IF OBJECT_ID(N'[dbo].[T_CRDLAY_FELICA]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDLAY_FELICA];CREATE SYNONYM [dbo].[T_CRDLAY_FELICA] FOR [default].[main_ac_x_215].[dbo].[T_CRDLAY_FELICA];
IF OBJECT_ID(N'[dbo].[T_CRDMOACHIS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDMOACHIS];CREATE SYNONYM [dbo].[T_CRDMOACHIS] FOR [default].[main_ac_x_215].[dbo].[T_CRDMOACHIS];
IF OBJECT_ID(N'[dbo].[T_CRDT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDT];CREATE SYNONYM [dbo].[T_CRDT] FOR [default].[main_ac_x_215].[dbo].[T_CRDT];
IF OBJECT_ID(N'[dbo].[T_CRDTBIN]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDTBIN];CREATE SYNONYM [dbo].[T_CRDTBIN] FOR [default].[main_ac_x_215].[dbo].[T_CRDTBIN];
IF OBJECT_ID(N'[dbo].[T_CRDTYP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CRDTYP];CREATE SYNONYM [dbo].[T_CRDTYP] FOR [default].[main_ac_x_215].[dbo].[T_CRDTYP];
IF OBJECT_ID(N'[dbo].[T_CUSFLDTYP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CUSFLDTYP];CREATE SYNONYM [dbo].[T_CUSFLDTYP] FOR [default].[main_ac_x_215].[dbo].[T_CUSFLDTYP];
IF OBJECT_ID(N'[dbo].[T_CUSFLDTYP_VST]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_CUSFLDTYP_VST];CREATE SYNONYM [dbo].[T_CUSFLDTYP_VST] FOR [default].[main_ac_x_215].[dbo].[T_CUSFLDTYP_VST];
IF OBJECT_ID(N'[dbo].[T_DASHBOARD_SETTING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DASHBOARD_SETTING];CREATE SYNONYM [dbo].[T_DASHBOARD_SETTING] FOR [default].[main_ac_x_215].[dbo].[T_DASHBOARD_SETTING];
IF OBJECT_ID(N'[dbo].[T_DBLMDACSGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DBLMDACSGRS];CREATE SYNONYM [dbo].[T_DBLMDACSGRS] FOR [default].[main_ac_x_215].[dbo].[T_DBLMDACSGRS];
IF OBJECT_ID(N'[dbo].[T_DBLMDFLRGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DBLMDFLRGRS];CREATE SYNONYM [dbo].[T_DBLMDFLRGRS] FOR [default].[main_ac_x_215].[dbo].[T_DBLMDFLRGRS];
IF OBJECT_ID(N'[dbo].[T_DEV]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEV];CREATE SYNONYM [dbo].[T_DEV] FOR [default].[main_ac_x_215].[dbo].[T_DEV];
IF OBJECT_ID(N'[dbo].[T_DEV_FLLR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEV_FLLR];CREATE SYNONYM [dbo].[T_DEV_FLLR] FOR [default].[main_ac_x_215].[dbo].[T_DEV_FLLR];
IF OBJECT_ID(N'[dbo].[T_DEV3RDPRNT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEV3RDPRNT];CREATE SYNONYM [dbo].[T_DEV3RDPRNT] FOR [default].[main_ac_x_215].[dbo].[T_DEV3RDPRNT];
IF OBJECT_ID(N'[dbo].[T_DEVCAP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVCAP];CREATE SYNONYM [dbo].[T_DEVCAP] FOR [default].[main_ac_x_215].[dbo].[T_DEVCAP];
IF OBJECT_ID(N'[dbo].[T_DEVCAPS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVCAPS];CREATE SYNONYM [dbo].[T_DEVCAPS] FOR [default].[main_ac_x_215].[dbo].[T_DEVCAPS];
IF OBJECT_ID(N'[dbo].[T_DEVCAPSFRDEV]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVCAPSFRDEV];CREATE SYNONYM [dbo].[T_DEVCAPSFRDEV] FOR [default].[main_ac_x_215].[dbo].[T_DEVCAPSFRDEV];
IF OBJECT_ID(N'[dbo].[T_DEVFORCECMD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVFORCECMD];CREATE SYNONYM [dbo].[T_DEVFORCECMD] FOR [default].[main_ac_x_215].[dbo].[T_DEVFORCECMD];
IF OBJECT_ID(N'[dbo].[T_DEVGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVGR];CREATE SYNONYM [dbo].[T_DEVGR] FOR [default].[main_ac_x_215].[dbo].[T_DEVGR];
IF OBJECT_ID(N'[dbo].[T_DEVINACTIVE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVINACTIVE];CREATE SYNONYM [dbo].[T_DEVINACTIVE] FOR [default].[main_ac_x_215].[dbo].[T_DEVINACTIVE];
IF OBJECT_ID(N'[dbo].[T_DEVOPRMD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVOPRMD];CREATE SYNONYM [dbo].[T_DEVOPRMD] FOR [default].[main_ac_x_215].[dbo].[T_DEVOPRMD];
IF OBJECT_ID(N'[dbo].[T_DEVOPRT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVOPRT];CREATE SYNONYM [dbo].[T_DEVOPRT] FOR [default].[main_ac_x_215].[dbo].[T_DEVOPRT];
IF OBJECT_ID(N'[dbo].[T_DEVRS4CHNS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVRS4CHNS];CREATE SYNONYM [dbo].[T_DEVRS4CHNS] FOR [default].[main_ac_x_215].[dbo].[T_DEVRS4CHNS];
IF OBJECT_ID(N'[dbo].[T_DEVTHM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVTHM];CREATE SYNONYM [dbo].[T_DEVTHM] FOR [default].[main_ac_x_215].[dbo].[T_DEVTHM];
IF OBJECT_ID(N'[dbo].[T_DEVTPOSDP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVTPOSDP];CREATE SYNONYM [dbo].[T_DEVTPOSDP] FOR [default].[main_ac_x_215].[dbo].[T_DEVTPOSDP];
IF OBJECT_ID(N'[dbo].[T_DEVTYP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVTYP];CREATE SYNONYM [dbo].[T_DEVTYP] FOR [default].[main_ac_x_215].[dbo].[T_DEVTYP];
IF OBJECT_ID(N'[dbo].[T_DEVWGD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DEVWGD];CREATE SYNONYM [dbo].[T_DEVWGD] FOR [default].[main_ac_x_215].[dbo].[T_DEVWGD];
IF OBJECT_ID(N'[dbo].[T_DR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DR];CREATE SYNONYM [dbo].[T_DR] FOR [default].[main_ac_x_215].[dbo].[T_DR];
IF OBJECT_ID(N'[dbo].[T_DR_FLR_MAP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DR_FLR_MAP];CREATE SYNONYM [dbo].[T_DR_FLR_MAP] FOR [default].[main_ac_x_215].[dbo].[T_DR_FLR_MAP];
IF OBJECT_ID(N'[dbo].[T_DRGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DRGR];CREATE SYNONYM [dbo].[T_DRGR] FOR [default].[main_ac_x_215].[dbo].[T_DRGR];
IF OBJECT_ID(N'[dbo].[T_DRTRGACT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DRTRGACT];CREATE SYNONYM [dbo].[T_DRTRGACT] FOR [default].[main_ac_x_215].[dbo].[T_DRTRGACT];
IF OBJECT_ID(N'[dbo].[T_DRZN]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DRZN];CREATE SYNONYM [dbo].[T_DRZN] FOR [default].[main_ac_x_215].[dbo].[T_DRZN];
IF OBJECT_ID(N'[dbo].[T_DST]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_DST];CREATE SYNONYM [dbo].[T_DST] FOR [default].[main_ac_x_215].[dbo].[T_DST];
IF OBJECT_ID(N'[dbo].[T_ELVT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ELVT];CREATE SYNONYM [dbo].[T_ELVT] FOR [default].[main_ac_x_215].[dbo].[T_ELVT];
IF OBJECT_ID(N'[dbo].[T_ELVTDEVS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ELVTDEVS];CREATE SYNONYM [dbo].[T_ELVTDEVS] FOR [default].[main_ac_x_215].[dbo].[T_ELVTDEVS];
IF OBJECT_ID(N'[dbo].[T_ELVTGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ELVTGR];CREATE SYNONYM [dbo].[T_ELVTGR] FOR [default].[main_ac_x_215].[dbo].[T_ELVTGR];
IF OBJECT_ID(N'[dbo].[T_ELVTTRGACT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ELVTTRGACT];CREATE SYNONYM [dbo].[T_ELVTTRGACT] FOR [default].[main_ac_x_215].[dbo].[T_ELVTTRGACT];
IF OBJECT_ID(N'[dbo].[T_EMAIL_CONTENT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EMAIL_CONTENT];CREATE SYNONYM [dbo].[T_EMAIL_CONTENT] FOR [default].[main_ac_x_215].[dbo].[T_EMAIL_CONTENT];
IF OBJECT_ID(N'[dbo].[T_EMLST]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EMLST];CREATE SYNONYM [dbo].[T_EMLST] FOR [default].[main_ac_x_215].[dbo].[T_EMLST];
IF OBJECT_ID(N'[dbo].[T_ENCMGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ENCMGR];CREATE SYNONYM [dbo].[T_ENCMGR] FOR [default].[main_ac_x_215].[dbo].[T_ENCMGR];
IF OBJECT_ID(N'[dbo].[T_ERLDEV]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ERLDEV];CREATE SYNONYM [dbo].[T_ERLDEV] FOR [default].[main_ac_x_215].[dbo].[T_ERLDEV];
IF OBJECT_ID(N'[dbo].[T_ETRDEVS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ETRDEVS];CREATE SYNONYM [dbo].[T_ETRDEVS] FOR [default].[main_ac_x_215].[dbo].[T_ETRDEVS];
IF OBJECT_ID(N'[dbo].[T_EVTFLT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTFLT];CREATE SYNONYM [dbo].[T_EVTFLT] FOR [default].[main_ac_x_215].[dbo].[T_EVTFLT];
IF OBJECT_ID(N'[dbo].[T_EVTPRIO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTPRIO];CREATE SYNONYM [dbo].[T_EVTPRIO] FOR [default].[main_ac_x_215].[dbo].[T_EVTPRIO];
IF OBJECT_ID(N'[dbo].[T_EVTPRIOALTDEVS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTPRIOALTDEVS];CREATE SYNONYM [dbo].[T_EVTPRIOALTDEVS] FOR [default].[main_ac_x_215].[dbo].[T_EVTPRIOALTDEVS];
IF OBJECT_ID(N'[dbo].[T_EVTPRIOSND]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTPRIOSND];CREATE SYNONYM [dbo].[T_EVTPRIOSND] FOR [default].[main_ac_x_215].[dbo].[T_EVTPRIOSND];
IF OBJECT_ID(N'[dbo].[T_EVTSPC]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTSPC];CREATE SYNONYM [dbo].[T_EVTSPC] FOR [default].[main_ac_x_215].[dbo].[T_EVTSPC];
IF OBJECT_ID(N'[dbo].[T_EVTTYP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTTYP];CREATE SYNONYM [dbo].[T_EVTTYP] FOR [default].[main_ac_x_215].[dbo].[T_EVTTYP];
IF OBJECT_ID(N'[dbo].[T_EVTTYP_GROUP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EVTTYP_GROUP];CREATE SYNONYM [dbo].[T_EVTTYP_GROUP] FOR [default].[main_ac_x_215].[dbo].[T_EVTTYP_GROUP];
IF OBJECT_ID(N'[dbo].[T_EXDEVS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EXDEVS];CREATE SYNONYM [dbo].[T_EXDEVS] FOR [default].[main_ac_x_215].[dbo].[T_EXDEVS];
IF OBJECT_ID(N'[dbo].[T_EXTSYS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_EXTSYS];CREATE SYNONYM [dbo].[T_EXTSYS] FOR [default].[main_ac_x_215].[dbo].[T_EXTSYS];
IF OBJECT_ID(N'[dbo].[T_FAILSYNCACSGRUPDATE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FAILSYNCACSGRUPDATE];CREATE SYNONYM [dbo].[T_FAILSYNCACSGRUPDATE] FOR [default].[main_ac_x_215].[dbo].[T_FAILSYNCACSGRUPDATE];
IF OBJECT_ID(N'[dbo].[T_FAILSYNCACSLVLUPDATE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FAILSYNCACSLVLUPDATE];CREATE SYNONYM [dbo].[T_FAILSYNCACSLVLUPDATE] FOR [default].[main_ac_x_215].[dbo].[T_FAILSYNCACSLVLUPDATE];
IF OBJECT_ID(N'[dbo].[T_FAILSYNCFLRLVLUPDATE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FAILSYNCFLRLVLUPDATE];CREATE SYNONYM [dbo].[T_FAILSYNCFLRLVLUPDATE] FOR [default].[main_ac_x_215].[dbo].[T_FAILSYNCFLRLVLUPDATE];
IF OBJECT_ID(N'[dbo].[T_FAILSYNCUSRUPDATE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FAILSYNCUSRUPDATE];CREATE SYNONYM [dbo].[T_FAILSYNCUSRUPDATE] FOR [default].[main_ac_x_215].[dbo].[T_FAILSYNCUSRUPDATE];
IF OBJECT_ID(N'[dbo].[T_FALDRGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FALDRGRS];CREATE SYNONYM [dbo].[T_FALDRGRS] FOR [default].[main_ac_x_215].[dbo].[T_FALDRGRS];
IF OBJECT_ID(N'[dbo].[T_FALDRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FALDRS];CREATE SYNONYM [dbo].[T_FALDRS] FOR [default].[main_ac_x_215].[dbo].[T_FALDRS];
IF OBJECT_ID(N'[dbo].[T_FALELVTS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FALELVTS];CREATE SYNONYM [dbo].[T_FALELVTS] FOR [default].[main_ac_x_215].[dbo].[T_FALELVTS];
IF OBJECT_ID(N'[dbo].[T_FCLTY_INFO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FCLTY_INFO];CREATE SYNONYM [dbo].[T_FCLTY_INFO] FOR [default].[main_ac_x_215].[dbo].[T_FCLTY_INFO];
IF OBJECT_ID(N'[dbo].[T_FCTMPL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FCTMPL];CREATE SYNONYM [dbo].[T_FCTMPL] FOR [default].[main_ac_x_215].[dbo].[T_FCTMPL];
IF OBJECT_ID(N'[dbo].[T_FLKBPACGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLKBPACGR];CREATE SYNONYM [dbo].[T_FLKBPACGR] FOR [default].[main_ac_x_215].[dbo].[T_FLKBPACGR];
IF OBJECT_ID(N'[dbo].[T_FLKDRGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLKDRGRS];CREATE SYNONYM [dbo].[T_FLKDRGRS] FOR [default].[main_ac_x_215].[dbo].[T_FLKDRGRS];
IF OBJECT_ID(N'[dbo].[T_FLKDRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLKDRS];CREATE SYNONYM [dbo].[T_FLKDRS] FOR [default].[main_ac_x_215].[dbo].[T_FLKDRS];
IF OBJECT_ID(N'[dbo].[T_FLKELVTS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLKELVTS];CREATE SYNONYM [dbo].[T_FLKELVTS] FOR [default].[main_ac_x_215].[dbo].[T_FLKELVTS];
IF OBJECT_ID(N'[dbo].[T_FLR_INFO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLR_INFO];CREATE SYNONYM [dbo].[T_FLR_INFO] FOR [default].[main_ac_x_215].[dbo].[T_FLR_INFO];
IF OBJECT_ID(N'[dbo].[T_FLRGRLVLS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRGRLVLS];CREATE SYNONYM [dbo].[T_FLRGRLVLS] FOR [default].[main_ac_x_215].[dbo].[T_FLRGRLVLS];
IF OBJECT_ID(N'[dbo].[T_FLRLVL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRLVL];CREATE SYNONYM [dbo].[T_FLRLVL] FOR [default].[main_ac_x_215].[dbo].[T_FLRLVL];
IF OBJECT_ID(N'[dbo].[T_FLRLVLITM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRLVLITM];CREATE SYNONYM [dbo].[T_FLRLVLITM] FOR [default].[main_ac_x_215].[dbo].[T_FLRLVLITM];
IF OBJECT_ID(N'[dbo].[T_FLRLVLITMELVTS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRLVLITMELVTS];CREATE SYNONYM [dbo].[T_FLRLVLITMELVTS] FOR [default].[main_ac_x_215].[dbo].[T_FLRLVLITMELVTS];
IF OBJECT_ID(N'[dbo].[T_FLRLVLITMS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRLVLITMS];CREATE SYNONYM [dbo].[T_FLRLVLITMS] FOR [default].[main_ac_x_215].[dbo].[T_FLRLVLITMS];
IF OBJECT_ID(N'[dbo].[T_FLRLVLSENT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRLVLSENT];CREATE SYNONYM [dbo].[T_FLRLVLSENT] FOR [default].[main_ac_x_215].[dbo].[T_FLRLVLSENT];
IF OBJECT_ID(N'[dbo].[T_FLRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FLRS];CREATE SYNONYM [dbo].[T_FLRS] FOR [default].[main_ac_x_215].[dbo].[T_FLRS];
IF OBJECT_ID(N'[dbo].[T_FNGPTMPL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FNGPTMPL];CREATE SYNONYM [dbo].[T_FNGPTMPL] FOR [default].[main_ac_x_215].[dbo].[T_FNGPTMPL];
IF OBJECT_ID(N'[dbo].[T_FNGPTMPLVER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FNGPTMPLVER];CREATE SYNONYM [dbo].[T_FNGPTMPLVER] FOR [default].[main_ac_x_215].[dbo].[T_FNGPTMPLVER];
IF OBJECT_ID(N'[dbo].[T_FULACGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FULACGRS];CREATE SYNONYM [dbo].[T_FULACGRS] FOR [default].[main_ac_x_215].[dbo].[T_FULACGRS];
IF OBJECT_ID(N'[dbo].[T_FULDRGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FULDRGRS];CREATE SYNONYM [dbo].[T_FULDRGRS] FOR [default].[main_ac_x_215].[dbo].[T_FULDRGRS];
IF OBJECT_ID(N'[dbo].[T_FULDRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FULDRS];CREATE SYNONYM [dbo].[T_FULDRS] FOR [default].[main_ac_x_215].[dbo].[T_FULDRS];
IF OBJECT_ID(N'[dbo].[T_FULELVTS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_FULELVTS];CREATE SYNONYM [dbo].[T_FULELVTS] FOR [default].[main_ac_x_215].[dbo].[T_FULELVTS];
IF OBJECT_ID(N'[dbo].[T_GIS_DOOR_INFO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GIS_DOOR_INFO];CREATE SYNONYM [dbo].[T_GIS_DOOR_INFO] FOR [default].[main_ac_x_215].[dbo].[T_GIS_DOOR_INFO];
IF OBJECT_ID(N'[dbo].[T_GIS_VCM_INFO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GIS_VCM_INFO];CREATE SYNONYM [dbo].[T_GIS_VCM_INFO] FOR [default].[main_ac_x_215].[dbo].[T_GIS_VCM_INFO];
IF OBJECT_ID(N'[dbo].[T_GRM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GRM];CREATE SYNONYM [dbo].[T_GRM] FOR [default].[main_ac_x_215].[dbo].[T_GRM];
IF OBJECT_ID(N'[dbo].[T_GRMEL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GRMEL];CREATE SYNONYM [dbo].[T_GRMEL] FOR [default].[main_ac_x_215].[dbo].[T_GRMEL];
IF OBJECT_ID(N'[dbo].[T_GRMELTYP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GRMELTYP];CREATE SYNONYM [dbo].[T_GRMELTYP] FOR [default].[main_ac_x_215].[dbo].[T_GRMELTYP];
IF OBJECT_ID(N'[dbo].[T_GRMELVID]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GRMELVID];CREATE SYNONYM [dbo].[T_GRMELVID] FOR [default].[main_ac_x_215].[dbo].[T_GRMELVID];
IF OBJECT_ID(N'[dbo].[T_GRMGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_GRMGR];CREATE SYNONYM [dbo].[T_GRMGR] FOR [default].[main_ac_x_215].[dbo].[T_GRMGR];
IF OBJECT_ID(N'[dbo].[T_HOL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_HOL];CREATE SYNONYM [dbo].[T_HOL] FOR [default].[main_ac_x_215].[dbo].[T_HOL];
IF OBJECT_ID(N'[dbo].[T_HOLGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_HOLGR];CREATE SYNONYM [dbo].[T_HOLGR] FOR [default].[main_ac_x_215].[dbo].[T_HOLGR];
IF OBJECT_ID(N'[dbo].[T_HOLSCH]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_HOLSCH];CREATE SYNONYM [dbo].[T_HOLSCH] FOR [default].[main_ac_x_215].[dbo].[T_HOLSCH];
IF OBJECT_ID(N'[dbo].[T_HOLSCHTMPRDS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_HOLSCHTMPRDS];CREATE SYNONYM [dbo].[T_HOLSCHTMPRDS] FOR [default].[main_ac_x_215].[dbo].[T_HOLSCHTMPRDS];
IF OBJECT_ID(N'[dbo].[T_IMGLGJB]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_IMGLGJB];CREATE SYNONYM [dbo].[T_IMGLGJB] FOR [default].[main_ac_x_215].[dbo].[T_IMGLGJB];
IF OBJECT_ID(N'[dbo].[T_INPCFG]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_INPCFG];CREATE SYNONYM [dbo].[T_INPCFG] FOR [default].[main_ac_x_215].[dbo].[T_INPCFG];
IF OBJECT_ID(N'[dbo].[T_INPCFGEX]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_INPCFGEX];CREATE SYNONYM [dbo].[T_INPCFGEX] FOR [default].[main_ac_x_215].[dbo].[T_INPCFGEX];
IF OBJECT_ID(N'[dbo].[T_LEDOUP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LEDOUP];CREATE SYNONYM [dbo].[T_LEDOUP] FOR [default].[main_ac_x_215].[dbo].[T_LEDOUP];
IF OBJECT_ID(N'[dbo].[T_LGSERVEREVT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LGSERVEREVT];CREATE SYNONYM [dbo].[T_LGSERVEREVT] FOR [default].[main_ac_x_215].[dbo].[T_LGSERVEREVT];
IF OBJECT_ID(N'[dbo].[T_LGTBIDX]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LGTBIDX];CREATE SYNONYM [dbo].[T_LGTBIDX] FOR [default].[main_ac_x_215].[dbo].[T_LGTBIDX];
IF OBJECT_ID(N'[dbo].[T_LGUPDHIS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LGUPDHIS];CREATE SYNONYM [dbo].[T_LGUPDHIS] FOR [default].[main_ac_x_215].[dbo].[T_LGUPDHIS];
IF OBJECT_ID(N'[dbo].[T_LICENSES]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LICENSES];CREATE SYNONYM [dbo].[T_LICENSES] FOR [default].[main_ac_x_215].[dbo].[T_LICENSES];
IF OBJECT_ID(N'[dbo].[T_LSTLOG]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LSTLOG];CREATE SYNONYM [dbo].[T_LSTLOG] FOR [default].[main_ac_x_215].[dbo].[T_LSTLOG];
IF OBJECT_ID(N'[dbo].[T_LSTSYNSTA]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LSTSYNSTA];CREATE SYNONYM [dbo].[T_LSTSYNSTA] FOR [default].[main_ac_x_215].[dbo].[T_LSTSYNSTA];
IF OBJECT_ID(N'[dbo].[T_LSTUSRAUTH]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LSTUSRAUTH];CREATE SYNONYM [dbo].[T_LSTUSRAUTH] FOR [default].[main_ac_x_215].[dbo].[T_LSTUSRAUTH];
IF OBJECT_ID(N'[dbo].[T_LULACGRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_LULACGRS];CREATE SYNONYM [dbo].[T_LULACGRS] FOR [default].[main_ac_x_215].[dbo].[T_LULACGRS];
IF OBJECT_ID(N'[dbo].[T_MBLCRD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_MBLCRD];CREATE SYNONYM [dbo].[T_MBLCRD] FOR [default].[main_ac_x_215].[dbo].[T_MBLCRD];
IF OBJECT_ID(N'[dbo].[T_MOBILE_CREDENTIAL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_MOBILE_CREDENTIAL];CREATE SYNONYM [dbo].[T_MOBILE_CREDENTIAL] FOR [default].[main_ac_x_215].[dbo].[T_MOBILE_CREDENTIAL];
IF OBJECT_ID(N'[dbo].[T_MOBILE_PICTURE_HASH]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_MOBILE_PICTURE_HASH];CREATE SYNONYM [dbo].[T_MOBILE_PICTURE_HASH] FOR [default].[main_ac_x_215].[dbo].[T_MOBILE_PICTURE_HASH];
IF OBJECT_ID(N'[dbo].[T_MXDT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_MXDT];CREATE SYNONYM [dbo].[T_MXDT] FOR [default].[main_ac_x_215].[dbo].[T_MXDT];
IF OBJECT_ID(N'[dbo].[T_NESTED_DEV]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NESTED_DEV];CREATE SYNONYM [dbo].[T_NESTED_DEV] FOR [default].[main_ac_x_215].[dbo].[T_NESTED_DEV];
IF OBJECT_ID(N'[dbo].[T_NESTED_DEVGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NESTED_DEVGR];CREATE SYNONYM [dbo].[T_NESTED_DEVGR] FOR [default].[main_ac_x_215].[dbo].[T_NESTED_DEVGR];
IF OBJECT_ID(N'[dbo].[T_NESTED_DRGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NESTED_DRGR];CREATE SYNONYM [dbo].[T_NESTED_DRGR] FOR [default].[main_ac_x_215].[dbo].[T_NESTED_DRGR];
IF OBJECT_ID(N'[dbo].[T_NESTED_ELVTGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NESTED_ELVTGR];CREATE SYNONYM [dbo].[T_NESTED_ELVTGR] FOR [default].[main_ac_x_215].[dbo].[T_NESTED_ELVTGR];
IF OBJECT_ID(N'[dbo].[T_NESTED_GRMGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NESTED_GRMGR];CREATE SYNONYM [dbo].[T_NESTED_GRMGR] FOR [default].[main_ac_x_215].[dbo].[T_NESTED_GRMGR];
IF OBJECT_ID(N'[dbo].[T_NESTED_USRGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NESTED_USRGR];CREATE SYNONYM [dbo].[T_NESTED_USRGR] FOR [default].[main_ac_x_215].[dbo].[T_NESTED_USRGR];
IF OBJECT_ID(N'[dbo].[T_NTC]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_NTC];CREATE SYNONYM [dbo].[T_NTC] FOR [default].[main_ac_x_215].[dbo].[T_NTC];
IF OBJECT_ID(N'[dbo].[T_OCCPBPACGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_OCCPBPACGR];CREATE SYNONYM [dbo].[T_OCCPBPACGR] FOR [default].[main_ac_x_215].[dbo].[T_OCCPBPACGR];
IF OBJECT_ID(N'[dbo].[T_OUPSIG]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_OUPSIG];CREATE SYNONYM [dbo].[T_OUPSIG] FOR [default].[main_ac_x_215].[dbo].[T_OUPSIG];
IF OBJECT_ID(N'[dbo].[T_PERM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_PERM];CREATE SYNONYM [dbo].[T_PERM] FOR [default].[main_ac_x_215].[dbo].[T_PERM];
IF OBJECT_ID(N'[dbo].[T_POLYGON_INFO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_POLYGON_INFO];CREATE SYNONYM [dbo].[T_POLYGON_INFO] FOR [default].[main_ac_x_215].[dbo].[T_POLYGON_INFO];
IF OBJECT_ID(N'[dbo].[T_PRF]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_PRF];CREATE SYNONYM [dbo].[T_PRF] FOR [default].[main_ac_x_215].[dbo].[T_PRF];
IF OBJECT_ID(N'[dbo].[T_QCACT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_QCACT];CREATE SYNONYM [dbo].[T_QCACT] FOR [default].[main_ac_x_215].[dbo].[T_QCACT];
IF OBJECT_ID(N'[dbo].[T_QCACTALM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_QCACTALM];CREATE SYNONYM [dbo].[T_QCACTALM] FOR [default].[main_ac_x_215].[dbo].[T_QCACTALM];
IF OBJECT_ID(N'[dbo].[T_QCACTPERM]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_QCACTPERM];CREATE SYNONYM [dbo].[T_QCACTPERM] FOR [default].[main_ac_x_215].[dbo].[T_QCACTPERM];
IF OBJECT_ID(N'[dbo].[T_REPORT_EXPORT_SETTING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_EXPORT_SETTING];CREATE SYNONYM [dbo].[T_REPORT_EXPORT_SETTING] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_EXPORT_SETTING];
IF OBJECT_ID(N'[dbo].[T_REPORT_PRINT_SETTING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_PRINT_SETTING];CREATE SYNONYM [dbo].[T_REPORT_PRINT_SETTING] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_PRINT_SETTING];
IF OBJECT_ID(N'[dbo].[T_REPORT_SCHEDULES]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_SCHEDULES];CREATE SYNONYM [dbo].[T_REPORT_SCHEDULES] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_SCHEDULES];
IF OBJECT_ID(N'[dbo].[T_REPORT_SETTING]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_SETTING];CREATE SYNONYM [dbo].[T_REPORT_SETTING] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_SETTING];
IF OBJECT_ID(N'[dbo].[T_REPORT_TEMPLATE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_TEMPLATE];CREATE SYNONYM [dbo].[T_REPORT_TEMPLATE] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_TEMPLATE];
IF OBJECT_ID(N'[dbo].[T_REPORT_TEMPLATE_GROUP_FILTER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_TEMPLATE_GROUP_FILTER];CREATE SYNONYM [dbo].[T_REPORT_TEMPLATE_GROUP_FILTER] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_TEMPLATE_GROUP_FILTER];
IF OBJECT_ID(N'[dbo].[T_REPORT_TEMPLATE_USER_FILTER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORT_TEMPLATE_USER_FILTER];CREATE SYNONYM [dbo].[T_REPORT_TEMPLATE_USER_FILTER] FOR [default].[main_ac_x_215].[dbo].[T_REPORT_TEMPLATE_USER_FILTER];
IF OBJECT_ID(N'[dbo].[T_REPORTTEMPID]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORTTEMPID];CREATE SYNONYM [dbo].[T_REPORTTEMPID] FOR [default].[main_ac_x_215].[dbo].[T_REPORTTEMPID];
IF OBJECT_ID(N'[dbo].[T_REPORTTEMPID_HEADER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_REPORTTEMPID_HEADER];CREATE SYNONYM [dbo].[T_REPORTTEMPID_HEADER] FOR [default].[main_ac_x_215].[dbo].[T_REPORTTEMPID_HEADER];
IF OBJECT_ID(N'[dbo].[T_RMJB]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_RMJB];CREATE SYNONYM [dbo].[T_RMJB] FOR [default].[main_ac_x_215].[dbo].[T_RMJB];
IF OBJECT_ID(N'[dbo].[T_RMJBEV]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_RMJBEV];CREATE SYNONYM [dbo].[T_RMJBEV] FOR [default].[main_ac_x_215].[dbo].[T_RMJBEV];
IF OBJECT_ID(N'[dbo].[T_RMJBZN]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_RMJBZN];CREATE SYNONYM [dbo].[T_RMJBZN] FOR [default].[main_ac_x_215].[dbo].[T_RMJBZN];
IF OBJECT_ID(N'[dbo].[T_SCH]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SCH];CREATE SYNONYM [dbo].[T_SCH] FOR [default].[main_ac_x_215].[dbo].[T_SCH];
IF OBJECT_ID(N'[dbo].[T_SCHDL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SCHDL];CREATE SYNONYM [dbo].[T_SCHDL] FOR [default].[main_ac_x_215].[dbo].[T_SCHDL];
IF OBJECT_ID(N'[dbo].[T_SCHDLTMPRDS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SCHDLTMPRDS];CREATE SYNONYM [dbo].[T_SCHDLTMPRDS] FOR [default].[main_ac_x_215].[dbo].[T_SCHDLTMPRDS];
IF OBJECT_ID(N'[dbo].[T_SHF]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SHF];CREATE SYNONYM [dbo].[T_SHF] FOR [default].[main_ac_x_215].[dbo].[T_SHF];
IF OBJECT_ID(N'[dbo].[T_SHFGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SHFGR];CREATE SYNONYM [dbo].[T_SHFGR] FOR [default].[main_ac_x_215].[dbo].[T_SHFGR];
IF OBJECT_ID(N'[dbo].[T_SHFGRSHFS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SHFGRSHFS];CREATE SYNONYM [dbo].[T_SHFGRSHFS] FOR [default].[main_ac_x_215].[dbo].[T_SHFGRSHFS];
IF OBJECT_ID(N'[dbo].[T_SHFGRUSS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SHFGRUSS];CREATE SYNONYM [dbo].[T_SHFGRUSS] FOR [default].[main_ac_x_215].[dbo].[T_SHFGRUSS];
IF OBJECT_ID(N'[dbo].[T_SHFRUL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SHFRUL];CREATE SYNONYM [dbo].[T_SHFRUL] FOR [default].[main_ac_x_215].[dbo].[T_SHFRUL];
IF OBJECT_ID(N'[dbo].[T_SHFTMPLSHFS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SHFTMPLSHFS];CREATE SYNONYM [dbo].[T_SHFTMPLSHFS] FOR [default].[main_ac_x_215].[dbo].[T_SHFTMPLSHFS];
IF OBJECT_ID(N'[dbo].[T_SND]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SND];CREATE SYNONYM [dbo].[T_SND] FOR [default].[main_ac_x_215].[dbo].[T_SND];
IF OBJECT_ID(N'[dbo].[T_SRVSTA]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SRVSTA];CREATE SYNONYM [dbo].[T_SRVSTA] FOR [default].[main_ac_x_215].[dbo].[T_SRVSTA];
IF OBJECT_ID(N'[dbo].[T_SYNCTAPB]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SYNCTAPB];CREATE SYNONYM [dbo].[T_SYNCTAPB] FOR [default].[main_ac_x_215].[dbo].[T_SYNCTAPB];
IF OBJECT_ID(N'[dbo].[T_SYSCFG]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_SYSCFG];CREATE SYNONYM [dbo].[T_SYSCFG] FOR [default].[main_ac_x_215].[dbo].[T_SYSCFG];
IF OBJECT_ID(N'[dbo].[T_TAKEY]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_TAKEY];CREATE SYNONYM [dbo].[T_TAKEY] FOR [default].[main_ac_x_215].[dbo].[T_TAKEY];
IF OBJECT_ID(N'[dbo].[T_TMAPBBPACGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_TMAPBBPACGR];CREATE SYNONYM [dbo].[T_TMAPBBPACGR] FOR [default].[main_ac_x_215].[dbo].[T_TMAPBBPACGR];
IF OBJECT_ID(N'[dbo].[T_TMPRD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_TMPRD];CREATE SYNONYM [dbo].[T_TMPRD] FOR [default].[main_ac_x_215].[dbo].[T_TMPRD];
IF OBJECT_ID(N'[dbo].[T_TRGACT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_TRGACT];CREATE SYNONYM [dbo].[T_TRGACT] FOR [default].[main_ac_x_215].[dbo].[T_TRGACT];
IF OBJECT_ID(N'[dbo].[T_USERSENT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USERSENT];CREATE SYNONYM [dbo].[T_USERSENT] FOR [default].[main_ac_x_215].[dbo].[T_USERSENT];
IF OBJECT_ID(N'[dbo].[T_USR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USR];CREATE SYNONYM [dbo].[T_USR] FOR [default].[main_ac_x_215].[dbo].[T_USR];
IF OBJECT_ID(N'[dbo].[T_USR_PHRASE]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USR_PHRASE];CREATE SYNONYM [dbo].[T_USR_PHRASE] FOR [default].[main_ac_x_215].[dbo].[T_USR_PHRASE];
IF OBJECT_ID(N'[dbo].[T_USRACSGRTMPL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRACSGRTMPL];CREATE SYNONYM [dbo].[T_USRACSGRTMPL] FOR [default].[main_ac_x_215].[dbo].[T_USRACSGRTMPL];
IF OBJECT_ID(N'[dbo].[T_USRCRD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRCRD];CREATE SYNONYM [dbo].[T_USRCRD] FOR [default].[main_ac_x_215].[dbo].[T_USRCRD];
IF OBJECT_ID(N'[dbo].[T_USRCUSFLD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRCUSFLD];CREATE SYNONYM [dbo].[T_USRCUSFLD] FOR [default].[main_ac_x_215].[dbo].[T_USRCUSFLD];
IF OBJECT_ID(N'[dbo].[T_USRCUSFLDTMPL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRCUSFLDTMPL];CREATE SYNONYM [dbo].[T_USRCUSFLDTMPL] FOR [default].[main_ac_x_215].[dbo].[T_USRCUSFLDTMPL];
IF OBJECT_ID(N'[dbo].[T_USRGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRGR];CREATE SYNONYM [dbo].[T_USRGR] FOR [default].[main_ac_x_215].[dbo].[T_USRGR];
IF OBJECT_ID(N'[dbo].[T_USRGR_ORDER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRGR_ORDER];CREATE SYNONYM [dbo].[T_USRGR_ORDER] FOR [default].[main_ac_x_215].[dbo].[T_USRGR_ORDER];
IF OBJECT_ID(N'[dbo].[T_USRMSKSYN]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRMSKSYN];CREATE SYNONYM [dbo].[T_USRMSKSYN] FOR [default].[main_ac_x_215].[dbo].[T_USRMSKSYN];
IF OBJECT_ID(N'[dbo].[T_USROPRMD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USROPRMD];CREATE SYNONYM [dbo].[T_USROPRMD] FOR [default].[main_ac_x_215].[dbo].[T_USROPRMD];
IF OBJECT_ID(N'[dbo].[T_USRPHOTO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRPHOTO];CREATE SYNONYM [dbo].[T_USRPHOTO] FOR [default].[main_ac_x_215].[dbo].[T_USRPHOTO];
IF OBJECT_ID(N'[dbo].[T_USRTMPL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_USRTMPL];CREATE SYNONYM [dbo].[T_USRTMPL] FOR [default].[main_ac_x_215].[dbo].[T_USRTMPL];
IF OBJECT_ID(N'[dbo].[T_VCM_FLR_MAP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VCM_FLR_MAP];CREATE SYNONYM [dbo].[T_VCM_FLR_MAP] FOR [default].[main_ac_x_215].[dbo].[T_VCM_FLR_MAP];
IF OBJECT_ID(N'[dbo].[T_VDEV]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VDEV];CREATE SYNONYM [dbo].[T_VDEV] FOR [default].[main_ac_x_215].[dbo].[T_VDEV];
IF OBJECT_ID(N'[dbo].[T_VIPPHBKS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VIPPHBKS];CREATE SYNONYM [dbo].[T_VIPPHBKS] FOR [default].[main_ac_x_215].[dbo].[T_VIPPHBKS];
IF OBJECT_ID(N'[dbo].[T_VISIT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISIT];CREATE SYNONYM [dbo].[T_VISIT] FOR [default].[main_ac_x_215].[dbo].[T_VISIT];
IF OBJECT_ID(N'[dbo].[T_VISITACSGRMAP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITACSGRMAP];CREATE SYNONYM [dbo].[T_VISITACSGRMAP] FOR [default].[main_ac_x_215].[dbo].[T_VISITACSGRMAP];
IF OBJECT_ID(N'[dbo].[T_VISITCUSFLD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITCUSFLD];CREATE SYNONYM [dbo].[T_VISITCUSFLD] FOR [default].[main_ac_x_215].[dbo].[T_VISITCUSFLD];
IF OBJECT_ID(N'[dbo].[T_VISITFNGPTMPL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITFNGPTMPL];CREATE SYNONYM [dbo].[T_VISITFNGPTMPL] FOR [default].[main_ac_x_215].[dbo].[T_VISITFNGPTMPL];
IF OBJECT_ID(N'[dbo].[T_VISITFNGPTMPLVER]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITFNGPTMPLVER];CREATE SYNONYM [dbo].[T_VISITFNGPTMPLVER] FOR [default].[main_ac_x_215].[dbo].[T_VISITFNGPTMPLVER];
IF OBJECT_ID(N'[dbo].[T_VISITORTERMINAL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITORTERMINAL];CREATE SYNONYM [dbo].[T_VISITORTERMINAL] FOR [default].[main_ac_x_215].[dbo].[T_VISITORTERMINAL];
IF OBJECT_ID(N'[dbo].[T_VISITORTERMINALACGROUPMAP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITORTERMINALACGROUPMAP];CREATE SYNONYM [dbo].[T_VISITORTERMINALACGROUPMAP] FOR [default].[main_ac_x_215].[dbo].[T_VISITORTERMINALACGROUPMAP];
IF OBJECT_ID(N'[dbo].[T_VISITORTERMINALREGION]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITORTERMINALREGION];CREATE SYNONYM [dbo].[T_VISITORTERMINALREGION] FOR [default].[main_ac_x_215].[dbo].[T_VISITORTERMINALREGION];
IF OBJECT_ID(N'[dbo].[T_VISITORTERMINALREGIONMAP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITORTERMINALREGIONMAP];CREATE SYNONYM [dbo].[T_VISITORTERMINALREGIONMAP] FOR [default].[main_ac_x_215].[dbo].[T_VISITORTERMINALREGIONMAP];
IF OBJECT_ID(N'[dbo].[T_VISITORTERMS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_VISITORTERMS];CREATE SYNONYM [dbo].[T_VISITORTERMS] FOR [default].[main_ac_x_215].[dbo].[T_VISITORTERMS];
IF OBJECT_ID(N'[dbo].[T_WGDBZ]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_WGDBZ];CREATE SYNONYM [dbo].[T_WGDBZ] FOR [default].[main_ac_x_215].[dbo].[T_WGDBZ];
IF OBJECT_ID(N'[dbo].[T_WGDFMT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_WGDFMT];CREATE SYNONYM [dbo].[T_WGDFMT] FOR [default].[main_ac_x_215].[dbo].[T_WGDFMT];
IF OBJECT_ID(N'[dbo].[T_WGDLED]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_WGDLED];CREATE SYNONYM [dbo].[T_WGDLED] FOR [default].[main_ac_x_215].[dbo].[T_WGDLED];
IF OBJECT_ID(N'[dbo].[T_WGDTMPR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_WGDTMPR];CREATE SYNONYM [dbo].[T_WGDTMPR] FOR [default].[main_ac_x_215].[dbo].[T_WGDTMPR];
IF OBJECT_ID(N'[dbo].[T_WIDGET]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_WIDGET];CREATE SYNONYM [dbo].[T_WIDGET] FOR [default].[main_ac_x_215].[dbo].[T_WIDGET];
IF OBJECT_ID(N'[dbo].[T_ZN]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZN];CREATE SYNONYM [dbo].[T_ZN] FOR [default].[main_ac_x_215].[dbo].[T_ZN];
IF OBJECT_ID(N'[dbo].[T_ZNACSGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNACSGR];CREATE SYNONYM [dbo].[T_ZNACSGR] FOR [default].[main_ac_x_215].[dbo].[T_ZNACSGR];
IF OBJECT_ID(N'[dbo].[T_ZNAPB]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNAPB];CREATE SYNONYM [dbo].[T_ZNAPB] FOR [default].[main_ac_x_215].[dbo].[T_ZNAPB];
IF OBJECT_ID(N'[dbo].[T_ZNAPBUSRIO]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNAPBUSRIO];CREATE SYNONYM [dbo].[T_ZNAPBUSRIO] FOR [default].[main_ac_x_215].[dbo].[T_ZNAPBUSRIO];
IF OBJECT_ID(N'[dbo].[T_ZNCRD]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNCRD];CREATE SYNONYM [dbo].[T_ZNCRD] FOR [default].[main_ac_x_215].[dbo].[T_ZNCRD];
IF OBJECT_ID(N'[dbo].[T_ZNDR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNDR];CREATE SYNONYM [dbo].[T_ZNDR] FOR [default].[main_ac_x_215].[dbo].[T_ZNDR];
IF OBJECT_ID(N'[dbo].[T_ZNELVT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNELVT];CREATE SYNONYM [dbo].[T_ZNELVT] FOR [default].[main_ac_x_215].[dbo].[T_ZNELVT];
IF OBJECT_ID(N'[dbo].[T_ZNFAL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNFAL];CREATE SYNONYM [dbo].[T_ZNFAL] FOR [default].[main_ac_x_215].[dbo].[T_ZNFAL];
IF OBJECT_ID(N'[dbo].[T_ZNFALINPSNS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNFALINPSNS];CREATE SYNONYM [dbo].[T_ZNFALINPSNS] FOR [default].[main_ac_x_215].[dbo].[T_ZNFALINPSNS];
IF OBJECT_ID(N'[dbo].[T_ZNFLK]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNFLK];CREATE SYNONYM [dbo].[T_ZNFLK] FOR [default].[main_ac_x_215].[dbo].[T_ZNFLK];
IF OBJECT_ID(N'[dbo].[T_ZNFLRS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNFLRS];CREATE SYNONYM [dbo].[T_ZNFLRS] FOR [default].[main_ac_x_215].[dbo].[T_ZNFLRS];
IF OBJECT_ID(N'[dbo].[T_ZNFUL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNFUL];CREATE SYNONYM [dbo].[T_ZNFUL] FOR [default].[main_ac_x_215].[dbo].[T_ZNFUL];
IF OBJECT_ID(N'[dbo].[T_ZNINP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNINP];CREATE SYNONYM [dbo].[T_ZNINP] FOR [default].[main_ac_x_215].[dbo].[T_ZNINP];
IF OBJECT_ID(N'[dbo].[T_ZNITAL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNITAL];CREATE SYNONYM [dbo].[T_ZNITAL] FOR [default].[main_ac_x_215].[dbo].[T_ZNITAL];
IF OBJECT_ID(N'[dbo].[T_ZNLUL]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNLUL];CREATE SYNONYM [dbo].[T_ZNLUL] FOR [default].[main_ac_x_215].[dbo].[T_ZNLUL];
IF OBJECT_ID(N'[dbo].[T_ZNMST]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNMST];CREATE SYNONYM [dbo].[T_ZNMST] FOR [default].[main_ac_x_215].[dbo].[T_ZNMST];
IF OBJECT_ID(N'[dbo].[T_ZNOCCP]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNOCCP];CREATE SYNONYM [dbo].[T_ZNOCCP] FOR [default].[main_ac_x_215].[dbo].[T_ZNOCCP];
IF OBJECT_ID(N'[dbo].[T_ZNOCCP_LSTUSREVT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNOCCP_LSTUSREVT];CREATE SYNONYM [dbo].[T_ZNOCCP_LSTUSREVT] FOR [default].[main_ac_x_215].[dbo].[T_ZNOCCP_LSTUSREVT];
IF OBJECT_ID(N'[dbo].[T_ZNRC]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNRC];CREATE SYNONYM [dbo].[T_ZNRC] FOR [default].[main_ac_x_215].[dbo].[T_ZNRC];
IF OBJECT_ID(N'[dbo].[T_ZNRCHIS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNRCHIS];CREATE SYNONYM [dbo].[T_ZNRCHIS] FOR [default].[main_ac_x_215].[dbo].[T_ZNRCHIS];
IF OBJECT_ID(N'[dbo].[T_ZNRCTRCK]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNRCTRCK];CREATE SYNONYM [dbo].[T_ZNRCTRCK] FOR [default].[main_ac_x_215].[dbo].[T_ZNRCTRCK];
IF OBJECT_ID(N'[dbo].[T_ZNTAPB]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNTAPB];CREATE SYNONYM [dbo].[T_ZNTAPB] FOR [default].[main_ac_x_215].[dbo].[T_ZNTAPB];
IF OBJECT_ID(N'[dbo].[T_ZNTMAPB]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNTMAPB];CREATE SYNONYM [dbo].[T_ZNTMAPB] FOR [default].[main_ac_x_215].[dbo].[T_ZNTMAPB];
IF OBJECT_ID(N'[dbo].[T_ZNTRCK]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNTRCK];CREATE SYNONYM [dbo].[T_ZNTRCK] FOR [default].[main_ac_x_215].[dbo].[T_ZNTRCK];
IF OBJECT_ID(N'[dbo].[T_ZNTRGACT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNTRGACT];CREATE SYNONYM [dbo].[T_ZNTRGACT] FOR [default].[main_ac_x_215].[dbo].[T_ZNTRGACT];
IF OBJECT_ID(N'[dbo].[T_ZNUSR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ZNUSR];CREATE SYNONYM [dbo].[T_ZNUSR] FOR [default].[main_ac_x_215].[dbo].[T_ZNUSR];
IF OBJECT_ID(N'[dbo].[TEMP_ACSGRUSR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[TEMP_ACSGRUSR];CREATE SYNONYM [dbo].[TEMP_ACSGRUSR] FOR [default].[main_ac_x_215].[dbo].[TEMP_ACSGRUSR];
IF OBJECT_ID(N'[dbo].[TEMP_DOUBLEAUTHUSR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[TEMP_DOUBLEAUTHUSR];CREATE SYNONYM [dbo].[TEMP_DOUBLEAUTHUSR] FOR [default].[main_ac_x_215].[dbo].[TEMP_DOUBLEAUTHUSR];
IF OBJECT_ID(N'[dbo].[TEMP_OPERATOR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[TEMP_OPERATOR];CREATE SYNONYM [dbo].[TEMP_OPERATOR] FOR [default].[main_ac_x_215].[dbo].[TEMP_OPERATOR];

보조 데이터베이스에 쿼리문 실행

앞서 생성된 CREATE SYNONYM 쿼리를 전체 복사하세요. 추가할 보조 데이터베이스 서버로 접속해서 아래와 같이 쿼리를 작성하고 실행하세요. 보조 데이터베이스의 AC 스키마 안에 Synonyms(동의어)에 저장됩니다.

use [<Sub DB AC Database>];

IF OBJECT_ID(N'[dbo].[T_ACSGR]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGR];CREATE SYNONYM [dbo].[T_ACSGR] FOR [default].[main_ac_x_215].[dbo].[T_ACSGR];
IF OBJECT_ID(N'[dbo].[T_ACSGRLVLS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGRLVLS];CREATE SYNONYM [dbo].[T_ACSGRLVLS] FOR [default].[main_ac_x_215].[dbo].[T_ACSGRLVLS];
IF OBJECT_ID(N'[dbo].[T_ACSGRSENT]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGRSENT];CREATE SYNONYM [dbo].[T_ACSGRSENT] FOR [default].[main_ac_x_215].[dbo].[T_ACSGRSENT];
IF OBJECT_ID(N'[dbo].[T_ACSGRUSS]', 'SN') IS NOT NULL DROP SYNONYM [dbo].[T_ACSGRUSS];CREATE SYNONYM [dbo].[T_ACSGRUSS] FOR [default].[main_ac_x_215].[dbo].[T_ACSGRUSS];
...

시작하기 전에​

등록 방법​

IP 주소로 통신 설정​

보조 데이터베이스 추가​

MariaDB​

메인 데이터베이스​

보조 데이터베이스​

FederatedX 사용 여부 확인​

서버 별칭 등록​

테이블 link 설정​

Service Manager 설정​

SQL Server​

메인 데이터베이스 권한 부여​

보조 데이터베이스 권한 부여​

Service Manager 설정​

Linked Temp Table 쿼리문 생성​

보조 데이터베이스에 쿼리문 실행​

시작하기 전에

등록 방법

IP 주소로 통신 설정

보조 데이터베이스 추가

MariaDB

메인 데이터베이스

보조 데이터베이스

FederatedX 사용 여부 확인

서버 별칭 등록

테이블 link 설정

Service Manager 설정

SQL Server

메인 데이터베이스 권한 부여

보조 데이터베이스 권한 부여

Service Manager 설정

Linked Temp Table 쿼리문 생성

보조 데이터베이스에 쿼리문 실행
